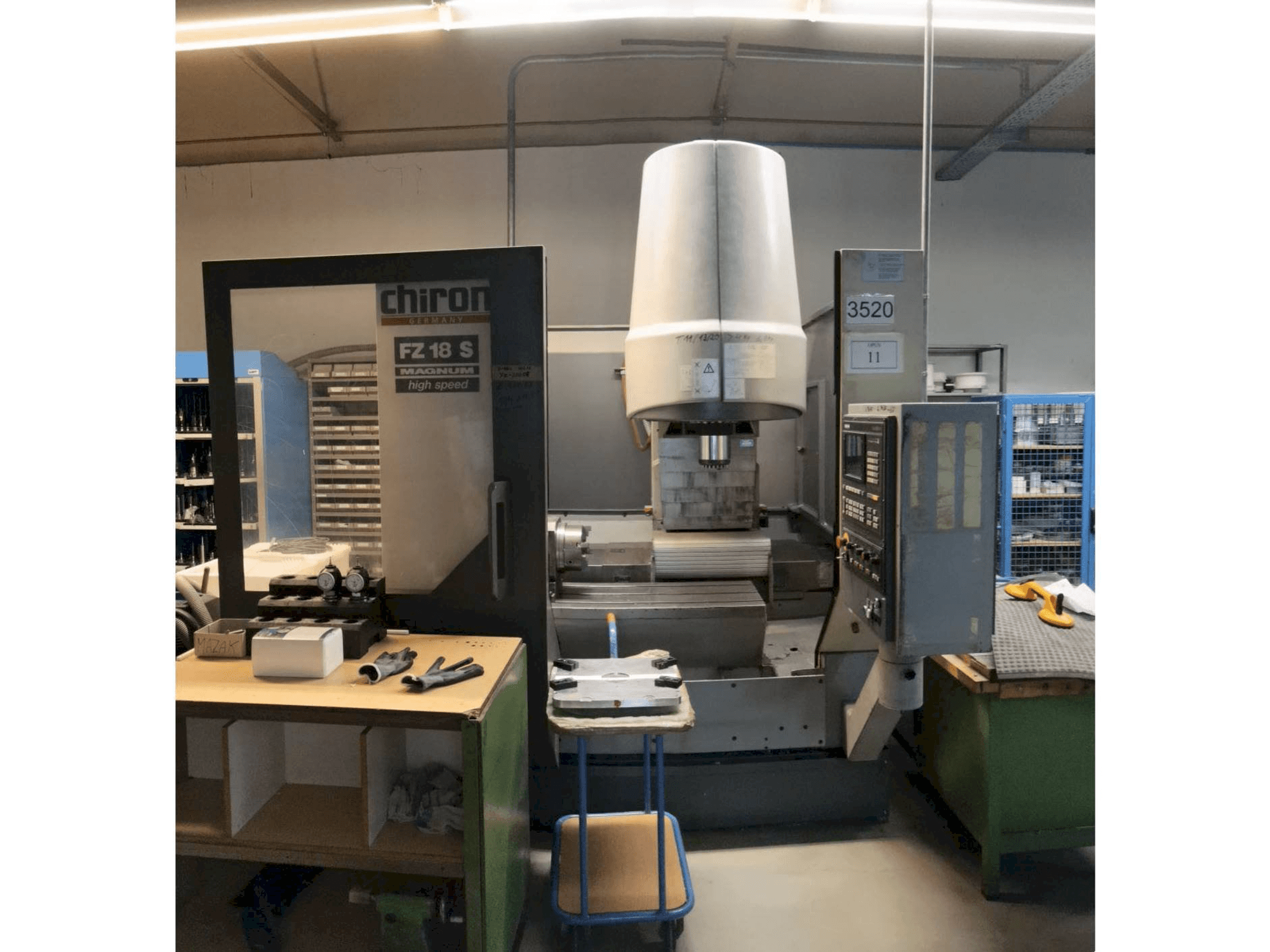

Chiron FZ18 Vertical Machining center

This Chiron FZ18 Vertical Machining center was manufactured in the year 1995 in Germany. It is equipped with a SIEMENS SINUMERIK 810M control unit and has 4 axis.

Overview

brand: CHIRON
year: 1995
MODEL: FZ18
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ18

General Data

Machine weight: 5540 kg

Control Unit

Model: Sinumerik 810M
Brand: SIEMENS

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 1150 mm
Outer width: 460 mm
Table load: 1200 kg

Tools

Type of tool holder: SK40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle center - stand (throw): 435 mm
- - Distance spindle nose - table: 190 - 612 mm
- - Spindle in the front. Bearing: 70mm
- - Spindle arrangement: vertical
- - Max. Torque: 60 nm
- - Particularly suitable for: centering, drilling, reaming, threading, milling, spinning

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
