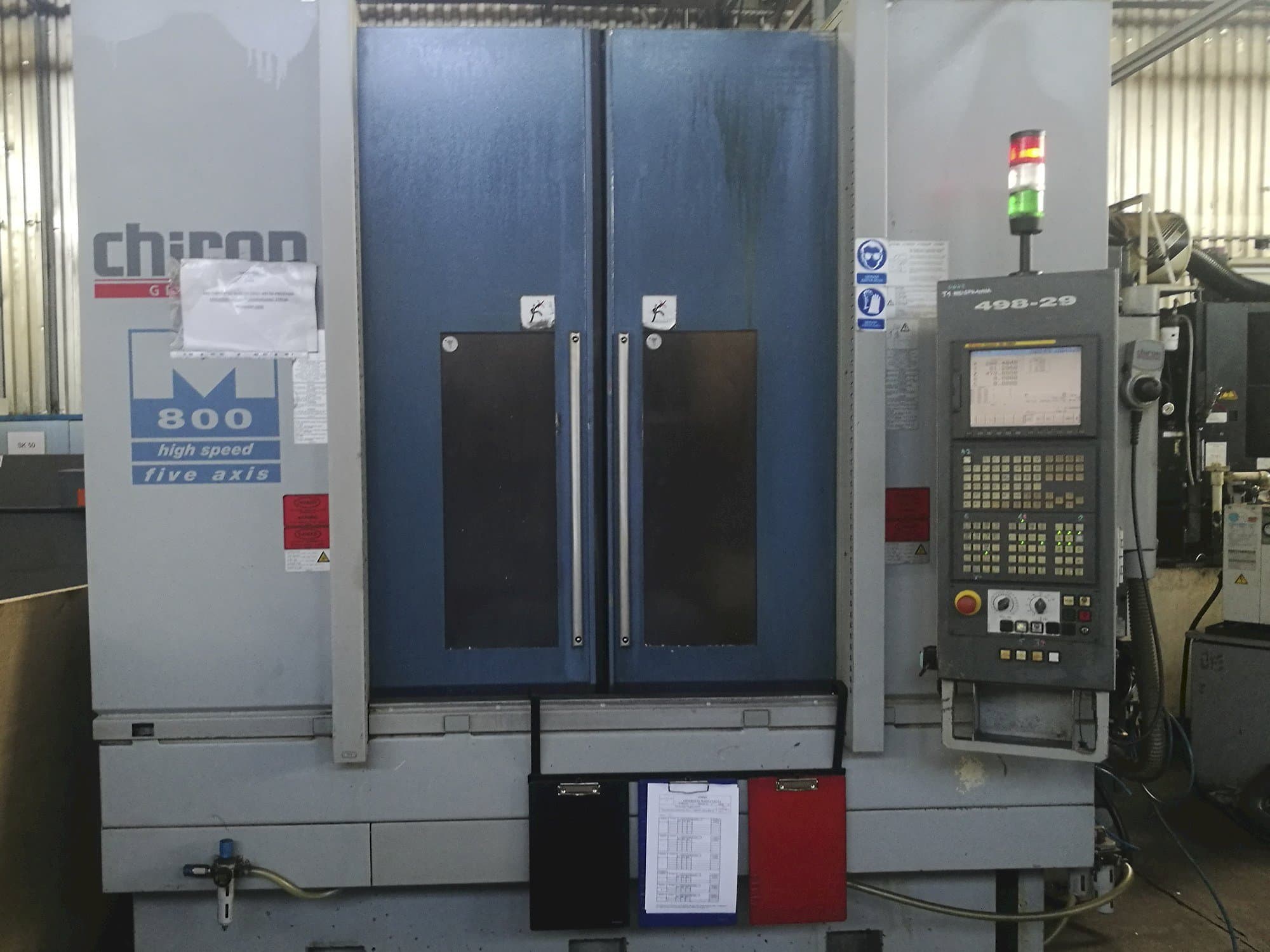

CHIRON MILL 800 Machining Center (Vertical)

This CHIRON MILL 800 Machining Center (Vertical) was manufactured in the year 2006 in Germany. In the year 2016, the machine was completely mechanically and partially electronically retrofitted by CHIRON. It has a production record of 1000 working hours since then. Equipped with a Fanuc 18i-MB5 control unit, this 5-axis machine includes 2 Peseler ZAS 280 rotar-titling table units of 280mm diameter and a toolholder HSK63.

Overview

brand: CHIRON
year: 2006
MODEL: MILL 800
production hours: 1000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - CHIRON MILL 800

General Data

Measurements width: 4500 mm
Measurements depth: 4500 mm
Measurements height: 3300 mm
Machine weight: 7800 kg

Control Unit

Model: 18i-MB5
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 rpm 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 410 mm

Workpiece

Workpiece weight: 200 kg

Table

Outer length: 2 MM

Tools

Slots in storage: 40

Media

Main electronic connection: 400 V 50 Hz
Power consumption: 36 kVA

Additional Equipment

- ROTAR-TILTING TABLE UNIT (2 PIECES OF 280 MM DIAMETER, BRAND AND MODEL PEISELER ZAS 280)
- TOOLHOLDER HSK63

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Retrofitted in 2016

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
