➤ Used CHIRON MILL 800 | Vertical Machining Center

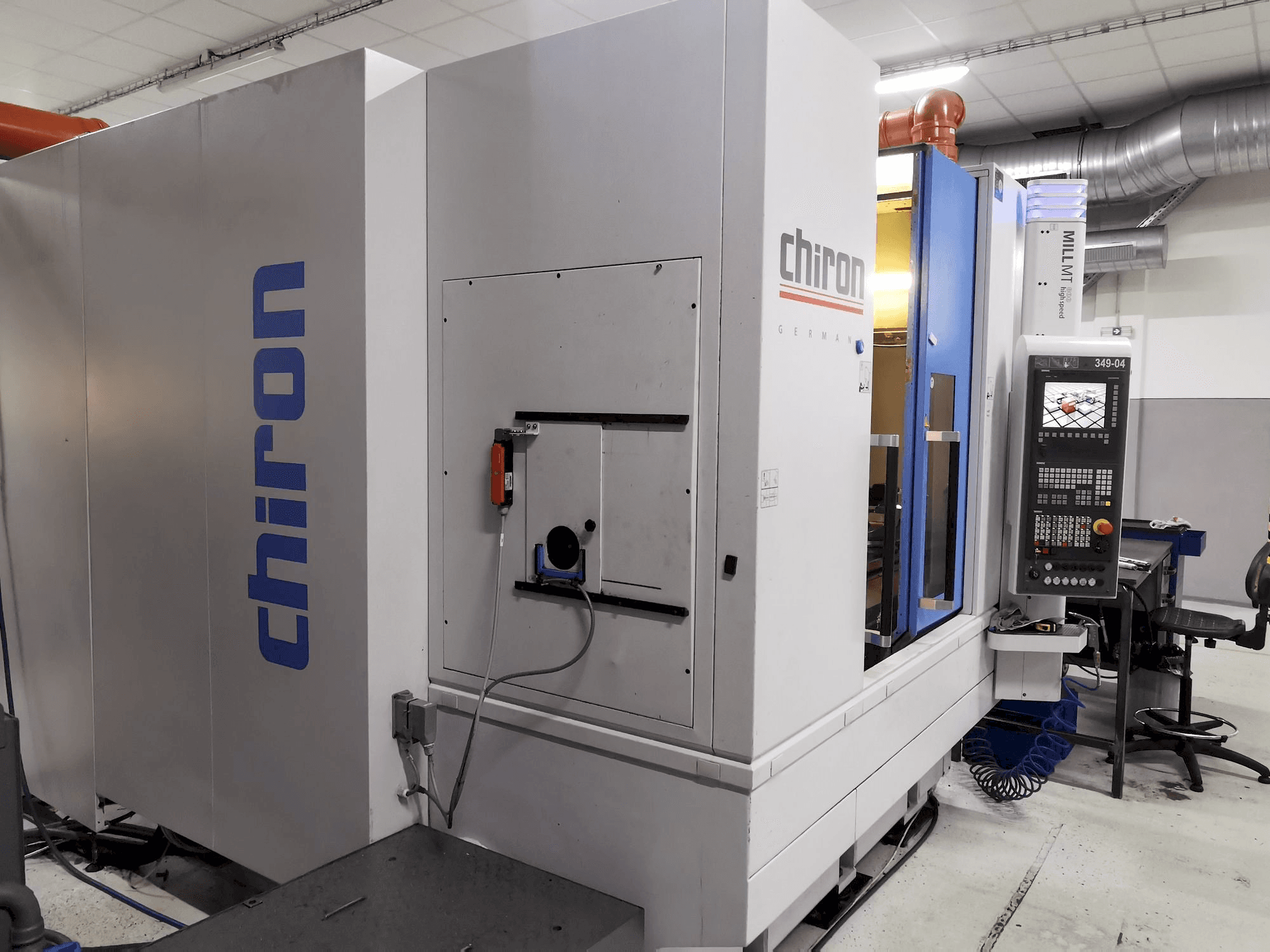

This CHIRON MILL 800 Vertical Machining center was manufactured in the year 2015 in Germany. It is equipped with a SIEMENS SINUMERIK control unit and has 5 axis.

Overview

brand: CHIRON
year: 2015
MODEL: MILL 800
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON MILL 800

General Data

Machine weight: 8500 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: HSK-A 63
Number of axis: 5

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 500 MM
Z-AXIS Movement: 550 MM

Table

Outer length: 800 mm
Outer width: 500 mm
Table load: 600 kgs

Additional Equipment

- Bar loader ILS-RBK- 10012 100 min/max 5/100 mm L= 600-1200 mm
- Spare part: 12 000 rpm Kessler spindle (new repair with protocol).
- Collet SK100 40x80 mm smooth 1 pc
- Collet SK100 BZG D60 - Smooth 2 pcs
- Collet SK100 BZ, 50x35 notched 2 pcs
- Collet SK100 D32 smooth 1 pc
- Collet SK100 BZ D65 Notched 2pcs
- Collet SK100 BZG ADAPTER 100 RD 1 pc
- Workpiece probe Renishaw 1pc

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feedrate 60 m/min
- - Swivelling head cnc controlled (b axis) +/- 100° degrees
- - Spindle torque140 nm
- - Tool changer 60 positions
- - Tool-change time 1,5 sec // taper type hsk-a 63
- - Tool-change time 1,5 sec
- - Coolant through spindle 40 bar
- - Max turning dia 65mm // turning spindle rpm: 15. 000
- - Hydraulic clamping 800 nm.
- - Turning weight 7500 kgs
Qualitative Machine Benefits:
- - Cnc controlled clamping/rotating unit for 6th face machining
- - Pressurised linear encoders
- - Swarf conveyor
- - Renishaw-ready
- - 2022 - milling spindel retrofitted

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
