Cincinnati MILACRON 20-HC-2500 Horizontal Machining Center

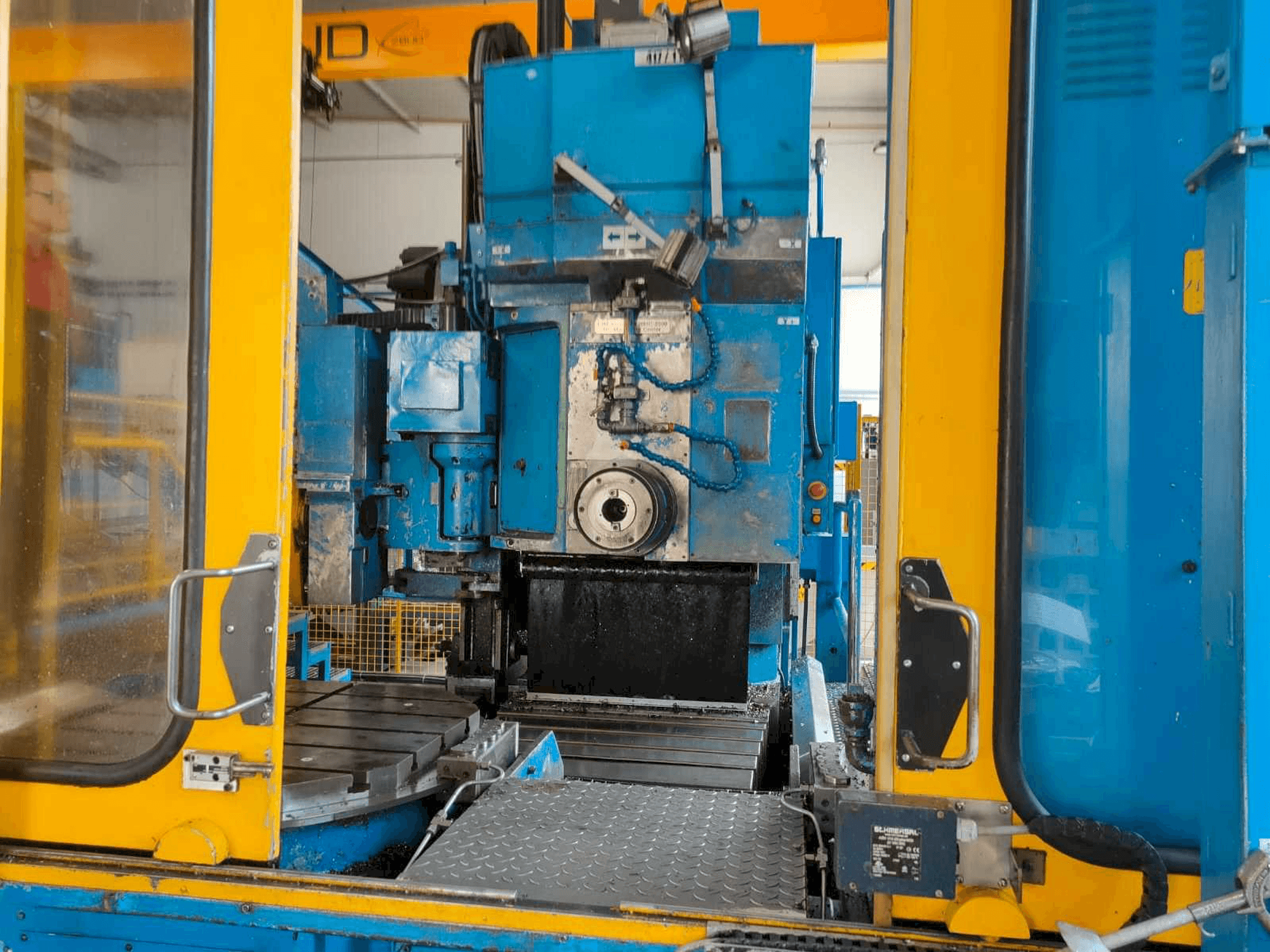

This Cincinnati MILACRON 20-HC-2500 Horizontal Machining Center was made in 2007. It is equipped with a SINUMERIK 840D control unit. This 5 axis machine works with a spindle speed range between 20 - 3500 rpm and 2 tables dimensions 800 x 1000 mm. Machine in good condition, ready for tests. Full service documentation available.

Overview

brand: Cincinnati
year: 2007
MODEL: MILACRON 20-HC-2500
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Cincinnati MILACRON 20-HC-2500

General Data

Machine weight: 25000 KG

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Spindle speed range: 20-3500 1/MIN
Spindle motor power: 22 kW
Tool taper: MAS 403 BT50
Number of axis: 5

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 950 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 800 mm
Outer width: 1000 mm

Media

Power consumption: 70 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B1 - continuous, res 0. 0001 deg
- - B2 – continuous, res 0. 0001 deg
- - C2 - continuous, res 0. 0001 deg
- - Table: 2x - 800x1000 mm
- - Automatic tool changer: 60 pcs
- - Tool clamping force 20 kn
- - Working speed: x, y, z: 1-6000 mm / min
- - Cooling through spindle axis and external
Qualitative Machine Benefits:
- - Ce mark, declaration of conformity
- - Machine in good working condition, ready for tests
- - Full service documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
