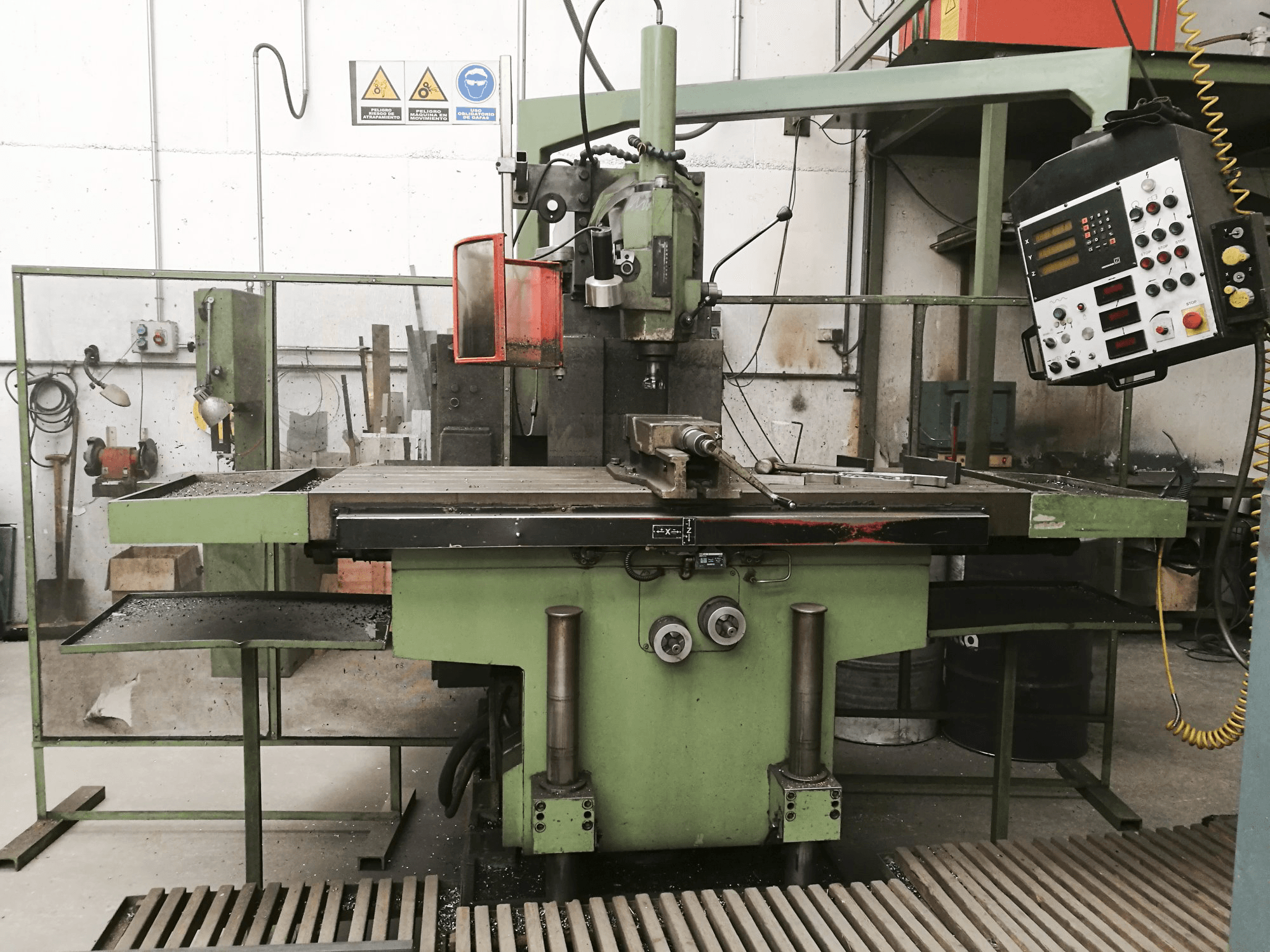

CME F4 CMC Milling Machine

This CME F4 CMC Milling Machine was manufactured in 1989 and has been running for about 20000 production hours ever since. Operated through a HEIDENHAIN control unit, this robust machine includes tools, cones and a gag as additional equipment.

Overview

brand: CME
year: 1989
MODEL: F4 CMC
production hours: 20000
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - CME F4 CMC

General Data

Measurements width: 2540 mm
Measurements depth: 2930 mm
Measurements height: 2500 mm
Machine weight: 5500 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 1800 1/min
Spindle motor power: 9 kW
Tool taper: ISO 50

Movement

X-AXIS Movement: 1200 mm
X-AXIS Working Feed: 4000 mm/min
X-AXIS Accuracy: 6000 mm/min
Y-AXIS Movement: 700 mm
Y-AXIS Working Feed: 4000 mm/min
Y-AXIS Accuracy: 6000 mm/min
Z-AXIS Movement: 500 mm
Z-AXIS Working Feed: 2000 mm/min
Z-AXIS Accuracy: 3000 mm/min

Table

Outer length: 1700 mm
Outer width: 600 mm
Number of tslots: 6
Distance between: 100 mm

Additional Equipment

- Tools, gag and cones

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
