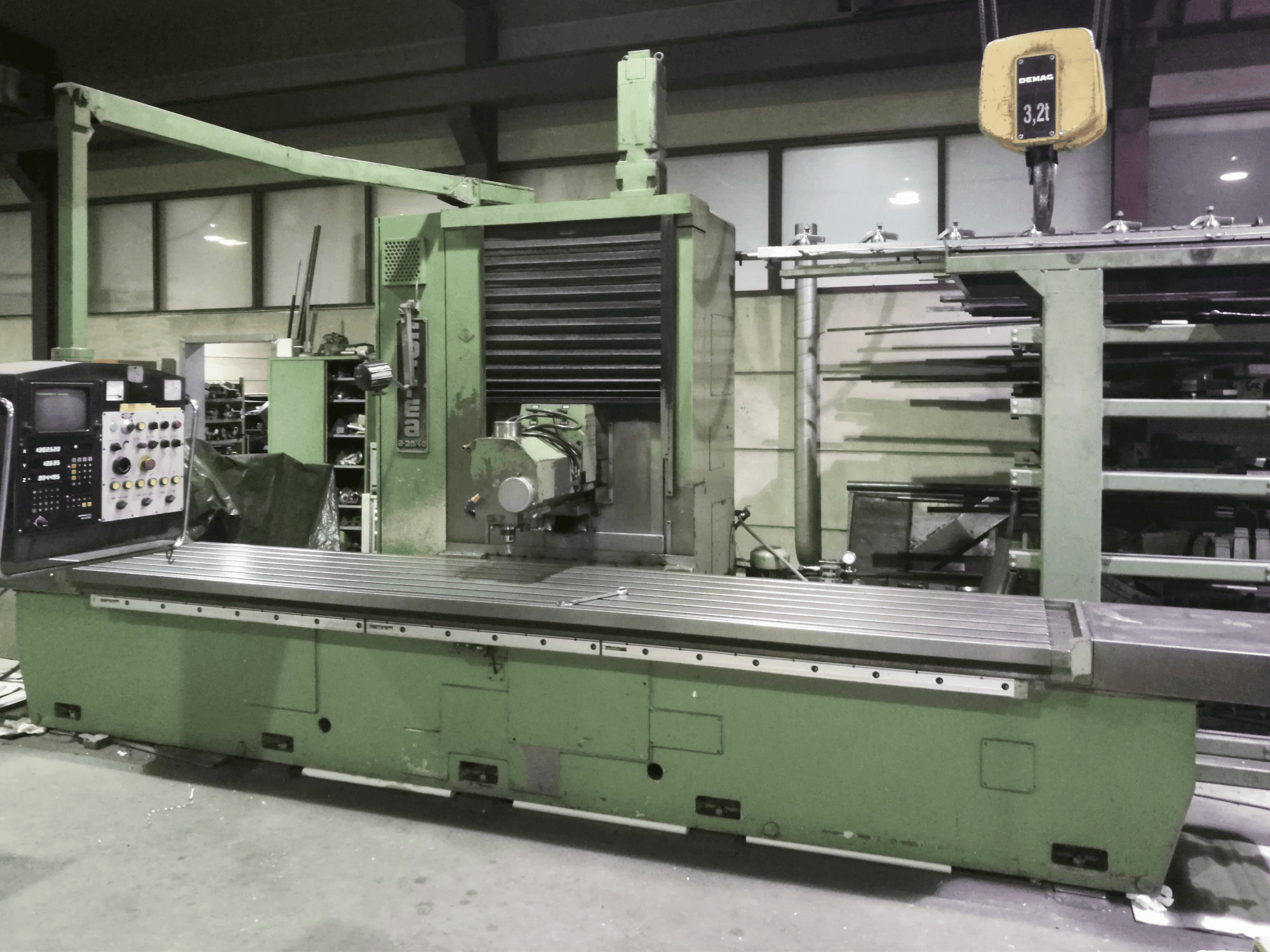

Correa A-20/40 Milling Machine

This Correa A-20/40 Milling Machine was manufactured in 1984 in Italy. Operated through a HEIDENHAIN TNC 150 control unit, the model incorporates two spindles in 90º. The machine is in excellent conditions and has had its main spindle overhauled. Complementary tools, software, a serial cable and a PC are included as additional equipment.

Overview

brand: Correa
year: 1984
MODEL: A-20/40
application type: Milling
Location: Finland
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Correa A-20/40

General Data

Measurements width: 4100 mm
Measurements depth: 4735 mm
Measurements height: 3220 mm
Machine weight: 12000 kg

Control Unit

Model: TNC 150
Brand: HEIDENHAIN

Movement

X-AXIS Movement: 3500 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Media

Main electronic connection: 63 A
Power consumption: 25 kVA

Additional Equipment

- Tools
- Software, serial cable and PC

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
