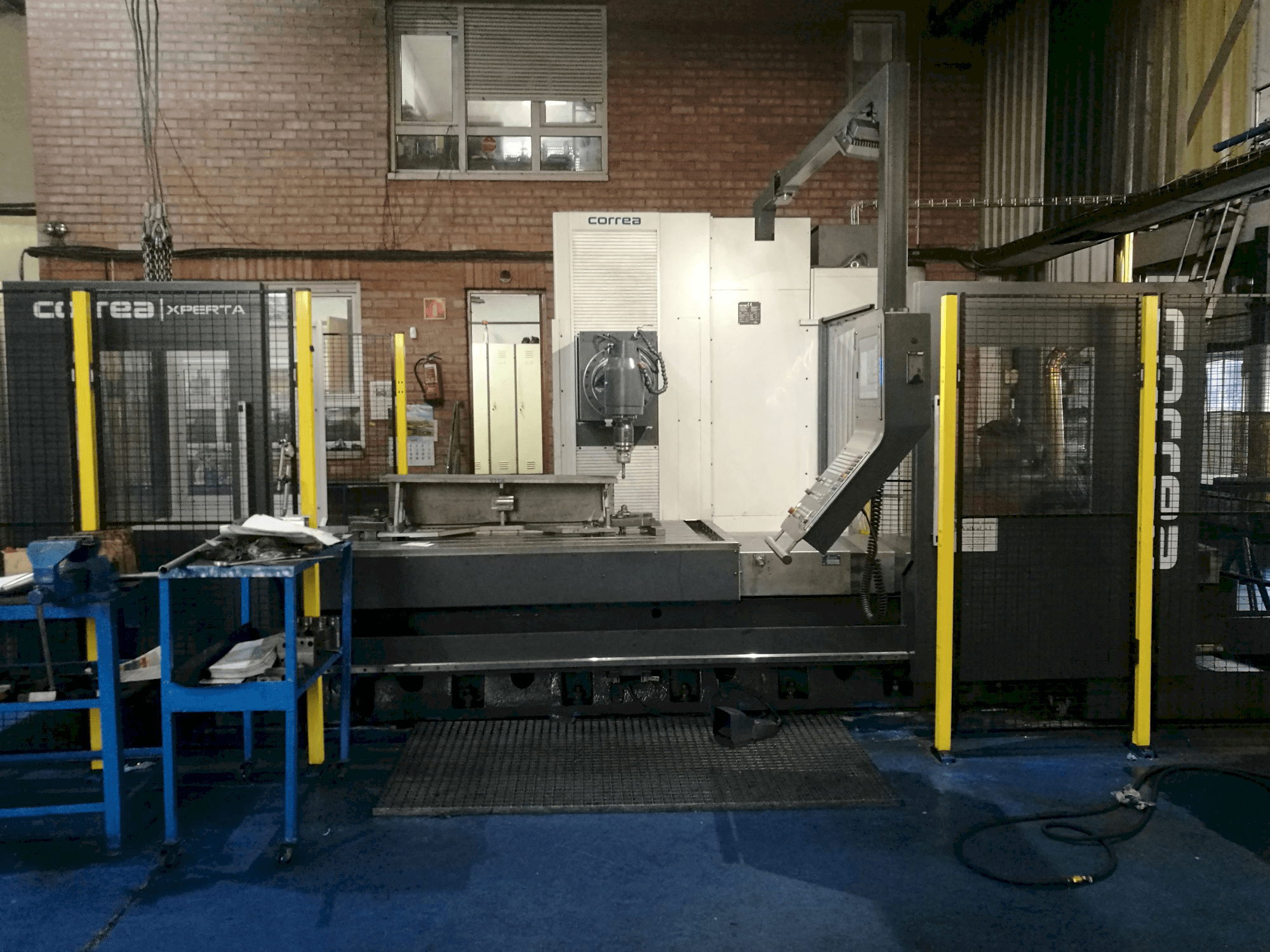

Correa XPERTA 20 Milling Machine

This Correa XPERTA 20 Milling Machine was manufactured in 2016 in Spain and counts with 5022 production hours since then. Controlled through a Heidenhain iTNC 530 Control unit, this machine counts with a spindle speed up to 4000 rpm and a wide working table of 2300mm x 1000mm. It presents perfect conditions, and can be considered as almost new.

Overview

brand: Correa
year: 2016
MODEL: XPERTA 20
production hours: 5022
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Correa XPERTA 20

General Data

Measurements width: 7608 mm
Measurements depth: 5187 mm
Measurements height: 2803 mm
Machine weight: 15200 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece x: 2300 mm
Workpiece y: 1000 mm
Workpiece z: 1000 mm
Workpiece weight: 4500 kg

Table

Outer length: 2300 mm
Outer width: 1000 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 31 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
