DAEWOO Puma TT2500SY - GL

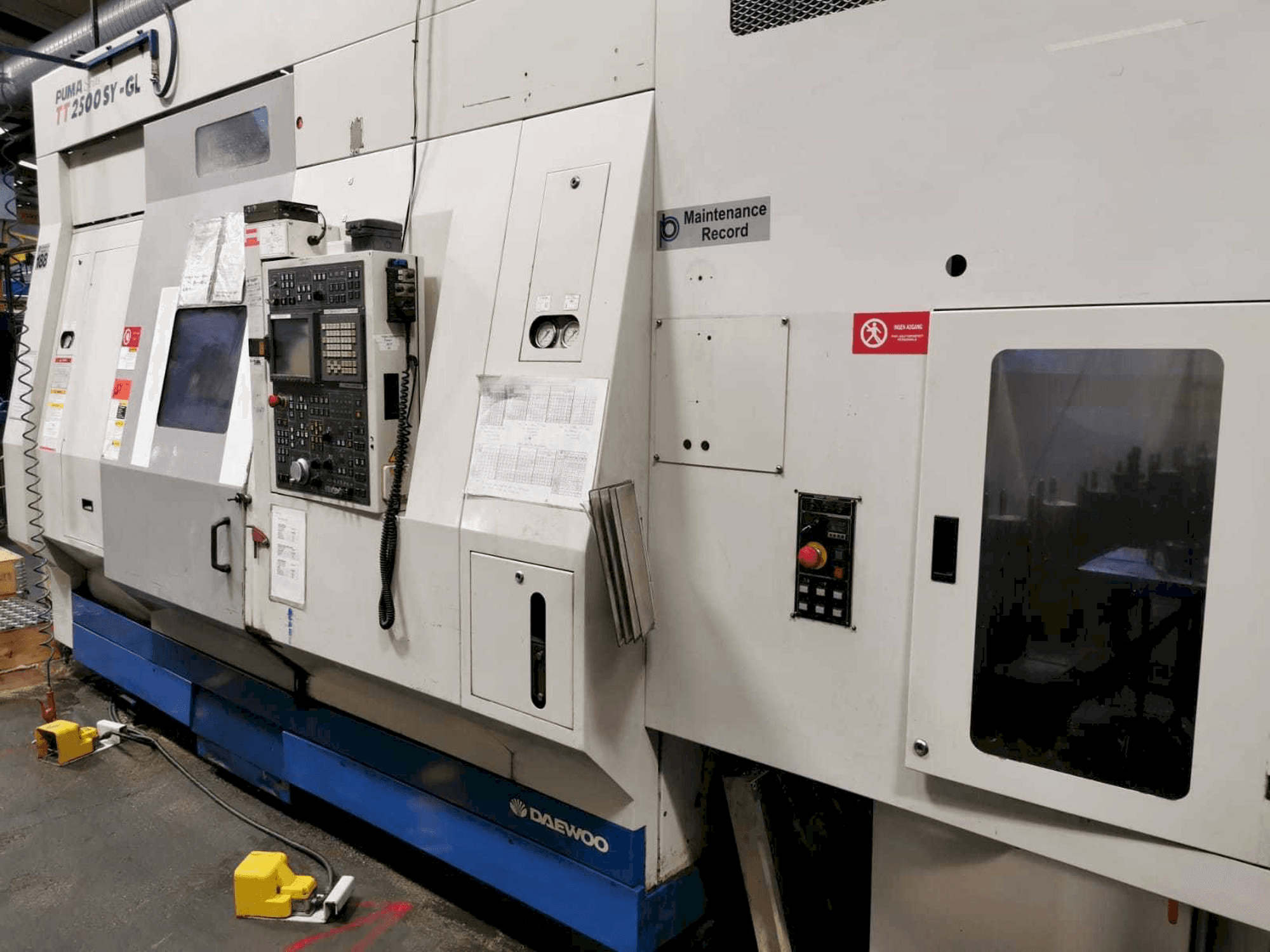

This DAEWOO Puma TT2500SY - GL Lathe was built in 2005 in Korea. This 8 axis machine is equipped with a FANUC 18I Control unit. It can operate with a spindle speed up to 3500 rpm. This machine includes a Daewoo Gantry Loader (GL). It has mainly been producing hydraulic components and is found in very well conditions.

Overview

brand: DAEWOO
year: 2005
MODEL: Puma TT2500SY - GL
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAEWOO Puma TT2500SY - GL

General Data

Machine weight: 13000 Kg

Control Unit

Model: 18I
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 3500 1/MIN
Number of axis: 8

Movement

X-AXIS Movement: 255 mm
Y-AXIS Movement: 120 mm
Z-AXIS Movement: 900 mm

Workpiece

Workpiece drm over bed: 390 mm
Workpiece z: 740 mm

Turret

Number of turrets: 2

Tools

Slots in storage: 24

Media

Main electronic connection: 400 V 50/60 Hz
Power consumption: 95.77 kVA
Chip conveyor: Yes

Additional Equipment

- Daewoo Gantry Loader (GL)

Additional Information

Machine history

Material type: Mild steel
End product: Hydraulic components

Machine Benefits

Technical Machine Benefits:
- - C-axis movement: 360 deg ; full c axis on both spindles
- - 8 controlled axes on this machine (x1,x2,y, z1,z2,b,c1,c2)
- - Twin spindle/twin turret machine
- - Included automatic gantry loader
- - 3 x driven tool turrets
- - 76mm bar passage
- - Max swing: 800mm
Qualitative Machine Benefits:
- - Well maintained machine
- - Gantry loader automation included with machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
