Used DAH LIH MCV 1020 BA - 2007 - Vertical Machining Centre for sale | gindumac.com

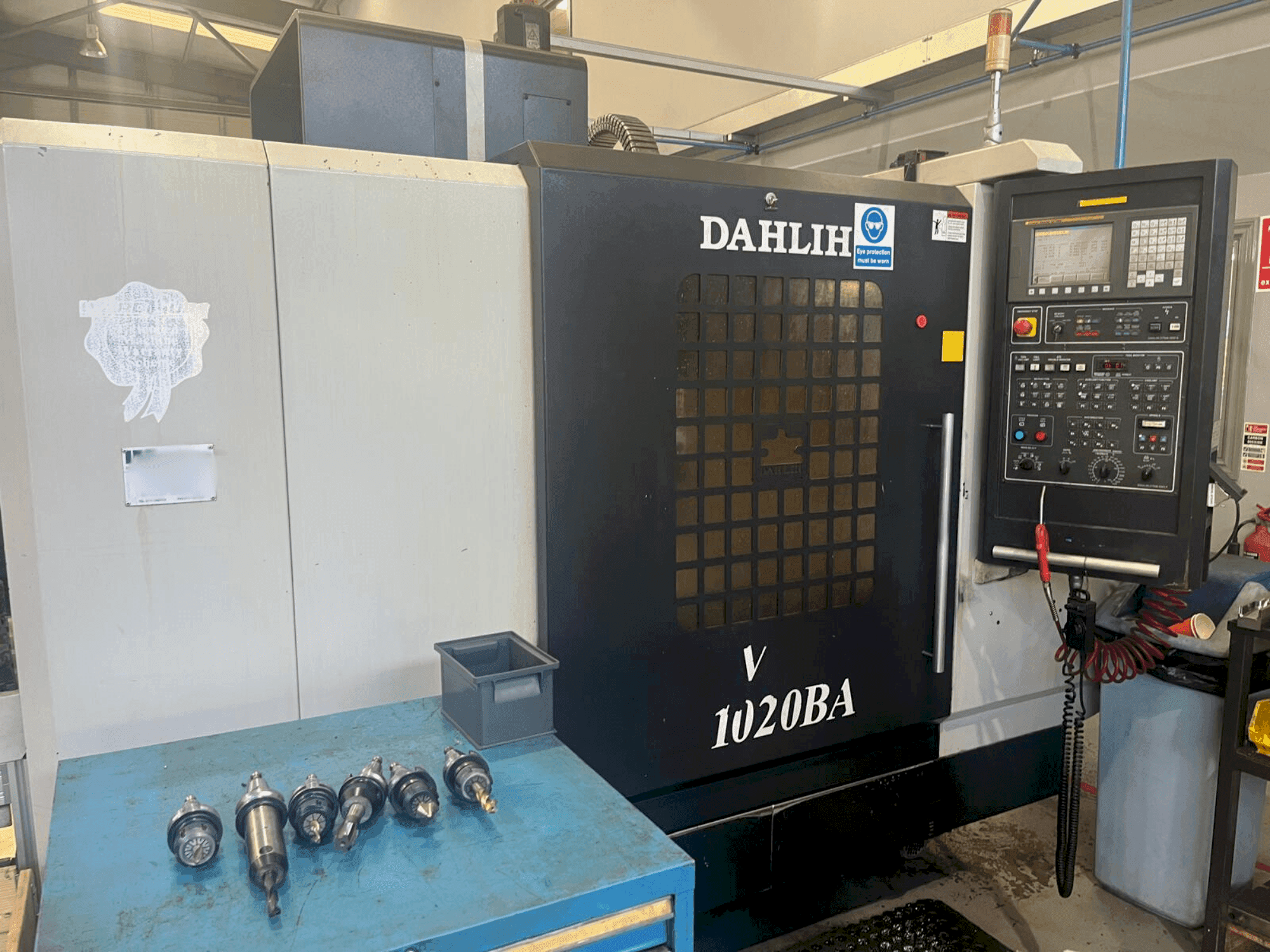

This 4-axis DAH LIH MCV 1020 BA vertical machining center was manufactured in 2007, equipped with a Fanuc Oi-MC control unit for precision milling operations. It offers X, Y, Z-axis movements of 1020 mm, 550 mm, and 560 mm respectively, and includes a 4th axis with chuck. Features include an 8000 RPM spindle, internal cooling, and a chip conveyor. The machine is ideal for sub-contract machining with a large table size of 1300 x 660 mm. Consider this DAH LIH MCV 1020 BA vertical machining center for precise milling capabilities. Contact us for further details.

Overview

brand: DAH LIH
year: 2007
MODEL: DL-MCV1020BA
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAH LIH DL-MCV1020BA

General Data

Measurements width: 3060 MM
Measurements depth: 3260 MM
Measurements height: 2665 MM
Machine weight: 6010 KG

Control Unit

Model: Oi-MC
CNC main language: English
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 560 mm
A-AXIS Movement: 360 º MM

Table

Outer length: 1300 MM
Outer width: 660 MM

Tools

Max weight: 7 kg
Max tool diameter: 127 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Media

Main electronic connection: 380 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 4th Axis with Chuck

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Large table, includes 4th axis qualitative

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
