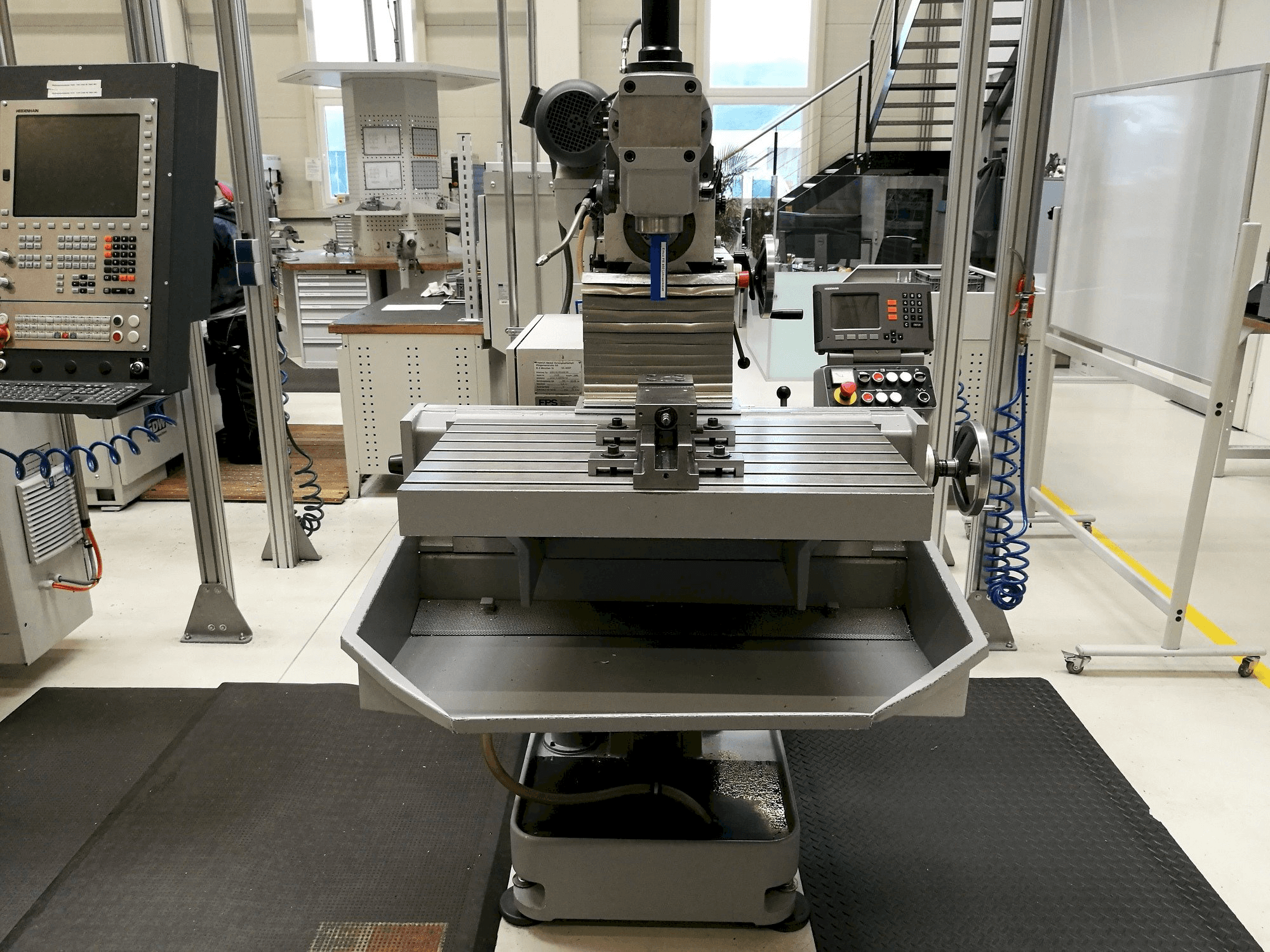

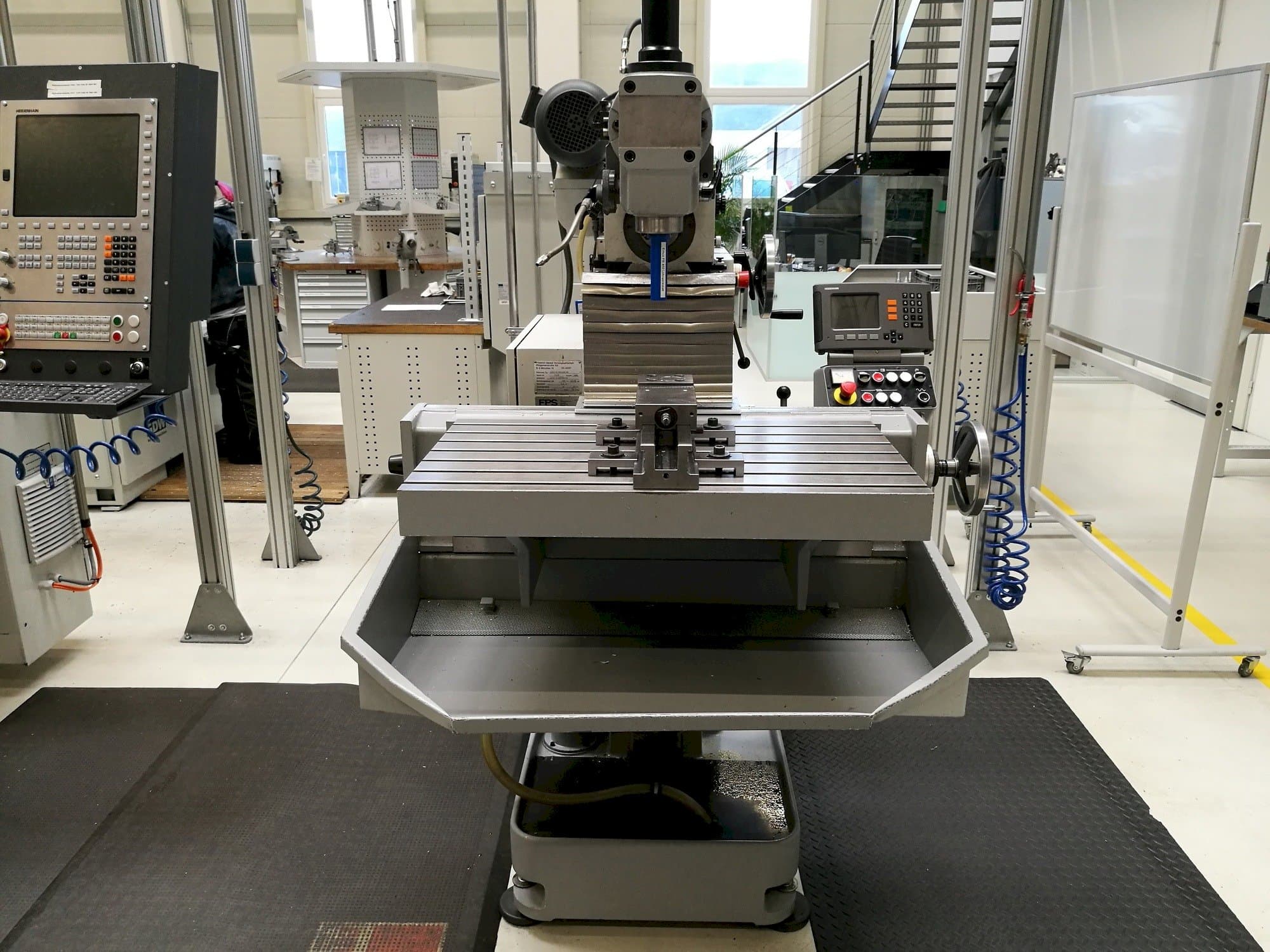

DECKEL FP4 Milling Machine

This DECKEL FP4 Milling Machine was built in 1985 in Germany and has been working for approximately 17500 hours. This well maintained machine can work with a spindle speed up to 2500 rpm. It incorporates an SK40 tool holder, while other 11 toolholders are included additionally. It presents excellent conditions, as it has been recently retrofitted by FPS itself.

Overview

brand: DECKEL
year: 1985
MODEL: FP4
production hours: 17500
application type: Milling
Location: Austria
machine type: CNC Milling Machine
availability: Sold

Technical Information - DECKEL FP4

General Data

Measurements width: 2000 mm
Measurements depth: 1800 mm
Measurements height: 1800 mm
Machine weight: 1700 kg

Main drive

Number of spindles: 1
Spindle speed range: 50-2500 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 800 mm
Outer width: 460 mm
Number of tslots: 4
Distance between: 63 mm

Tools

Type of tool holder: SK40

Media

Main electronic connection: 380 V
Power consumption: 9.5 kVA

Additional Equipment

- 11 toolholders

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Retrofitted recently by fps company

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
