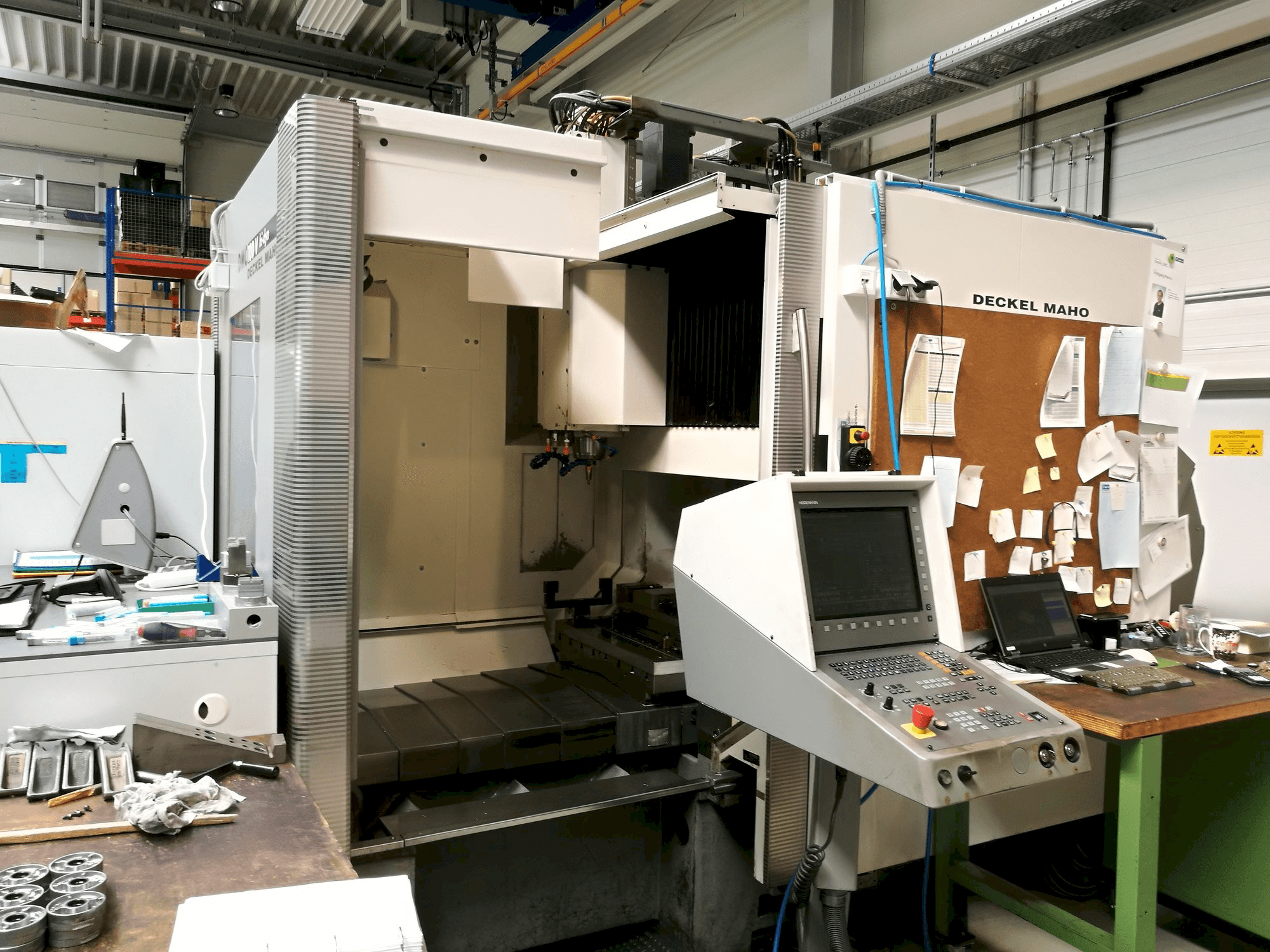

DECKEL MAHO DMC 100 V Hi-Dyn Vertical Machining Center

This DECKEL MAHO DMC 100 V Hi-Dyn Vertical Machining Center, produced in Germany in 2001. It has a production history of the new spindle of 1300 working hours. It is equipped with a Heidenhain 430 control unit. This machine can work with a spindle speed range up to 18000 rpm.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMC 100 V Hi-Dyn
production hours: 14600
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 100 V Hi-Dyn

General Data

Measurements width: 3900 mm
Measurements depth: 4100 mm
Measurements height: 2900 mm
Machine weight: 9100 kg

Control Unit

Model: 430
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece x: 1250 mm
Workpiece y: 850 mm
Workpiece z: 800 mm
Workpiece weight: 1200 kg

Table

Outer length: 1250 mm
Outer width: 800 mm

Tools

Slots in storage: 30
Max weight: 12 kg
Max tool diameter: 80/140 mm
Max tool length: 300 mm
Type of tool holder: SK40 Din 69871 A

Media

Main electronic connection: 400 V
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Tool measuring system
- RotoClear window
- Workpiece measuring device

Additional Information

Machine history

Material type: Steel
End product: Mould and die components
Industries: Mould and die

Machine Benefits

Technical Machine Benefits:
- - New spindle since 1300h
- - High dynamic machine center
- - Hsc spindle
Qualitative Machine Benefits:
- - Perfect conditions
- - Little working time on new spindel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
