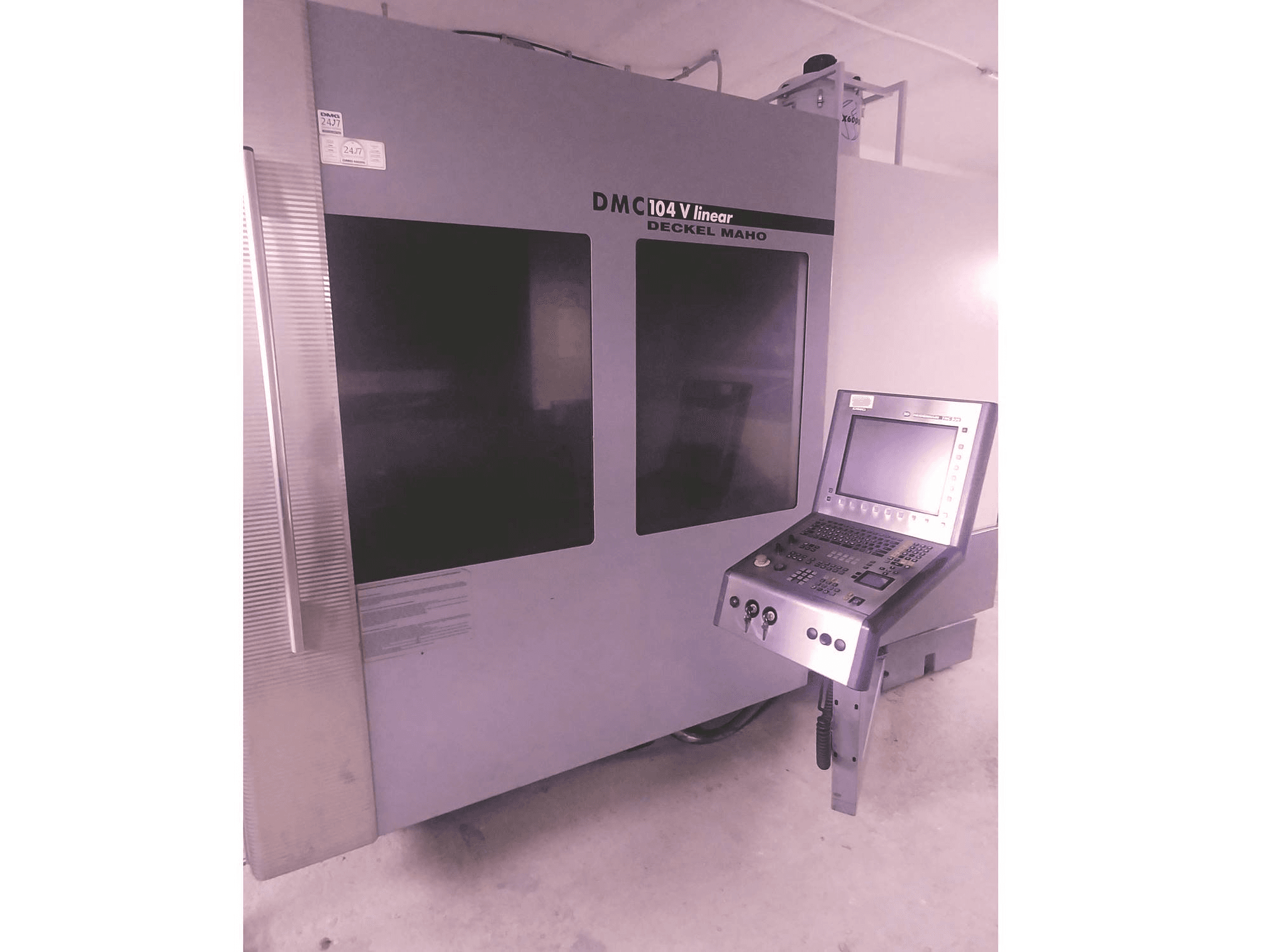

Deckel-Maho Dmc 104 V Linear Vertical Machining center

This Deckel-Maho DMC 104 V Linear Vertical Machining center was made in 2008 in Germany and has 80176 production hours, of which 35347 are spindle hours. It is equipped with a Heidenhain iTNC530 control unit and has 3 axis. The machine has a spindle speed of 18000 rpm, is in very good condition, and is well maintained.

Overview

brand: DECKEL MAHO
year: 2008
MODEL: DMC 104 V Linear
production hours: 80176
application type: Milling
Location: Slovakia
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 104 V Linear

General Data

Measurements width: 4060 mm
Measurements depth: 2450 mm
Measurements height: 2800 mm
Machine weight: 8900 kg

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1040 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 800 kg

Table

Outer length: 1250 mm
Outer width: 600 mm

Tools

Slots in storage: 30
Type of tool holder: ISO 40

Media

Power consumption: 39 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Heidenhain ts 640 infra probe
- - Spindle thermal compensation
- - Exhaust collector
- - Electrics air conditioning
- - null
- - null
Qualitative Machine Benefits:
- - Very good condition!
- - Measuring 4/2022: x/y repeat positioning 0,02/0,01 mm
- - Spindle motor power 22/16 kw (40/100% ed)
- - Spindle backlash 150mm 0,01mm
- - 11/2017 - kessler spindle refurbished
- - 11/2020 - z axis drive refurbished

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
