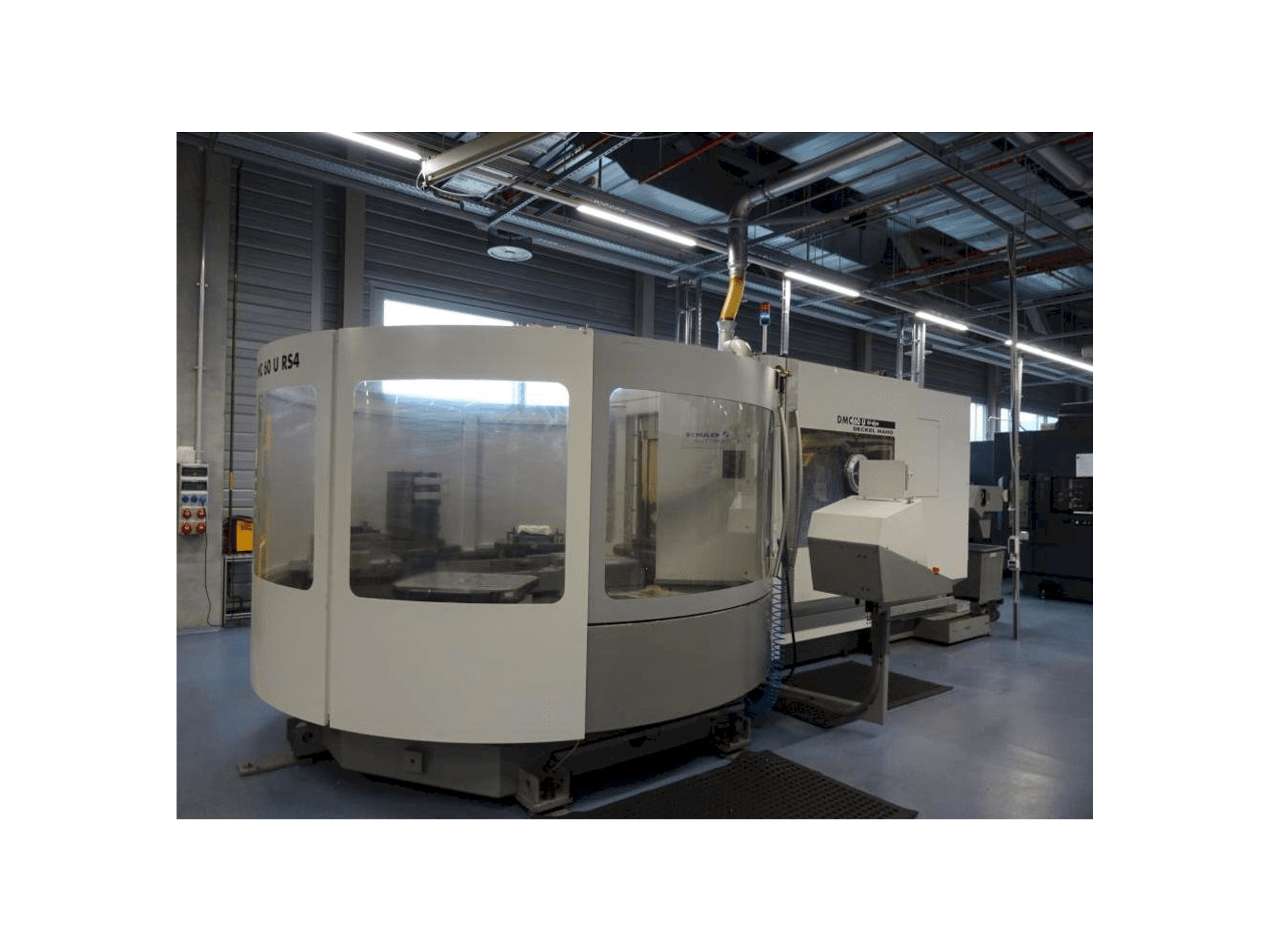

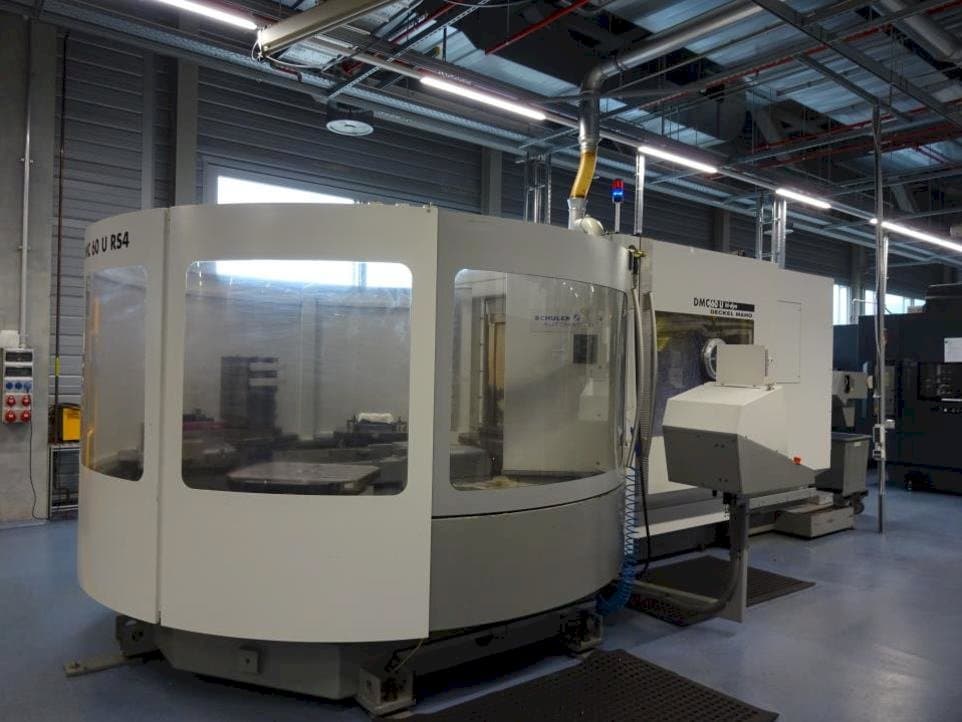

DECKEL MAHO DMC 60 U RS4 Universal Machining Center

This DECKEL MAHO DMC 60 U RS4 Universal Machining Center was built in the year 2001 in Germany. It has approximately 63000 production hours. It is operated with a Heidenhain TNC 430 control unit. This 5 axis machine has a spindle speed up to 18000 rpm.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMC 60 U RS4
production hours: 63000
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 60 U RS4

General Data

Measurements width: 7700 mm
Measurements depth: 4500 mm
Measurements height: 2500 mm
Machine weight: 8500 kg

Control Unit

Model: TNC 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 0 - 18000 1/MIN
Tool taper: ISO HSK 63A - DIN69893
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 600 mm
B-AXIS Movement: 180° stepless MM
C-AXIS Movement: C-axis 360° infinitely variable MM

Table

Outer length: 500 mm
Outer width: 630 mm

Media

Power consumption: 44kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine with 120 tool positions
- - Pallet storage with 6 pallets 500 x 630 mm, schuler automation
- - Scraper belt conveyor
- - Interlit compact filter unit
- - Internal cooling system, high pressure unit 900 liter capacity
Qualitative Machine Benefits:
- - Tpm (total productive maintenance), maintained and documented in the logbook
- - New drive spindle in dec. 2019

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
