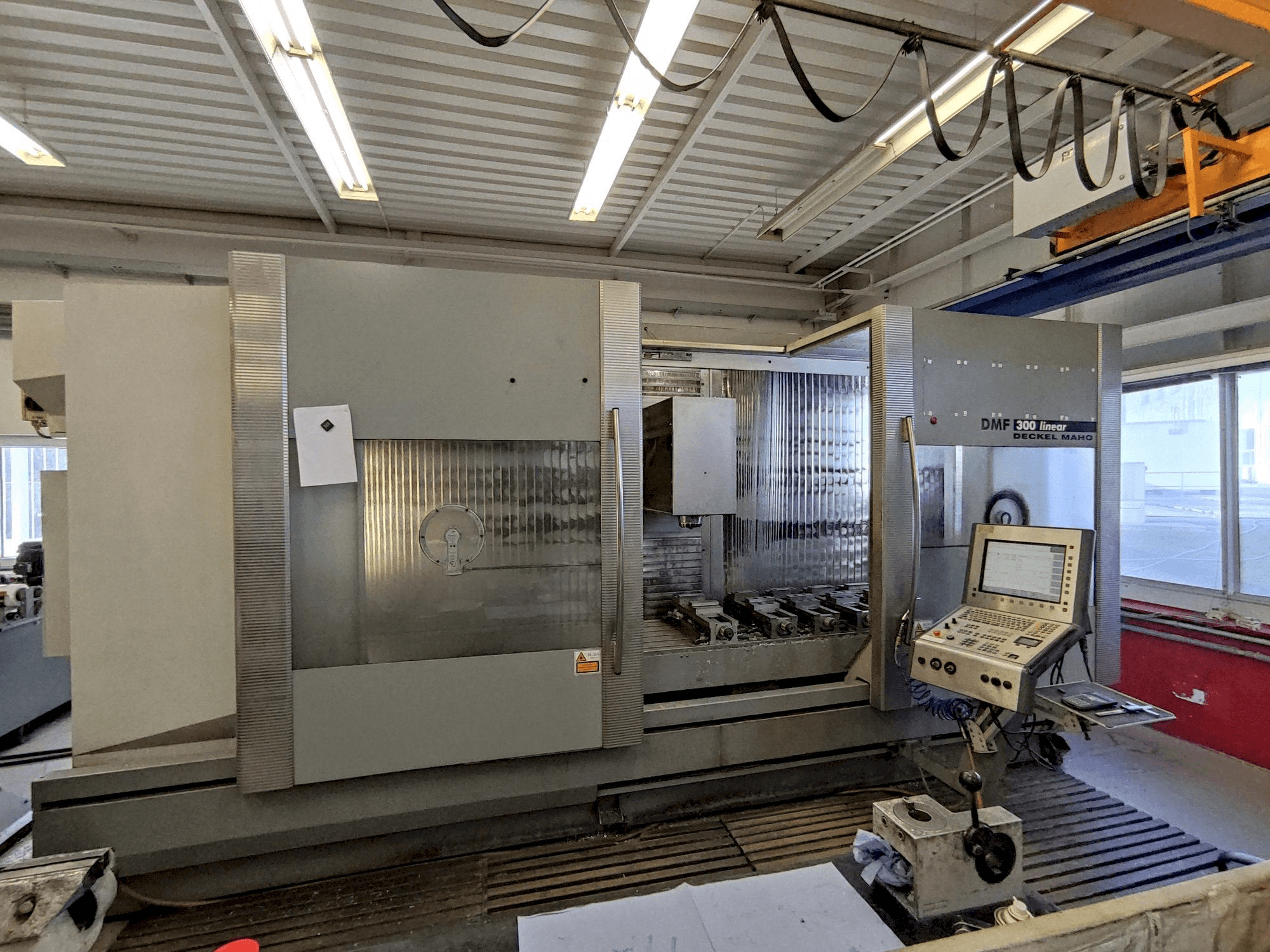

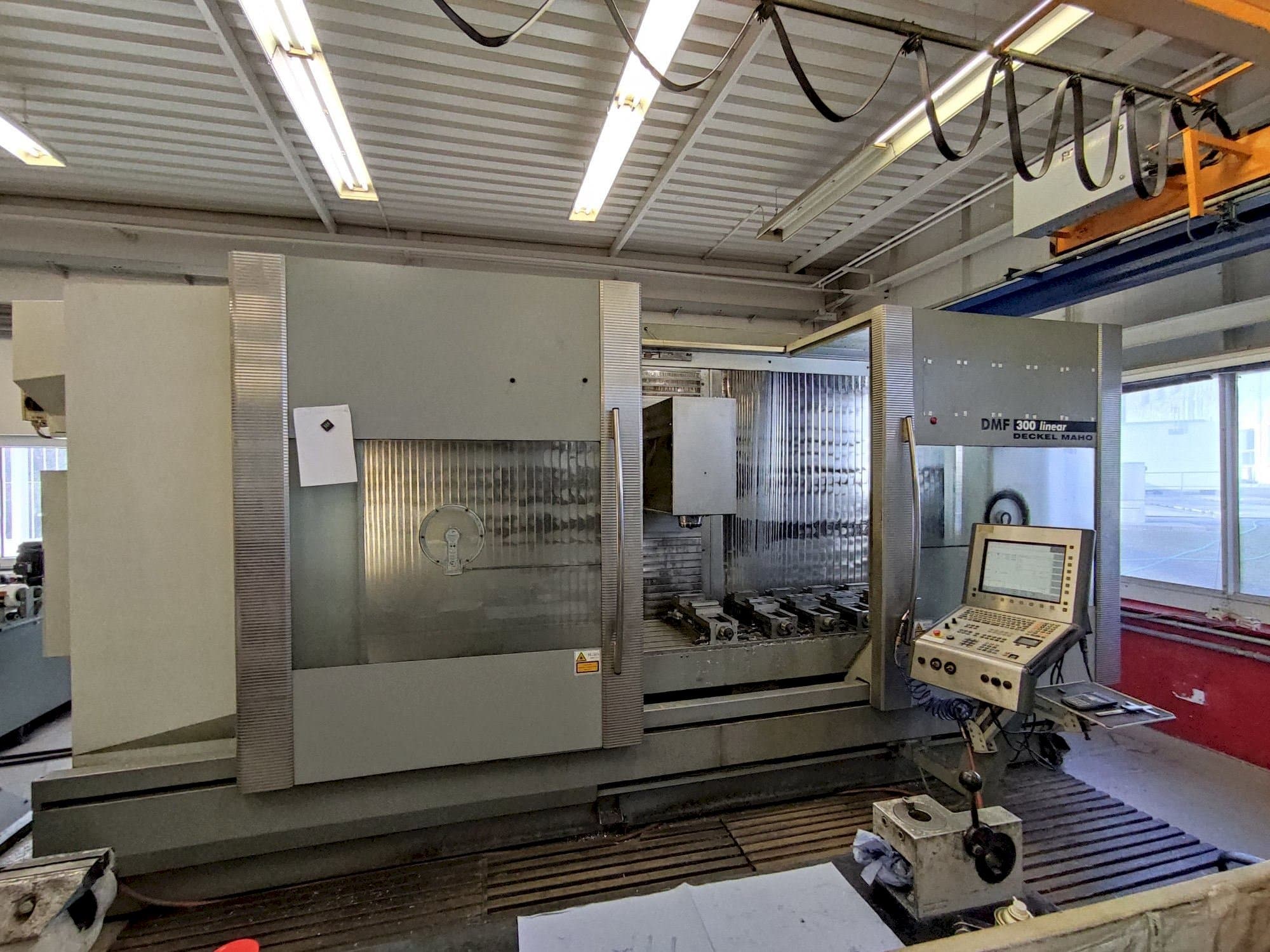

DECKEL MAHO DMF 300 linear

This DECKEL MAHO DMF 300 linear vertical machining center was manufactured in Germany in the year 2004. This 3 axis machine has a total of 55365 operating hours, of which 22369 are spindle hours. It is operated through a Heidenhain iTNC 530 control unit. This machine has a spindle speed up to 18000 rpm. It has mainly been producing moulds. This machine got a new spindle in 2014 and a new ballscrew and bearings on z axis in the year 2016. It is in very good condition and has been regularly maintained.

Overview

brand: DECKEL MAHO
year: 2004
MODEL: DMF 300 linear
production hours: 55365
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMF 300 linear

General Data

Measurements width: 5272 mm
Measurements depth: 2903 mm
Measurements height: 2650 mm
Machine weight: 16500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Spindle motor power: 35/25 kW (40/100%)
Number of axis: 3

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 20000 mm/min
Y-AXIS Movement: 560 mm
Y-AXIS Working Feed: 20000 mm/min
Z-AXIS Movement: 720 mm
Z-AXIS Working Feed: 20000 mm/min

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 3400 mm
Outer width: 600 mm
Number of tslots: 6/18 H7
Distance between: 100 mm

Tools

Slots in storage: 30
Max tool diameter: 50 mm
Max tool length: 200 mm
Type of tool holder: SK 40

Media

Main electronic connection: 400 v 50 hz
Power consumption: 70 kva
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Heidenhain touch probe TS 641
- Set of SK 40 tool holders (ca 50 pcs)

Additional Information

Machine history

End product: Mould
Industries: Die & mould

Machine Benefits

Technical Machine Benefits:
- - Cooling through spindle
- - Paper band filtration
Qualitative Machine Benefits:
- - Very good condition, regularly maintained.
- - 2014 - new spindle
- - 2016 -new ballscrew and bearings on z axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
