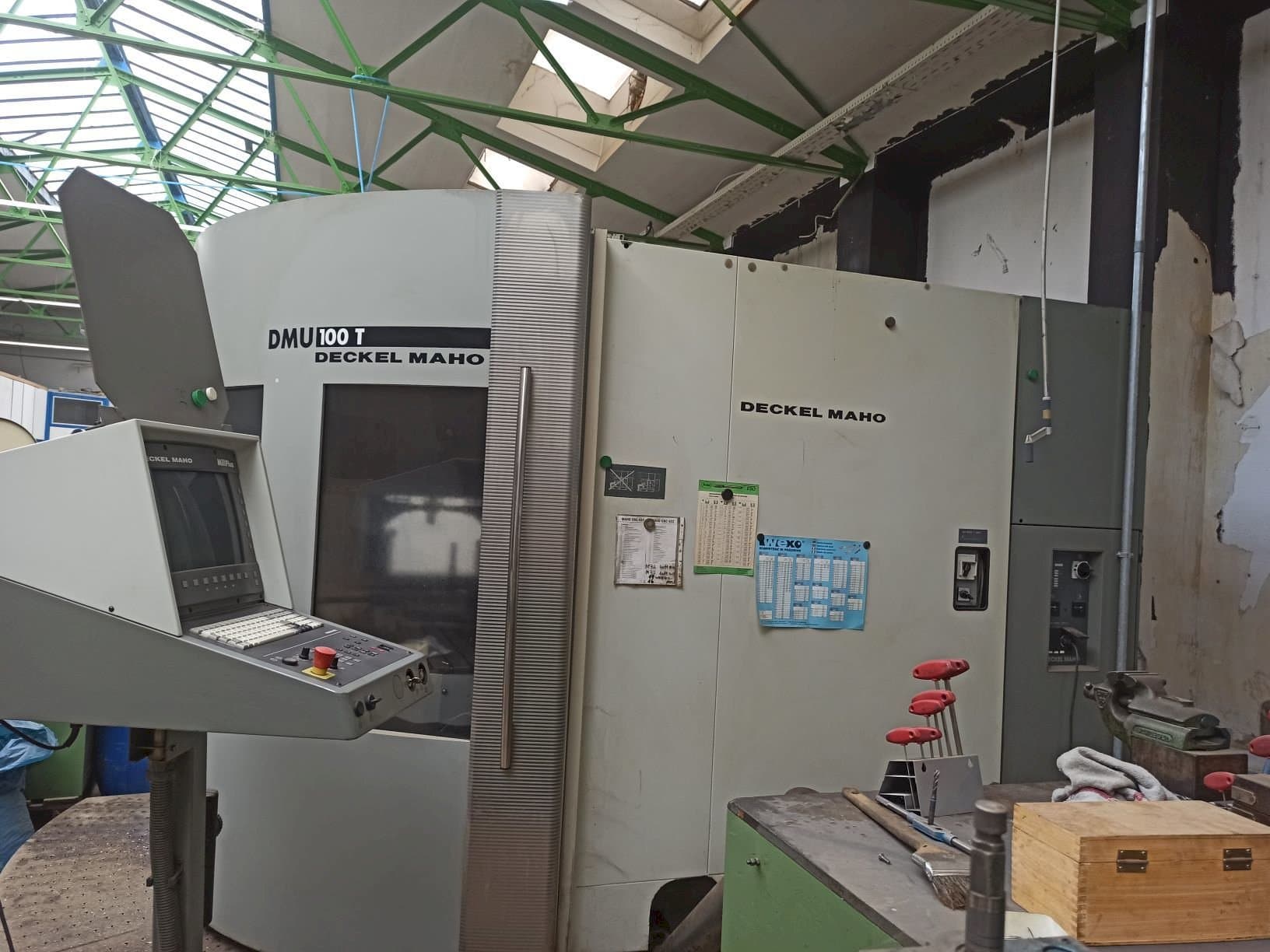

DECKEL MAHO DMU 100T Vertical Machining Center

This DECKEL MAHO DMU 100T Vertical Machining Center was built in Germany in the year 2000. It is equipped with a Deckel Maho MillPlus control unit. It counts with 22553 operating hours, from which 5552 are spindle hours. This machine can perform with a spindle speed range up to 12000 rpm.

Overview

brand: DECKEL MAHO
year: 2000
MODEL: DMU 100T
production hours: 5552
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DECKEL MAHO DMU 100T

General Data

Machine weight: 10700 kg

Control Unit

Model: MillPlus

Main drive

Spindle speed range: 12000 rpm 1/MIN

Movement

X-AXIS Movement: 1150 mm
Y-AXIS Movement: 710 mm
Z-AXIS Movement: 710 mm

Table

Outer length: 1500 mm
Outer width: 800 mm
Table load: 1100 kg

Tools

Type of tool holder: SK40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Itnc530 electronic handwheel
- - Operating mode 4 process monitoring in production
- - Manual override with open door is in the machine
- - Connection is on, programming directly on the machine, mostly for single parts

Extra information

- NO internal cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
