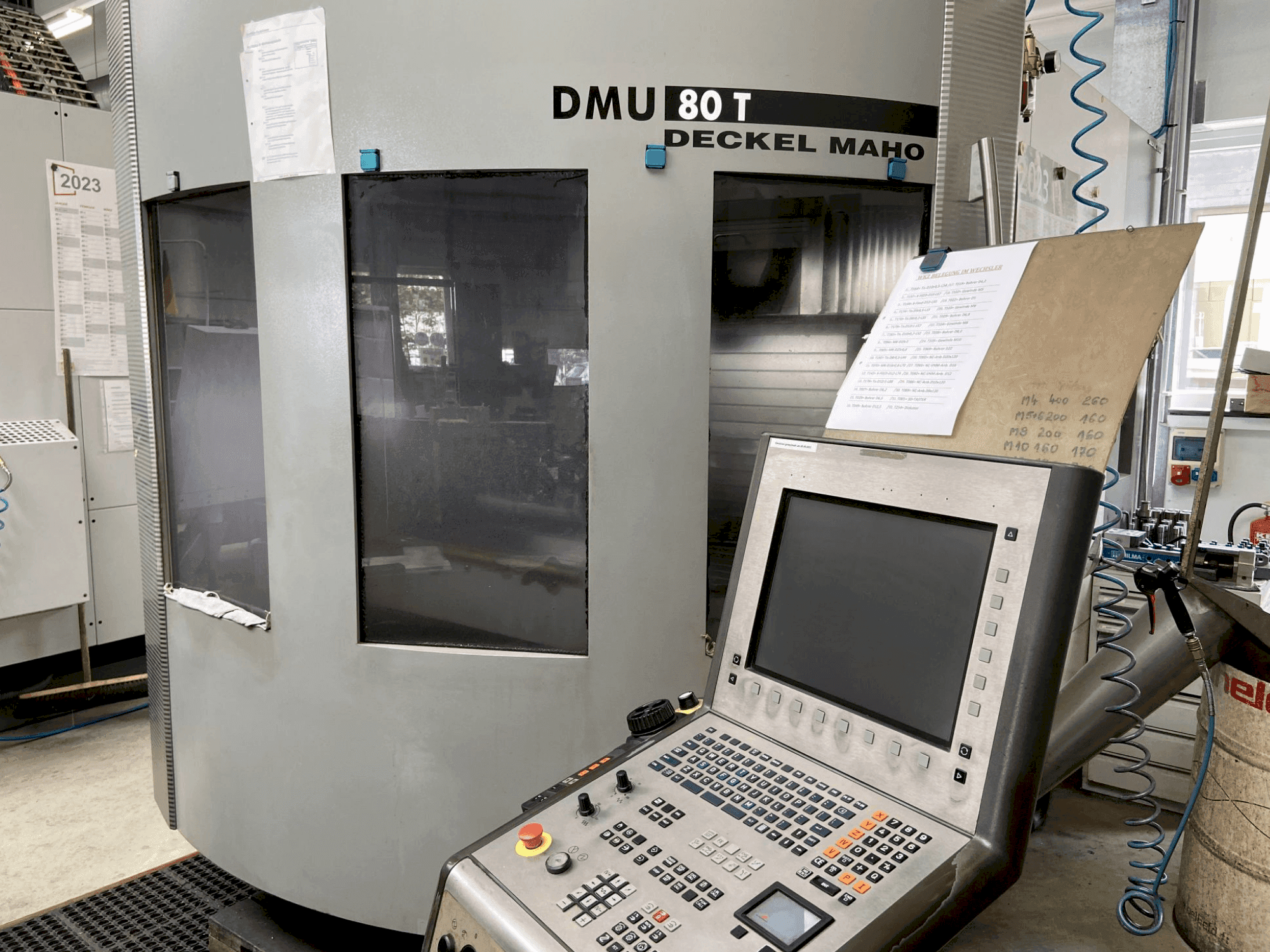

- DECKEL MAHO DMU 80 T (2002) Universal Machining Center
This DECKEL MAHO DMU 80 T (2002) Universal Machining Center was manufactured in 2002 in Germany. It is equipped with 3+2 axis (B-axis and NC dividing head), a 12,000 rpm spindle and a 32 tool magazine. The machine runs with tool taper SK 40 and is controlled by a Heidenhain control unit with iTNC 530 model. Electronic handwheel , spiral conveyor and 3D path control are available. It is still in operation, and has always been in single-shift production. The machine works accurately, even if Y-axis has some play, which can result in a slightly wavy surface structure during fine finishing. Fits/stitch dimensions can be achieved in the +/- 0.015 range. The tool changer flap falls when the machine is at a standstill for a longer period of time (cylinder fastening worn out). Overall machine is in good, reliable working condition and can be inspected anytime. The spindle was replaced in September 2017 and has approx. 5700 hours. See photo and video gallery for detailed impressions - or original delivery note (German) attached for all technical positions.
Overview
- brand: DECKEL MAHO
- year: 2002
- MODEL: DMU 80 T
- production hours: 25602
- application type: Milling
- Location: Germany
- machine type: Machining centers (universal)
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMU 80 T
Control Unit
- Brand: HEIDENHAIN
- Model: iTNC 530
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 rpm 1/MIN
- Spindle motor power: 10kW (100% ED)
- Tool taper: SK 40
- Number of axis: 5 (3+2)
Movement
- X-AXIS Movement: 880 mm
- Y-AXIS Movement: 630 mm
- Z-AXIS Movement: 630 mm
Tools
- Number of stations: 32
Additional Equipment
- - Electronic handwheel
Additional Information
- Technical Machine Benefits:
- - 5-axis (3+2) machining center
- - Nc swivel milling head (b-axis)
- - 32-positions tool magazine // tool changing device pick-up system
- - Tool clamping to din 69872
- - Spiral conveyor
- - 3d path control
- - Tailstock manual, tip height 160 mm
- Qualitative Machine Benefits:
- - The machine has always been in single-shift operation and is currently still in operation
- - The b-axis and the nc dividing head are particularly noteworthy
- - The spindle was replaced in september 2017 and has approx. 5700 hours
- - Machine on hours: 53046 // cutting hours: 25602 // new spindle hours (since end of 2017): 5700
- - The tool changer flap falls when the machine is at a standstill for a longer period of time (cylinder fastening worn out) // Y-axis has some play, which can result in a slightly wavy surface structure during fine finishing. Otherwise the machine works accurately // Fits/stitch dimensions can be achieved in the +/- 0.015 range // Approx. 200x SK40 tool and collet holders including collets available (upon extra charge)
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
