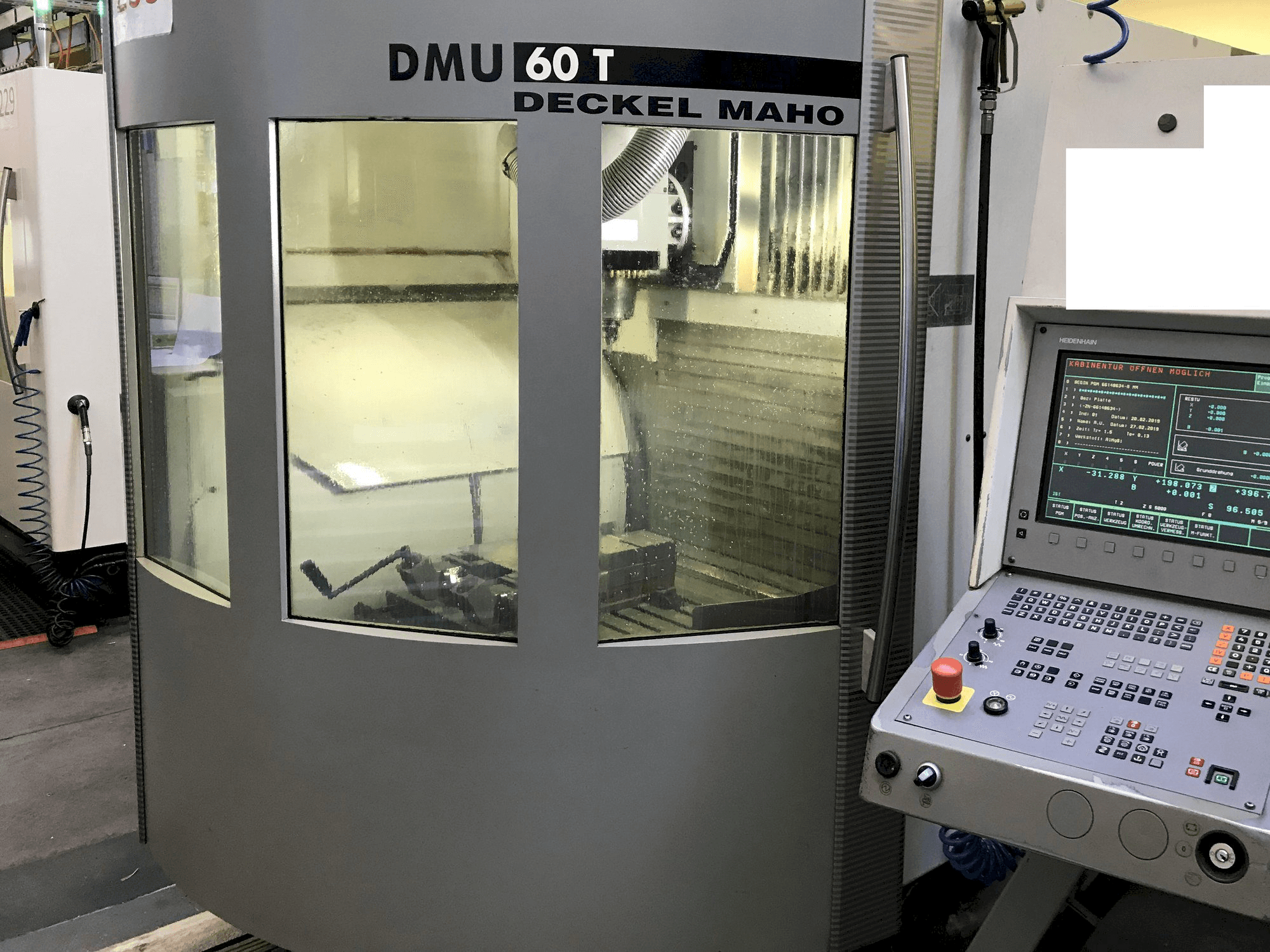

➤ Used DECKEL MAHO DMU60T Vertical Machining Center

This DECKEL MAHO DMU60T Vertical Machining Center was built in 2001 in Germany and counts with 11700 hours. Equipped with a Heidenhain iTNC 430 Control unit, this machine can operate with a spindle speed up to 12000 rpm.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMU60T
production hours: 11700
application type: Milling
Location: Switzerland
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU60T

General Data

Measurements width: 2880 mm
Measurements depth: 3491 mm
Measurements height: 2847 mm

Control Unit

Model: iTNC 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 10 kW
Tool taper: SK 40

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 26m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 26m/min
Z-AXIS Movement: 560 mm
Z-AXIS Rapid traverse: 20m/min

Table

Outer length: 1000 mm
Outer width: 600 mm
Number of tslots: 9
Distance between: 63 mm
Table load: 500 kg

Tools

Slots in storage: 24
Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 315 mm

Media

Power consumption: 49 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
