➤ Used DMG CMX 1100V For Sale | gindumac.com

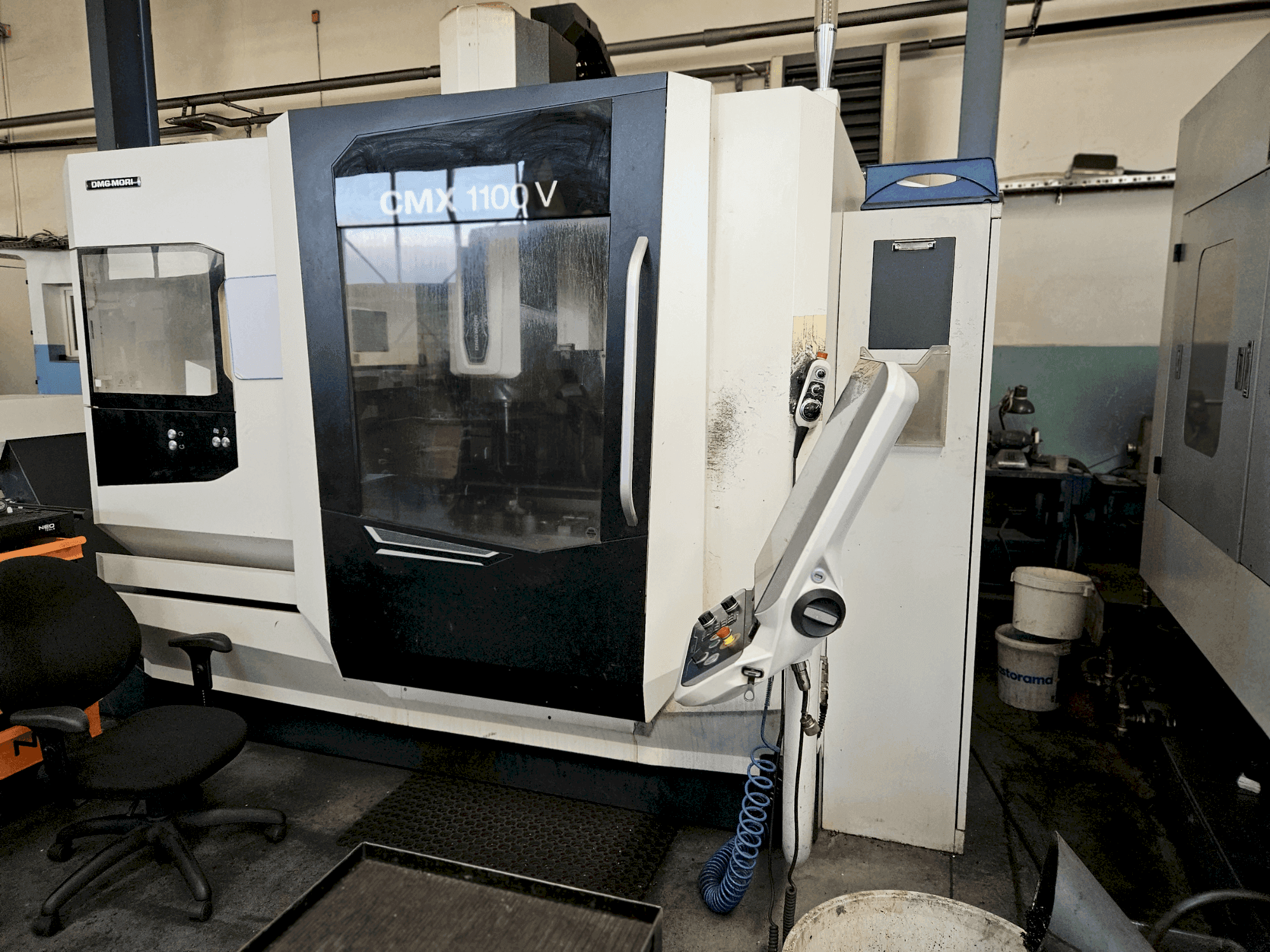

This 3-axis DMG CMX 1100V vertical machining center was manufactured in 2020. It features a spindle speed range of 20 to 15000 rpm, a tool clamping force of 9 kN, and a maximum table load of 1000 kg. The table clamping surface measures 1400 x 560 mm. Ideal for precision machining, buy this DMG CMX 1100V vertical machining center. For more information about this vertical machining center, please reach out to us.

Overview

brand: DMG
year: 2020
MODEL: CMX 1100V
production hours: 7453
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DMG CMX 1100V

Control Unit

Model: 19″ DMG MORI SLIMline with SIEMENS

Main drive

Spindle speed range: 20-15000 1/MIN
Tool taper: SK40

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1400 mm
Outer width: 560 mm
Min distance between vertical spindle and table: 120 mm
Max distance between vertical spindle and table: 630 mm
Table load: 1000 kg

Clamping unit

Clamping force: 9 kN

Additional Equipment

- Tool Magazine: 30-position with double gripper
- Coolant-Air Switching: Via M function (external)
- Production Package 1: Internal coolant supply at 12 bar / Scraper-type chip conveyor with a 250-liter tank (left side)
- Work area flushing with M function / Spray gun / Manual control panel (handwheel) / Automatic work area roof (controlled by M function)
- 4-color signal lamp / Preparation for Oil Mist Extractor
- Tool Loading/Unloading: Through magazine door during machine operation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C-frame mechanical design
- - Direct measuring system for x, y, z axes, includes linear scales with air purge for the measurement system
- - Spindle inlinemaster® with speed range: 20 to 15,000 rpm
- - Tool taper: sk40 din69871 with big plus connection
- - Main drive ac: 20 kw (40% dc) / 14. 5 kw (100% dc)
- - Torque: 121 nm (40% dc) / 84 nm (100% dc)
- - Oil mist lubrication for spindle bearings
- - Cooling unit: 150 w for main drive
- - Precision probing package: renishaw probes for siemens control

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
