- DMG CTX 510 eco lathe

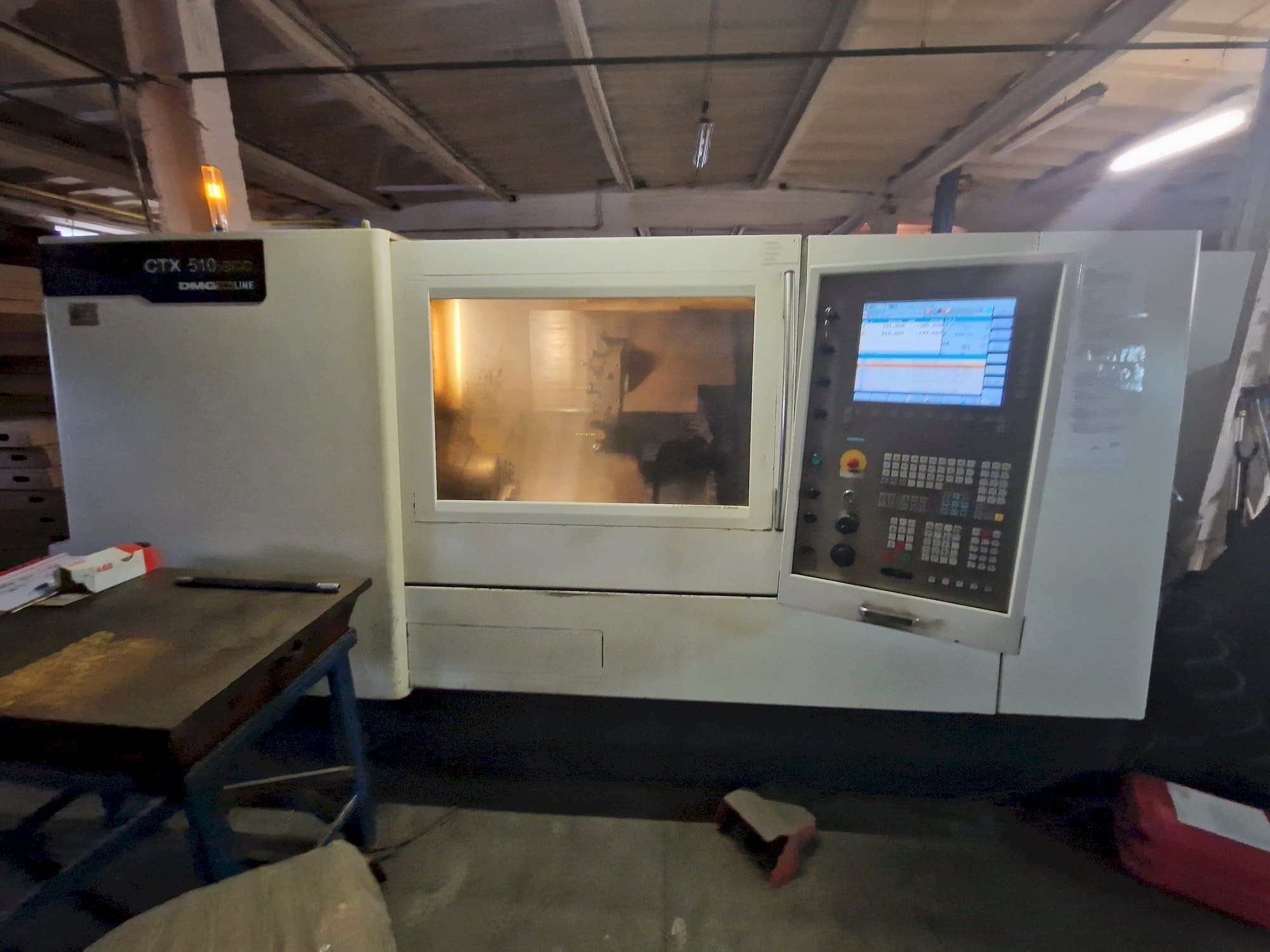

This DMG CTX 510 eco lathe was built in Poland in the year 2009. It is equipped with a DMG panel with Siemens 810D powerline and ShopTurn control unit. The machine has a spindle speed of 3250 rpm.
Overview
- brand: DMG
- year: 2009
- MODEL: CTX 510 eco
- application type: Turning
- Location: Poland
- machine type: Lathe
- availability: Sold
- control unit brand: DMG
Technical Information - DMG CTX 510 eco
Control Unit
- Brand: DMG
- Model: Siemens 810D
Main drive
- Spindle speed range: 3250 1/MIN
Additional Information
- Technical Machine Benefits:
- - Max. Swing diameter: 680 mm
- - Max. Swing diameter above cross-guideway: 465 mm
- - Max. Turning diameter: 465 mm
- - Cross travel (x): 300 mm
- - Longitudinal travel (z): 1050 mm
- - Bar capacity: 76 mm
- - Spindle diameter in the front bearing: 140 mm
- - Chucks: 250 mm
- - Power output (40% / 100% dc): 33(2) / 22(2) kw (ac)
- - Max. Torque (40% / 100% dc): 630(2) / 420(2) nm
- Qualitative Machine Benefits:
- - Number of tool stations: 12
- - Driven tool stations: 6 shaft diameter (according to din 69880): 40 mm
- - Power output (40% dc) at 4,000 rpm: 8. 4(2) kw
- - Max. Torque (40% dc): 20(2) nm
- - Max. Rotational speed: 4,000 rpm
- - Tailstock
- - Machine weight with a chip conveyor: 8100 kg
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
