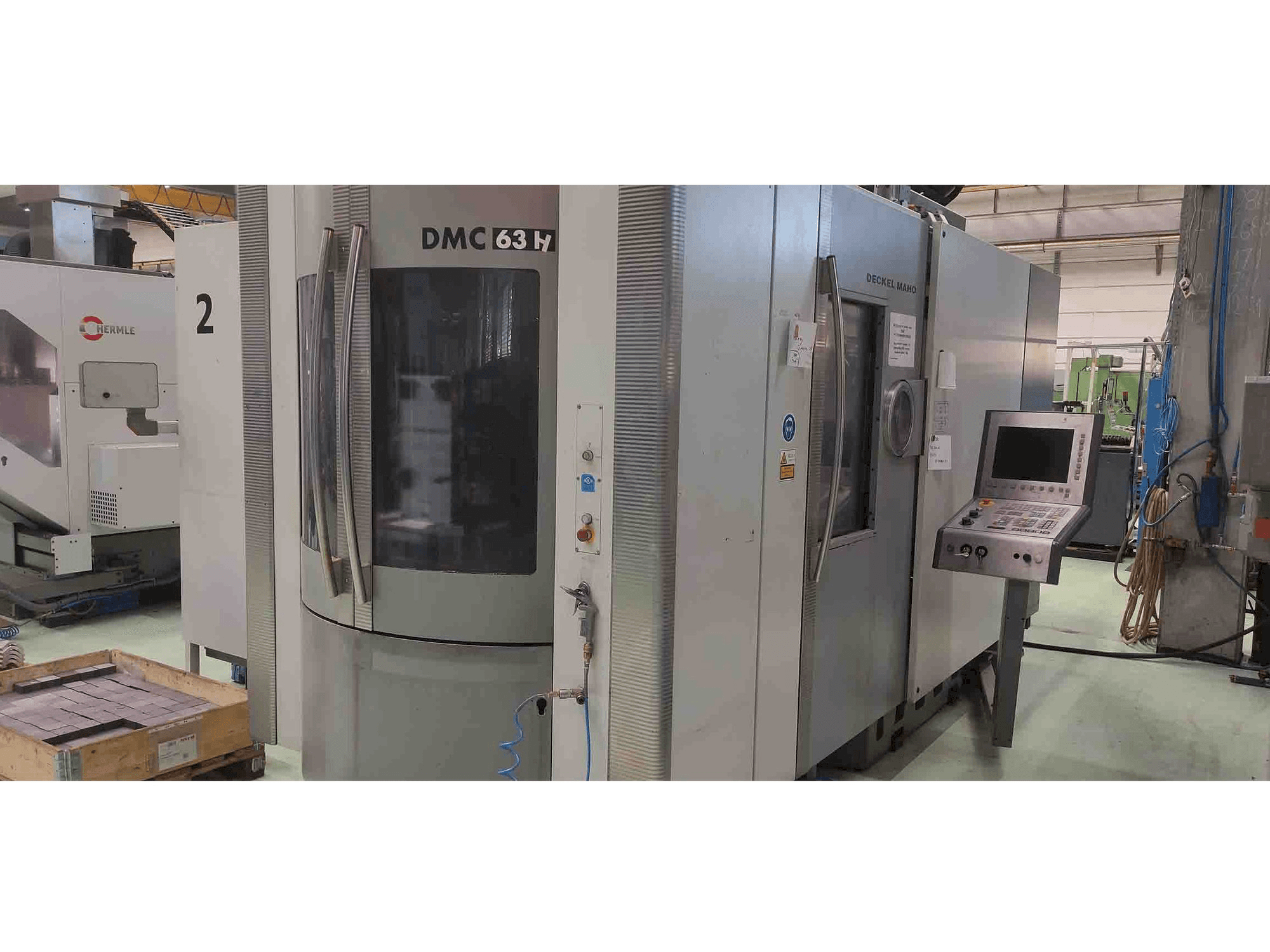

DMG DMC63H Horizontal Machining center

This DMG DMC63H Horizontal Machining center was manufactured in the year 2004. It is equipped with a SINUMERIK 840D powerline control unit and has 4 axis. The machine has a spindle speed of 20000 rpm and has 2pcs. pallets, 1x operation manual, 1x control documentation and 1x electrical documentation as additional equipment.

Overview

brand: DMG
year: 2004
MODEL: DMC63H
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - DMG DMC63H

General Data

Machine weight: 15300 KG

Control Unit

Model: 840D powerline

Main drive

Spindle speed range: 20000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 560 mm

Tools

Type of tool holder: HSK 63

Media

Main electronic connection: 400 V
Chip conveyor: Yes

Additional Equipment

- 2pcs. pallets additionally
- 1x operation manual
- 1x control documentation
- 1x electrical documentation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2-fold pallet changer
- - Pallet size 400x500mm ( special pallet with t-slots )
- - Feeds x,y,z.... 80m/min
- - Ball screw x,y,z
- - Drill breakage control ( via laser)
- - Chain magazine for 90 tools
- - Additional control panel at the loading station of the tool magazine
- - Internal coolant supply form a-d with vacuum rotaion filter vrf250/1250
- - Pressure increase at the high pressure pump to 60bar adjustable via pressure steps
- - Rotoclear viewing window
Qualitative Machine Benefits:
- - Spray gun at pallet changer
- - Oil and emulsion mist separator
- - Operating mode 4
- - Signal lamp
- - The machine was used exclusively for machining of aluminum parts. 2-3shift operation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
