➤ Used DMG DMU 50 - Vertical Machining Center

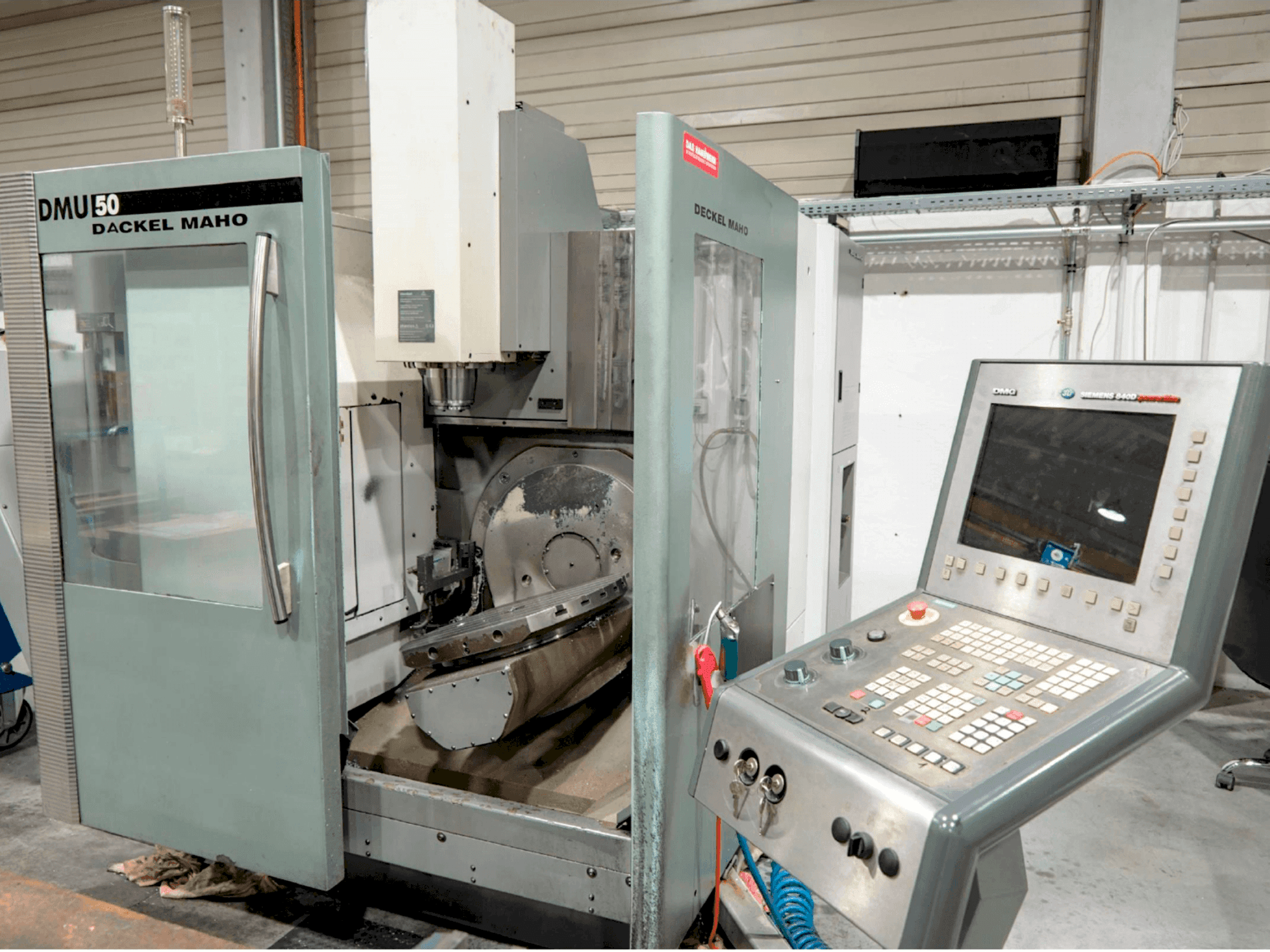

This DMG DMU 50 Vertical Machining Center was manufactured in the year 2006 in Germany and has 40536 production hours, of which 13279 are spindle hours. It is equipped with a Siemens 840 D control unit and has 3+2 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: DMG
year: 2006
MODEL: DMU 50
production hours: 40536
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG DMU 50

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 3+2

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 400 mm
B-AXIS Movement: -5° / +110 MM
C-AXIS Movement: 360° MM

Table

Outer length: 630 mm
Outer width: 500 mm

Tools

Slots in storage: 30
Max weight: 6 kg
Max tool diameter: 130 mm
Max tool length: 300 mm
Type of tool holder: SK40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 9 kw at 100% ed, 13 kw at 40% ed
- - Rapid traverse: 24m/min in x-, y- and z-axis
- - Direct path measuring system in all 3 axes
- - Chain with double gripper (power package)
- - Blum laser for tool measurement
- - Heidenhain workpiece measuring probe
- - Rinsing gun
- - Electronic handwheel
- - Hinged belt chip conveyor
- - Operating mode 3, operating mode 4
Qualitative Machine Benefits:
- - Signal lamp led 4 coloured
- - Major repairs carried out: 07. 07. 2022
- - Spindle exchange, due to wear
- - Complete new spindle installed (original dmg), spindle therefore as good as new
- - Ball screw y - axis renewed ,ball screw x - axis renewed
- - B-axis clamping renewed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
