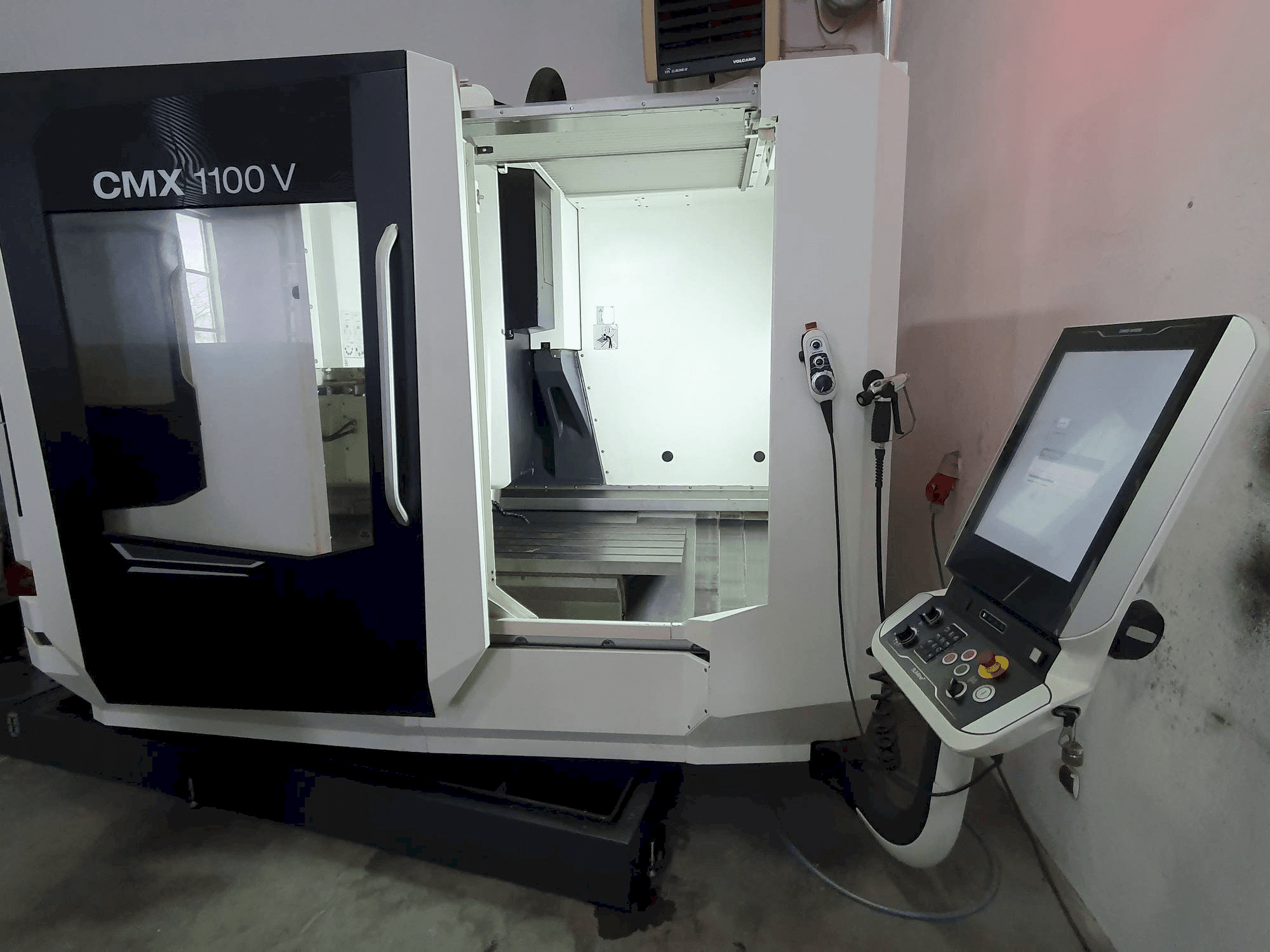

DMG MORI CMX 1100 V

This DMG MORI CMX 1100 V Vertical Machining Center was built in the year 2018. It has been on for 2025 hours, of which 1021 are spindle hours. This 3 axis machine operates through a Siemens Sinumeric 840 + 19" DMG MORI SLIMline control unit. It can work with a spindle speed up to 12000 rpm. This machine includes cooling trought the spindel with high pressure pump.

Overview

brand: DMG MORI
year: 2018
MODEL: CMX 1100 V
production hours: 2025
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CMX 1100 V

General Data

Measurements width: 4038 mm
Measurements depth: 2757 mm
Measurements height: 2935 mm
Machine weight: 5830 Kg

Control Unit

Model: Sinumeric 840
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: SK DIN 69871
Number of axis: 3

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 1000 Kg

Table

Outer length: 1400 mm
Outer width: 560 mm
Min distance between vertical spindle and table: 120 mm
Max distance between vertical spindle and table: 630 mm
Table load: 1000 Kg

Tools

Slots in storage: 30 pcs
Max weight: 8 Kg
Max tool diameter: 80 mm – 130 mm
Max tool length: 130 mm
Type of tool holder: SK40 / BT40

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 32 kVA

Additional Equipment

- Cooling trought the spindel with high pressure pump.
- Manual flushing gun
- Extended remote control
- PowerProbe 40 optical
- Scrap conveyer: No
- Tolling: No

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Multi-touch control unit + 3d visualisation
Qualitative Machine Benefits:
- - Machine is in a perfect condition
- - Only 2025 working hours
- - Ready for tests
- - No repairs or services yet
- - Fully documented

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
