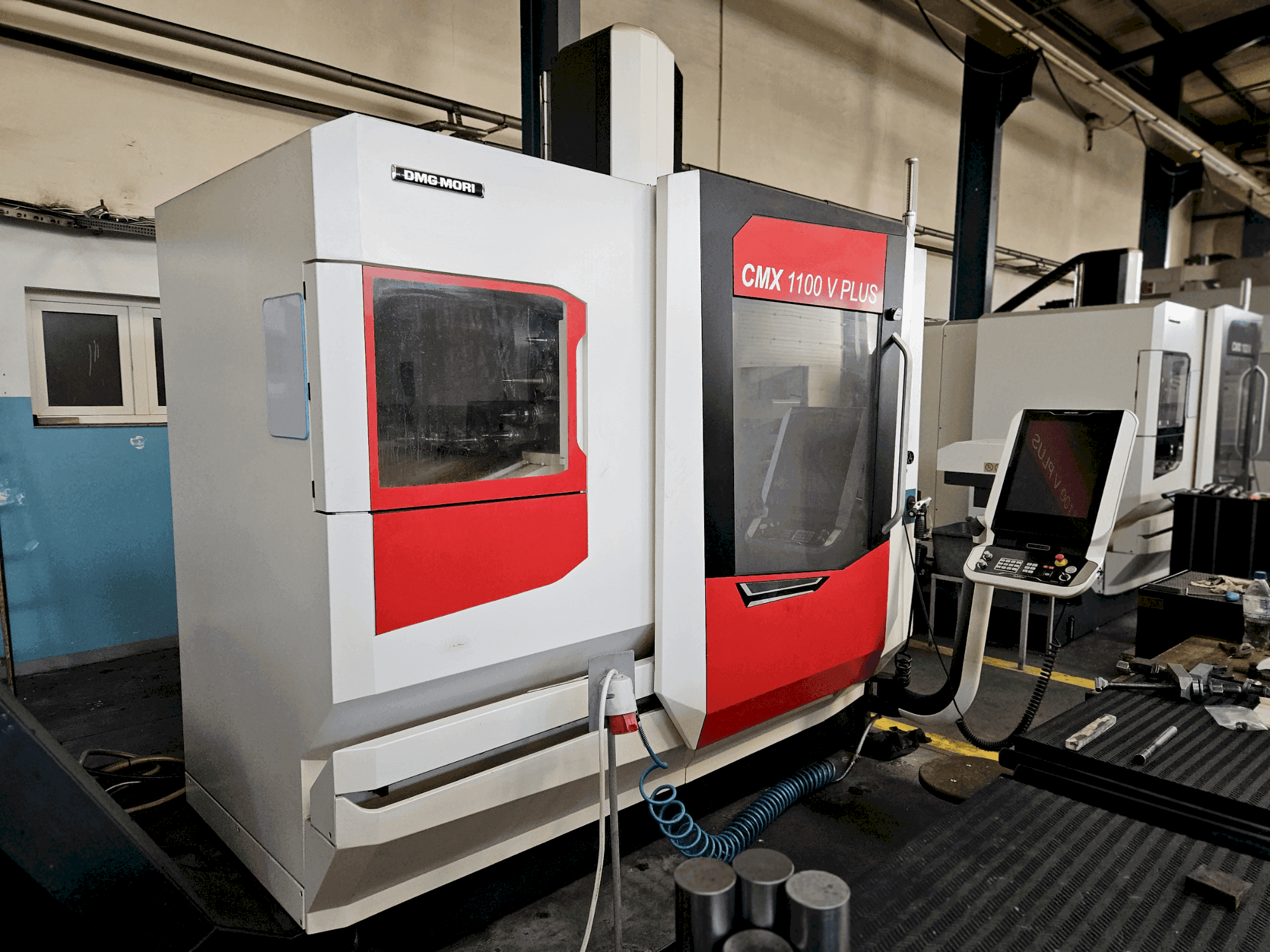

➤ Used DMG MORI CMX 1100 V For Sale | gindumac.com

This 3-axis DMG MORI CMX 1100 V was manufactured in 2019 and features a robust C-Frame design. It offers a spindle speed range of 20 to 12000 rpm and a power output of 13 kW. The machine has a large table clamping surface of 1400 x 560 mm and can handle a maximum load of 1000 kg. Ideal for precision machining, buy this DMG MORI CMX 1100 V vertical machining centre. Contact us for further details regarding this vertical machining centre.

Overview

brand: DMG MORI
year: 2019
MODEL: CMX 1100 V
production hours: 5404
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DMG MORI CMX 1100 V

Control Unit

Model: 19″ DMG MORI SLIMline with HEIDENHAIN

Main drive

Spindle speed range: 20-12000 1/MIN
Spindle motor power: 13 kW (40% ED), 9 kW (100% ED)
Tool taper: SK40 DIN69871

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1400 mm
Outer width: 560 mm
Min distance between vertical spindle and table: 120 mm
Max distance between vertical spindle and table: 630 mm
Table load: 1000 kg

Clamping unit

Clamping force: 9 kN

Additional Equipment

- Renishaw Touch Probe Kit: For HEIDENHAIN control
- Tool Magazine: 30-position chain magazine with double gripper
- Machine Protection Control: MPC 2.0

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C-frame mechanical design
- - Torque: 83 nm (40% ed), 57 nm (100% ed)
- - Direct measuring system for x, y, z axes: includes linear scales with air purge for the measurement system

Extra information

- Machine still under power / Production Package 1: Includes the following options: Internal coolant supply at 12 bar Scraper-type chip conveyor with a 250-liter tank (left side) Work area flushing with M function Spray gun Manual control panel (handwheel) Automatic roof for the work area (controlled by M function) 4-color signal lamp

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
