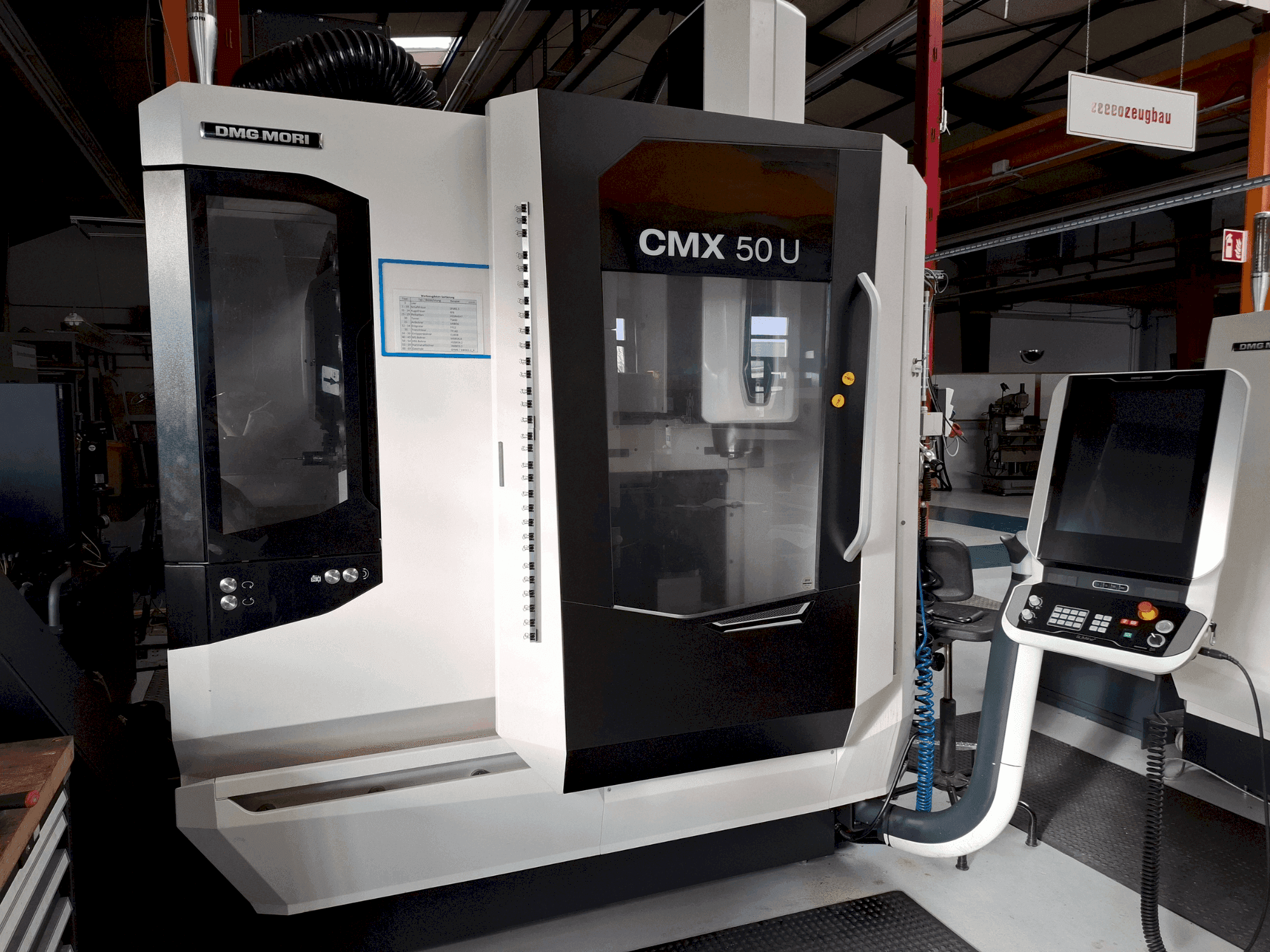

DMG MORI - CMX 50UDE-MIL-DMG-2019-00003

Additional Equipment

• - Coolant Spray Gun
• - Infrared Measurement Probe
• - Paper Band Filter with Tank Capacity 600L
• - Chip Conveyor (Scraper Band) with Tank Capacity 250L (Left)
• - Internal Coolant Supply 40 Bar
• - Bed and ATC (Automatic Tool Changer) Flushing via M-function
• - Oil and Emulsion Mist Separator
• - Cabin Roof
• - Blow Air through Spindle Center (can be activated)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Tool magazine for 30 tools with double gripper
  • - Speed range: continuously programmable (20–12000 rpm)
  • - Rated power (100% duty cycle): 9 kw
  • - Maximum spindle torque (40% duty cycle): 83 nm
  • - Rated torque (100% duty cycle): 57 nm
  • - Feed rate up to 30000 mm/min (continuously programmable)
  • - Rapid traverse: 30 m/min
  • - Footprint (l × w): 5500 × 6020 mm

Extra information

• - Chip Conveyor: Dimensions: Length: 3070 mm, Width with coolant tank: 1636 mm, Height: 1360 mm Weight: 525 kg Tank Capacity: 250 liters Belt Filter System: Dimensions: Length: 1816 mm, Width: 1331 mm, Height: 1803 mm Filling volume: 600 liters Internal Coolant Supply: Pressure: 40 bar Flow rate: 19 l/min Oil/Emulsion Mist Separator: Dimensions: Length: 778 mm, Width: 400 mm, Height: 520 mm Weight: 50 kg Airflow: 600 m³/h Motor Power: 0.5 kW
