- DMG MORI DMF 360-11 Vertical Machining center

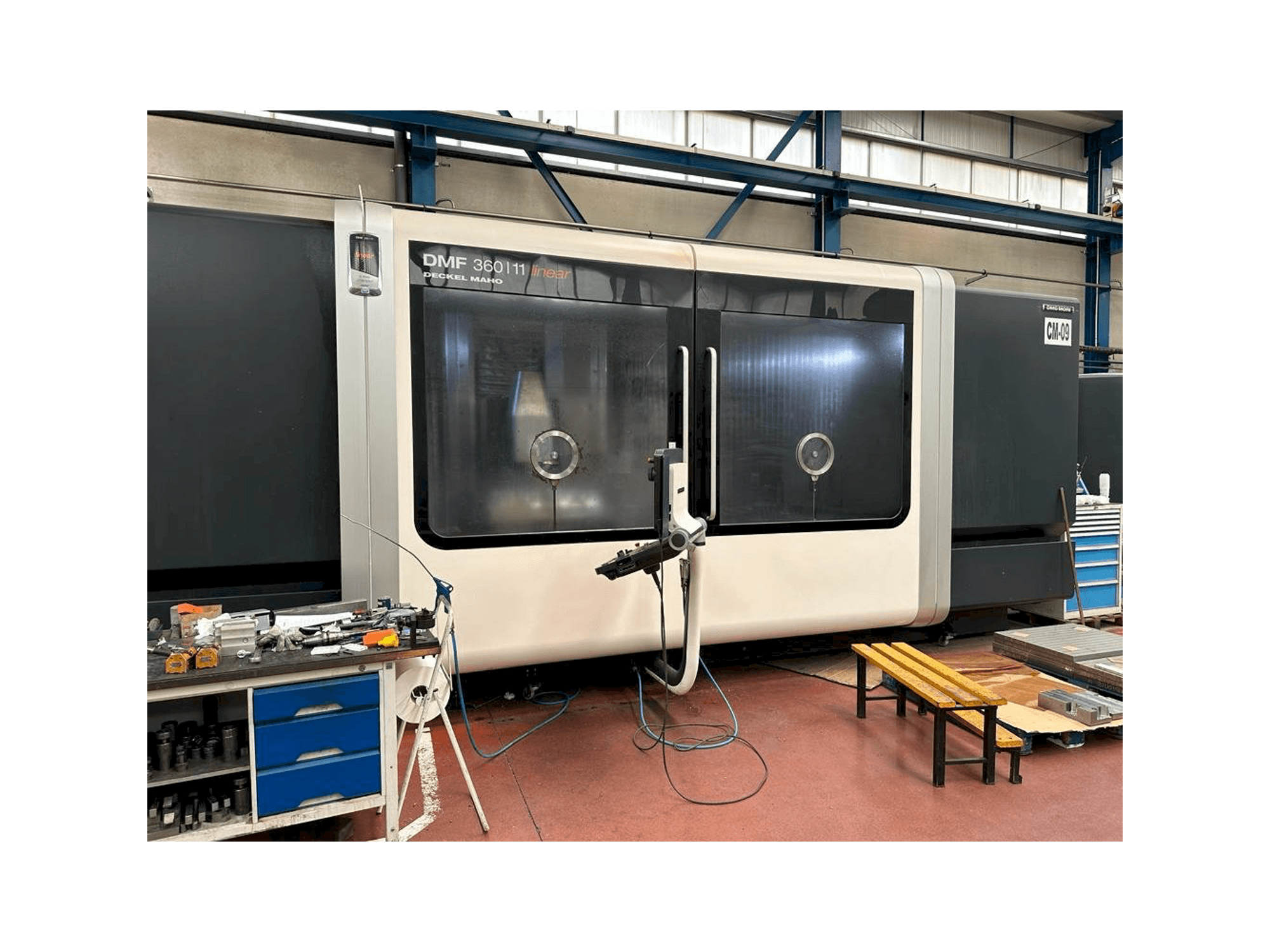

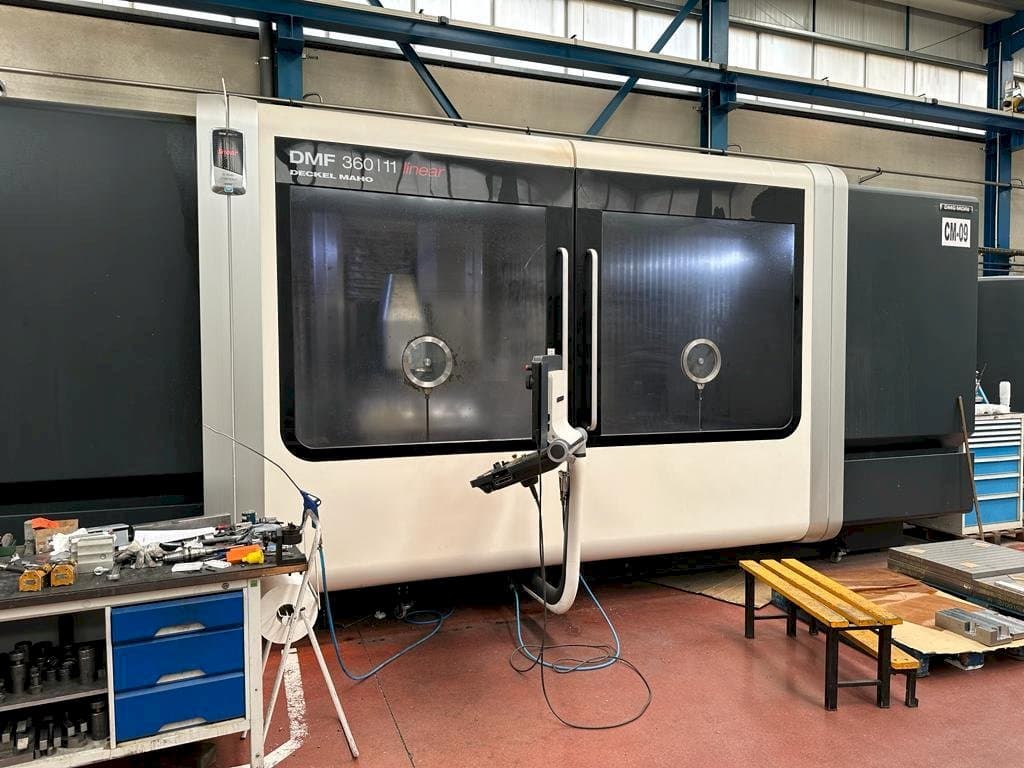

This DMG MORI DMF 360-11 Vertical Machining Center was manufactured in the year 2014 in Germany. It is equipped with a HEIDENHAIN control unit and has 5 axis. The machine has a spindle speed of 18000 rpm
Overview
- brand: DMG MORI
- year: 2014
- MODEL: DMF 360-11
- application type: Milling
- Location: Spain
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMF 360-11
General Data
- Measurements width: 7941 mm
- Measurements depth: 10940 mm
- Measurements height: 3042 mm
- Machine weight: 30200 kg
Control Unit
- Brand: HEIDENHAIN
- Model: iTNC 530
Main drive
- Spindle speed range: 18000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 3600 mm
- Y-AXIS Movement: 1100 mm
- Z-AXIS Movement: 900 mm
Workpiece
- Workpiece weight: 5000 kg
Table
- Outer length: 4200 mm
- Outer width: 1100 mm
Tools
- Slots in storage: 60
- Max weight: 12 kg
- Max tool diameter: 160 mm
- Max tool length: 360 mm
- Type of tool holder: BT40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Inner coolant supply 40bar/600l
- - Infrared measuring probe ts 649 dmg
- - Tool laser measuring blum
- - Preparation 3d quickset
- Qualitative Machine Benefits:
- - Very good condition
- - Little working hours
- - the table is not included
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
