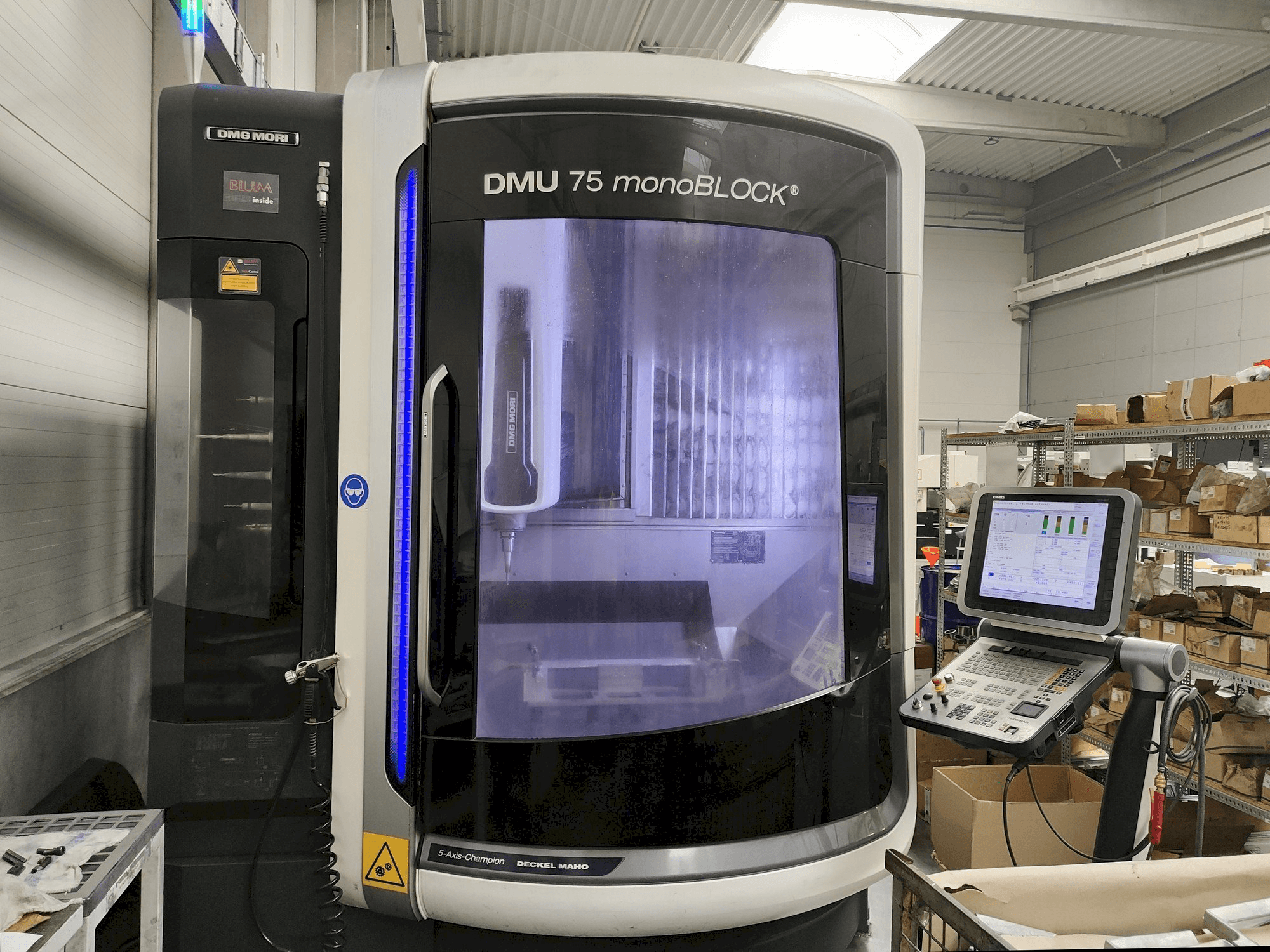

DMG MORI - DMU 75 monoBLOCKPL-MIL-DMG-2014-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Tool change system double gripper - chain magazine 60 magazine pockets
  • - Nc swivel rotary table
  • - Table plate c-axis: d 650 mm, integrated in rigid table 800 mm x 650 mm
  • - Mpc machine protection control
  • - Chip trough with integrated coolant tank 500 l
  • - Renishaw infrared measuring probe pp60 optical (omp 60) sk 40
  • - Tool measurement in the blum workspace. Laser vertical measurement of tool length and diameter.
  • - 3d quickset expansion pack flashing light, 4-color
  • - Chip conveyor with 600 l coolant unit, paper filter
  • - Internal coolant supply 40 bar / 23 l / min through the center of the spindle
• Qualitative Machine Benefits:
  • - Machine in very good, working condition, ready for tests. Full history service.
  • - Coolant nozzles for vertical headstock 15 nozzles for liquid, 5 for air spray gun with a pump 1 bar / 40 l / min
  • - Separator for oil or emulsion mist mechanical filter capacity 600 m3 / h
  • - Application tuning cycle atc programmable setting of feed parameters for machining tasks accuracy / area / speed
  • - Accessories from dmg powertools
  • - 3d model of the machine in step format for integration into the cad system
  • - Loading by crane from above up to over the table center as standard
  • - Accessibility and ergonomics: door opening 1. 310 mm, tool loading from the front during the main time
  • - Lowest footprint with 7. 5 m2 installation area

Payment Terms

• Payment in advance

• Asset Financing
