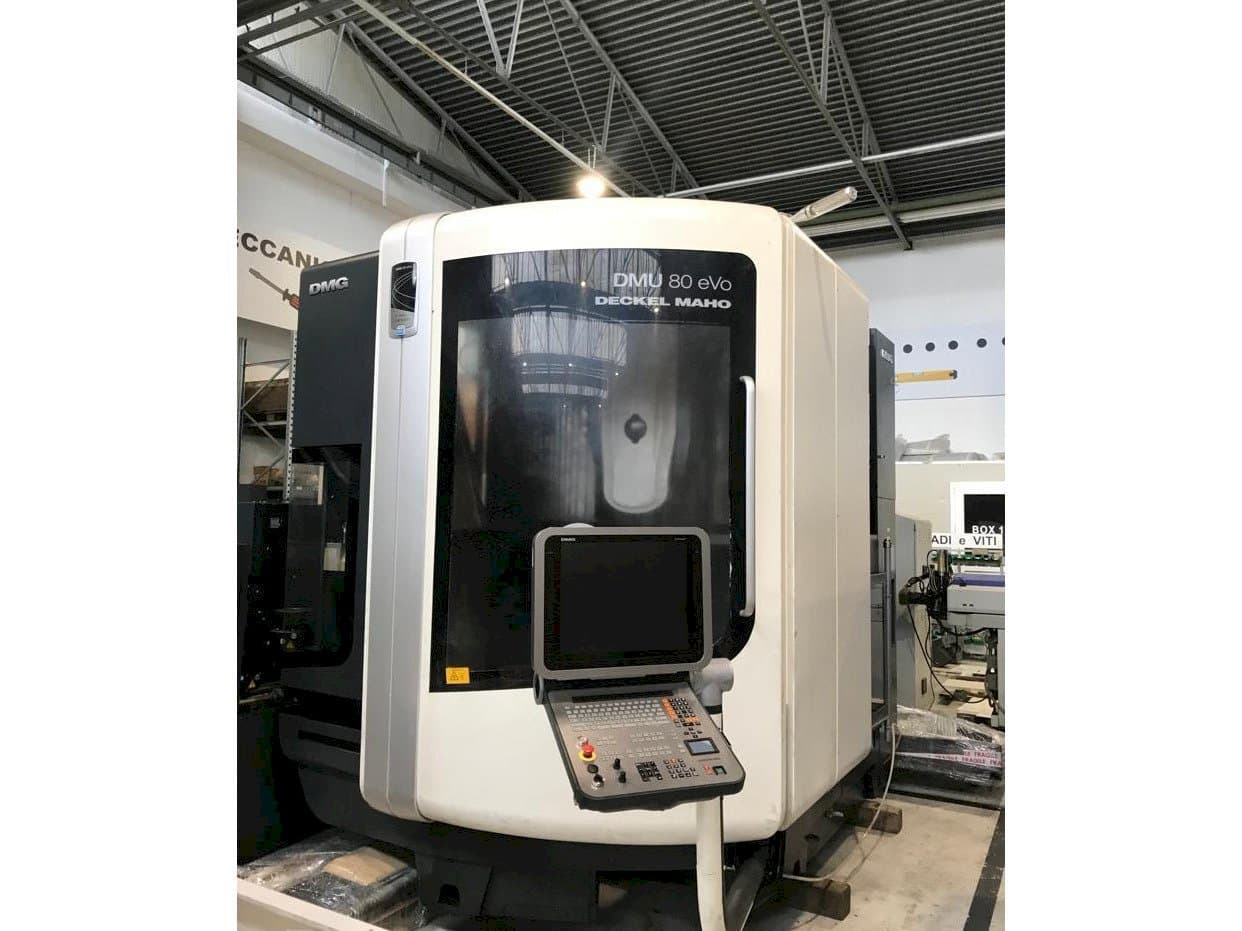

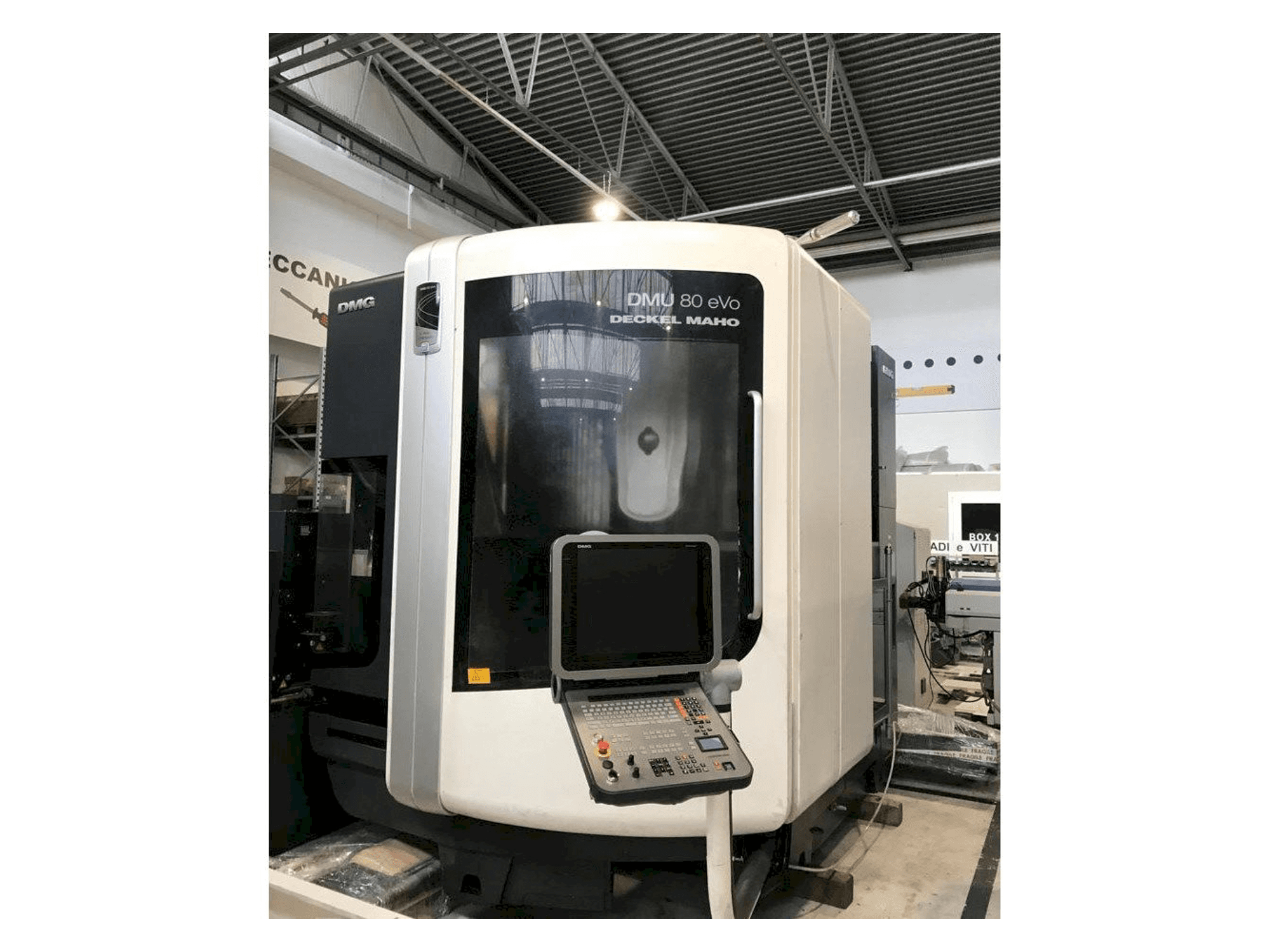

DMG MORI DMU 80 EVO Vertical Machining center

This DMG MORI DMU 80 EVO Vertical Machining center was made in 2011 in Germany and has 31887 production hours. It is equipped with a HEDEINHAIN TNC 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: DMG MORI
year: 2011
MODEL: DMU 80 EVO
production hours: 31887
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMU 80 EVO

Control Unit

Model: TNC 530 CNC
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 35/25 kw
Tool taper: ISO 40
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 550 mm
B-AXIS Movement: -5 / + 110° MM
C-AXIS Movement: 360° MM

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque nm 130/87 (40% / 100%)
- - Standard feed drives xyz 50m/min.
- - Feed drives dynamic xyz 80m/min.
- - Clamping area 800x700 mm.
- - Load on table kg. 600
- - Table torque axis speed rpm 80/150
- - B / c axis speed rpm 50/50
- - Tool magazine 30 pos.
- - Coolant through the spindle 40 bar
- - Feeler
Qualitative Machine Benefits:
- - Laser length/diameter setting
- - Paper filtering system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
