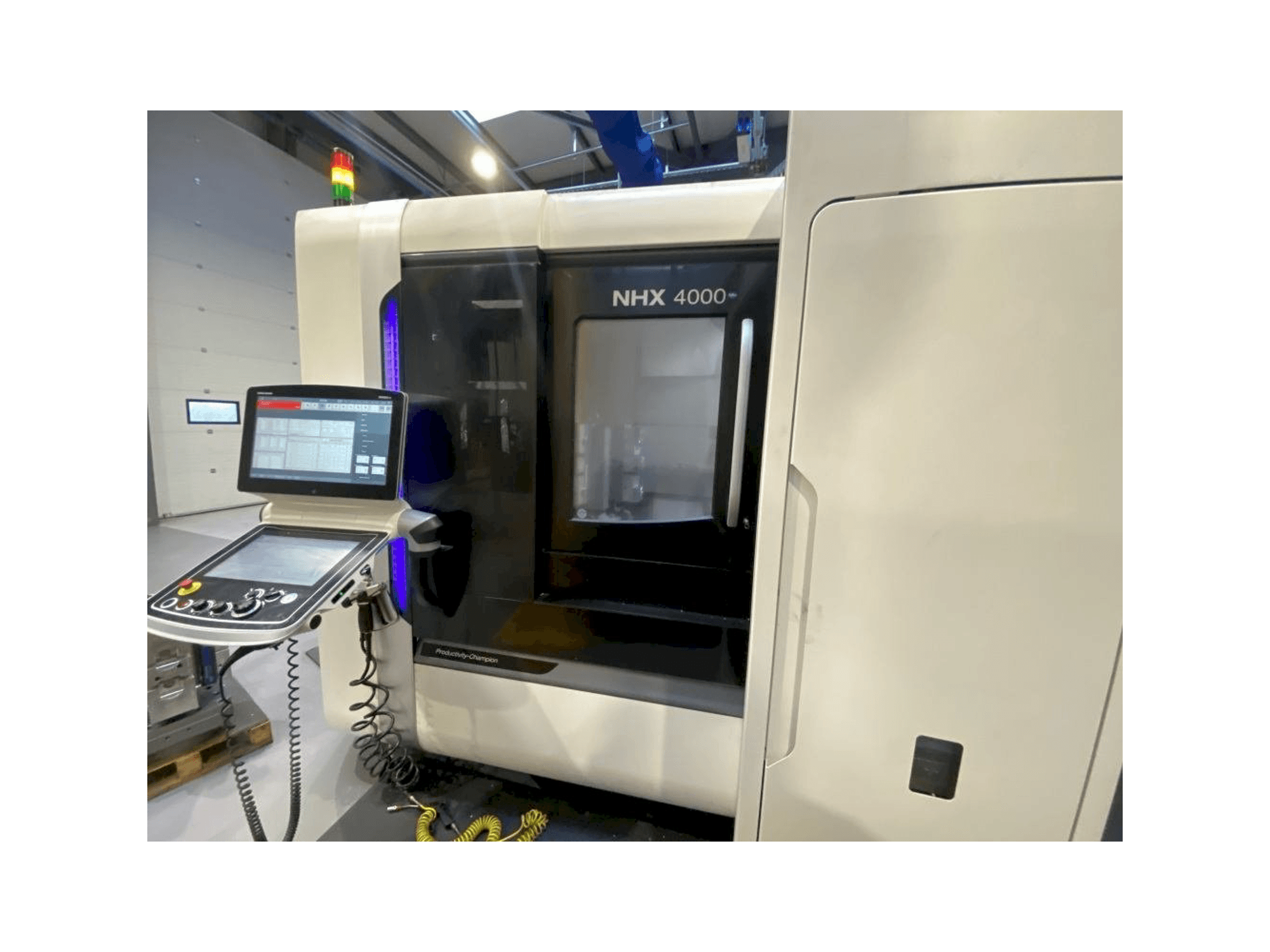

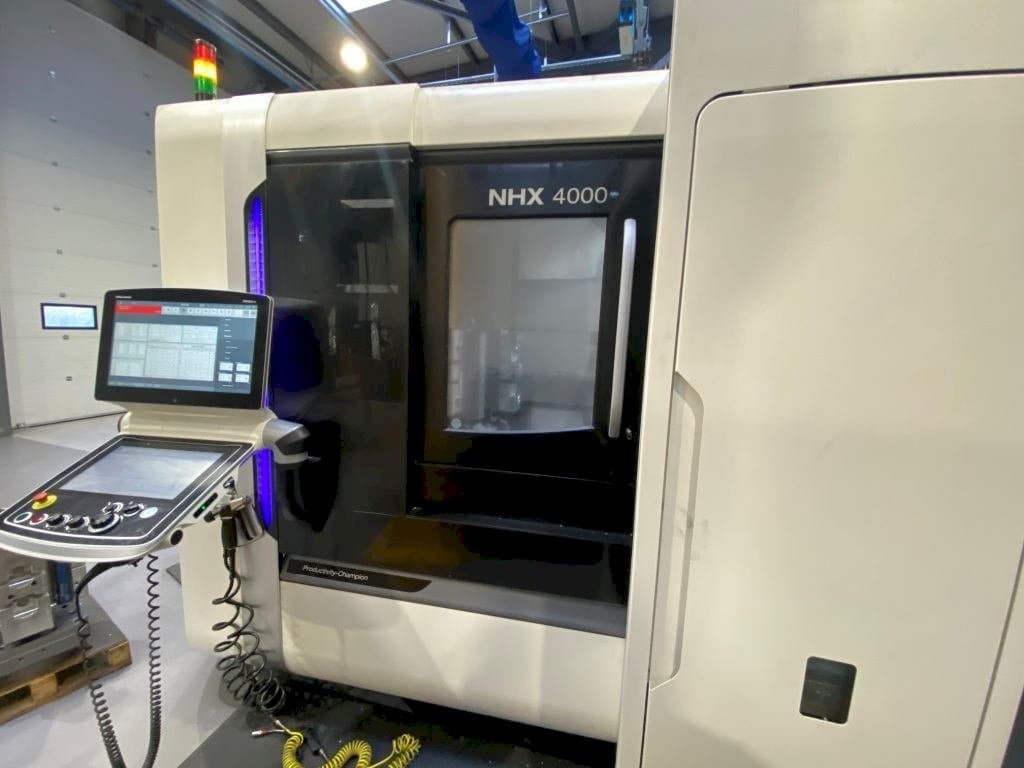

DMG MORI NHX 4000 Horizontal machining center

This DMG MORI NHX 4000 Horizontal machining center was built in Japan in 2017. It has 14339 production hours. It is operated through a control unit of the same brand. This machine works with a spindle speed up to 15000 rpm. Includes 4 pallets, a filtermist extraction unit and tool holders. It has been working for medical device industry. Machine in excellent condition.

Overview

brand: DMG MORI
year: 2017
MODEL: NHX 4000
production hours: 14339
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - DMG MORI NHX 4000

General Data

Measurements width: 4181 mm
Measurements depth: 2680 mm
Measurements height: 2540 mm
Machine weight: 7850 KG

Control Unit

CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 660 mm
B-AXIS Movement: 360º in 0.001º Increments MM

Workpiece

Workpiece drm: 630 mm
Workpiece x: 400 mm
Workpiece y: 400 mm
Workpiece z: 900 mm
Workpiece weight: 400 KG

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 60
Max weight: 12 KG
Max tool diameter: 170 mm
Max tool length: 450 mm
Type of tool holder: BT 40

Media

Main electronic connection: 200V / 50Hz
Power consumption: 37.3 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 4 pallets
- Filtermist Extraction Unit
- Tool Holders
- 46 kVA Transformer
- Hydrajet 80 Bar High Pressure Coolant Unit
- Resy Coolant Filtration Unit
- MPG

Additional Information

Machine history

Material type: Steel
End product: Medical device parts
Industries: Medical device industry

Machine Benefits

Technical Machine Benefits:
- - 80 bar high pressure coolant
- - Through spindle coolant
- - High power machine
Qualitative Machine Benefits:
- - Machine manual
- - Machine in excellent condtion

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
