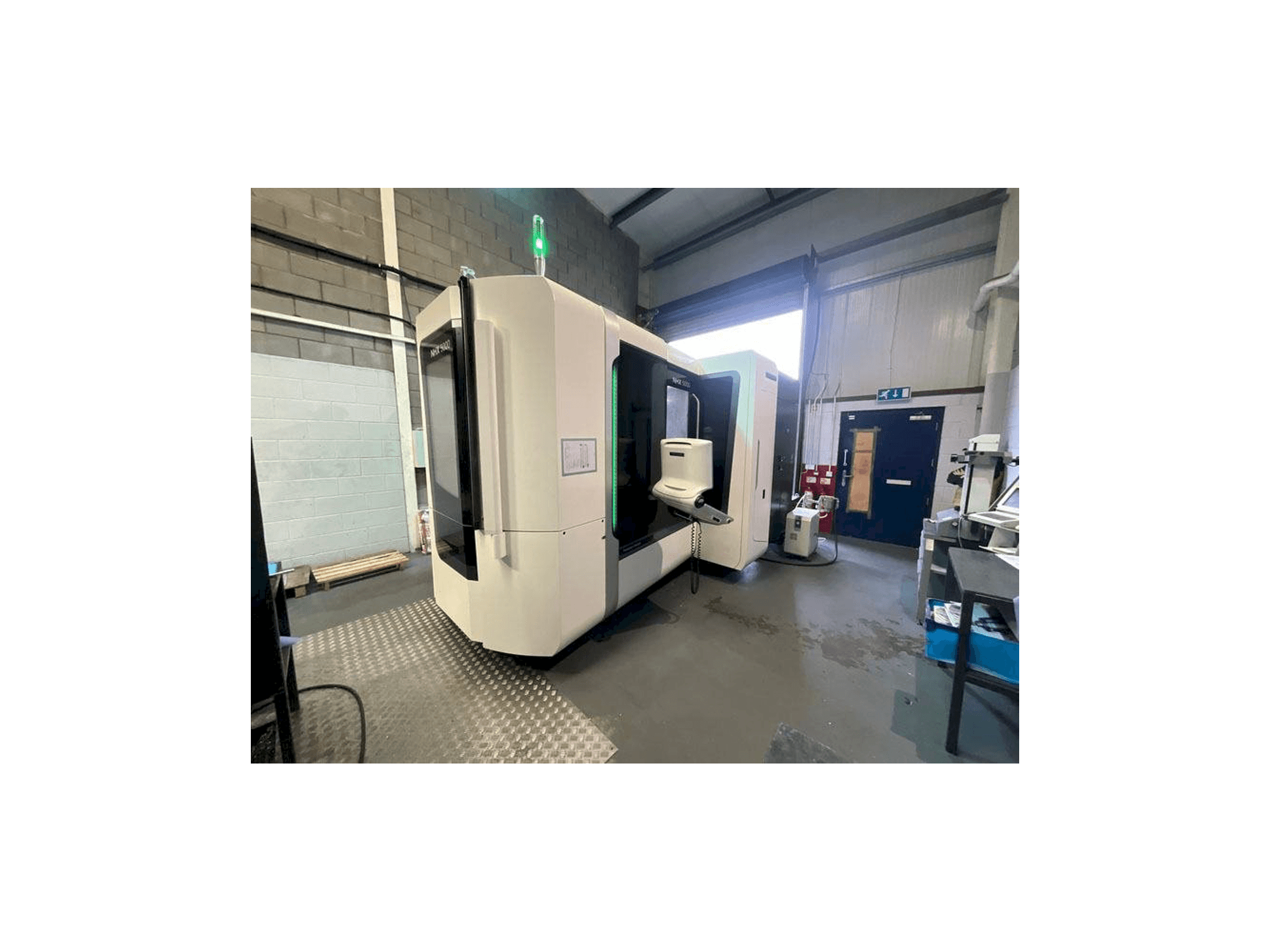

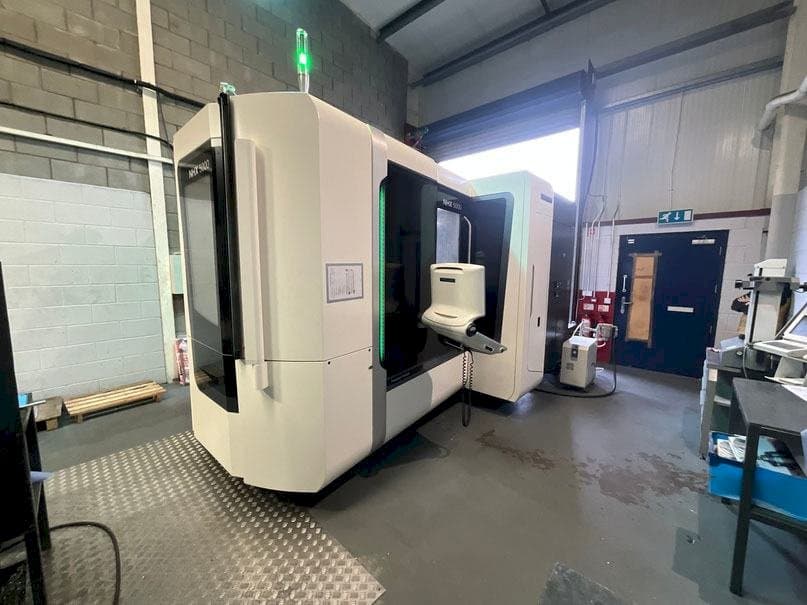

DMG MORI - NHX 5000GB-MIL-DMG-2018-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Spindle option: center through-spindle coolant system
  • - Spindle option: retention knob: special (center-through) (spindle no. 407/24 taper)
  • - Table: full 4th axis rotary table
  • - Pallet size : 500x500 mm
  • - Options for table: pallet edge locator
  • - Tool magazine: tool storage capacity 60 tools (spindle no. 40 7/24 taper
  • - Coolant supply: usable coolant type: water-soluble, coolant supply: chip conveyor outside machine (rear discharge, drum filter type) (std coolant supply: through-spindle coolant system (mounted on coolant tank) (center through, 7. 0 mpa)
  • - Coolant supply: coolant chiller (separate type), coolant supply: fixture washing coolant for setup station, coolant supply: mist collector interface (duct dia 200 mm (7. 875 in) + electric parts for hvs-220)
  • - Measuring / monitoring: tool breakage detection system (magazine)
  • - Automation: signal lamp 4 colors (red, yellow, green, blue) indicate machine status by the led color, automation: automatic door (setup station), automation: ethernet/ip interface, automation: robot interface (ethernet/ip)
• Qualitative Machine Benefits:
  • - General option: dry anchor,, general option: water-glycol chiller (chilling unit) (spindle cooling) general option: multi dry filter, general option: smc refrigerating type air dryer
  • - General option: 10 external m-codes, general option: manual pulse generator (separate type), general option: setting unit mm, general option: mvc (machine vibration control)
  • - Coolant supply: fixture washing coolant for setup station
  • - Options for control: high-speed and high-precision function
  • - Ii(high-precision contour control)
  • - Options for control: installation of high-speed skip terminal
  • - Option for control: additional workpiece coordinate systems 48 sets
  • - Option for control: program restart
  • - Option for control: manual handle interruption
  • - Option for control: interruption type custom macro, option for control: custom macro common variables 600 in total (#100-#199, #500-#999) ,option for control: coordinate system rotation ,option for control: tool offsets 400 sets in total, option for control: screen display english
