➤ Used DMG MORI NTX2500 / 1500 For Sale | gindumac.com

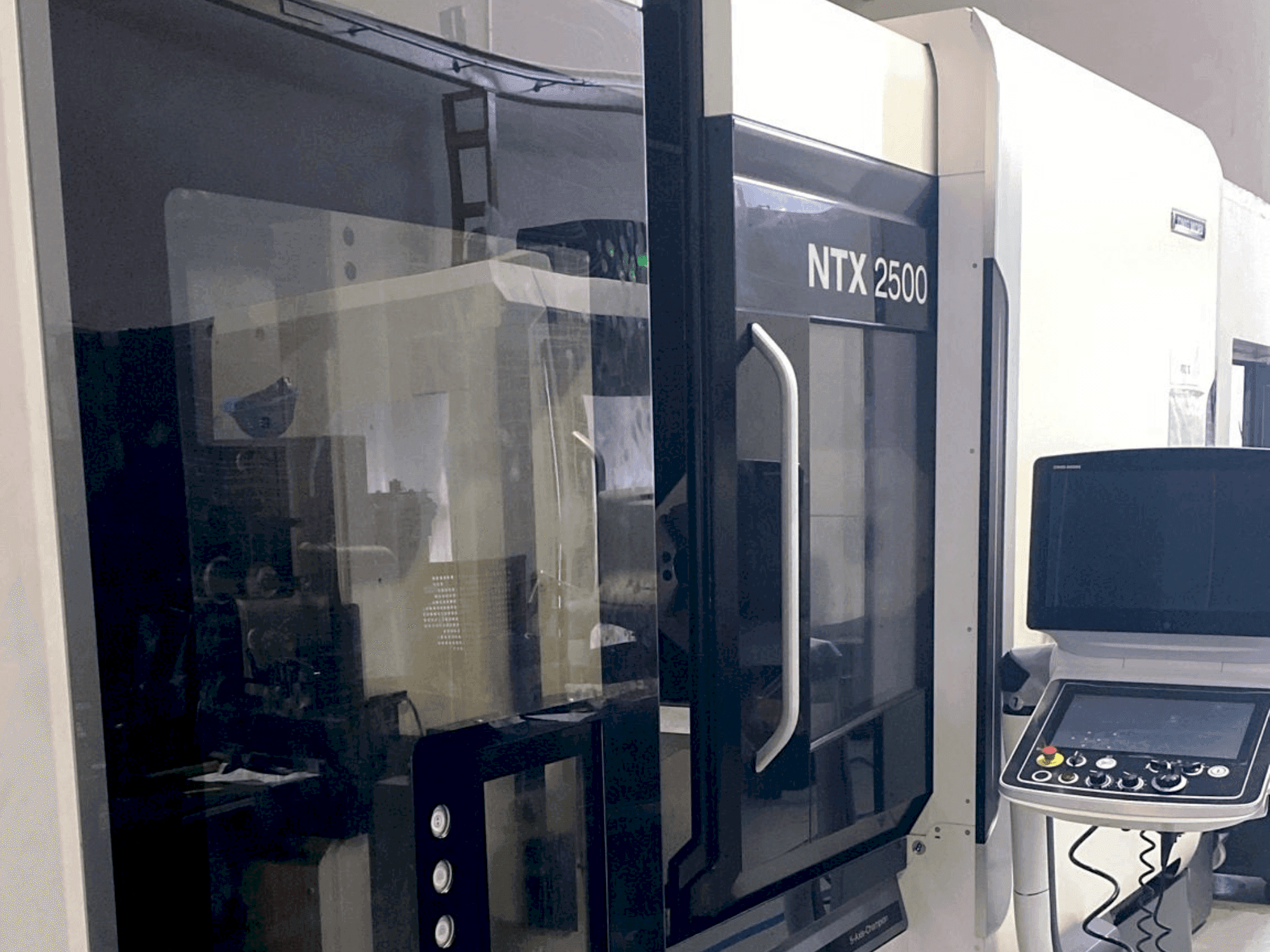

This 5-axis DMG MORI NTX2500 / 1500 mill-turn centre was manufactured in 2019. It features a high-capacity tool storage with 38 tools and a 12-station turret. Both spindles support a through-spindle hole diameter of 91 mm and a speed of 4,000 min⁻¹. The machine includes a super-high-pressure coolant system at 7 MPa and an in-machine workpiece measuring system. If you are looking to get high-quality milling and turning capabilities, consider the DMG MORI NTX2500 / 1500 machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2019
MODEL: NTX2500 / 1500
application type: Milling
Location: Turkey
machine type: Mill-Turn Centre
availability: Sold
control unit brand: FANUC

Technical Information - DMG MORI NTX2500 / 1500

Control Unit

Brand: FANUC

Main drive

Number of axis: 5

Additional Equipment

- Signal lamp: 4 colors (Red, Yellow, Green, Blue)
- Air blow for chuck (Right Spindle)
- Chip conveyor interface: Right discharge, hinge type

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 12-station bolt-tightened turret
- - Tool storage capacity: 38 tools // tool spindle speed: 12000 min⁻¹, power 23/22. 2 kw
- - Workpiece left spindle through-spindle hole diameter: 91 mm, 4000 min⁻¹
- - Workpiece right spindle through-spindle hole diameter: 91 mm, 4000 min⁻¹
- - Workpiece left spindle chuck: 12-inch hollow chuck
- - Workpiece left spindle bar work capacity: 80 mm
- - Workpiece right spindle chuck: 12-inch hollow chuck
- - In-machine workpiece measuring system: radio signal transmission type touch sensor
- - Coolant type: water-soluble coolant super-high-pressure
- - Coolant system: 7 mpa through-spindle coolant movement

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
