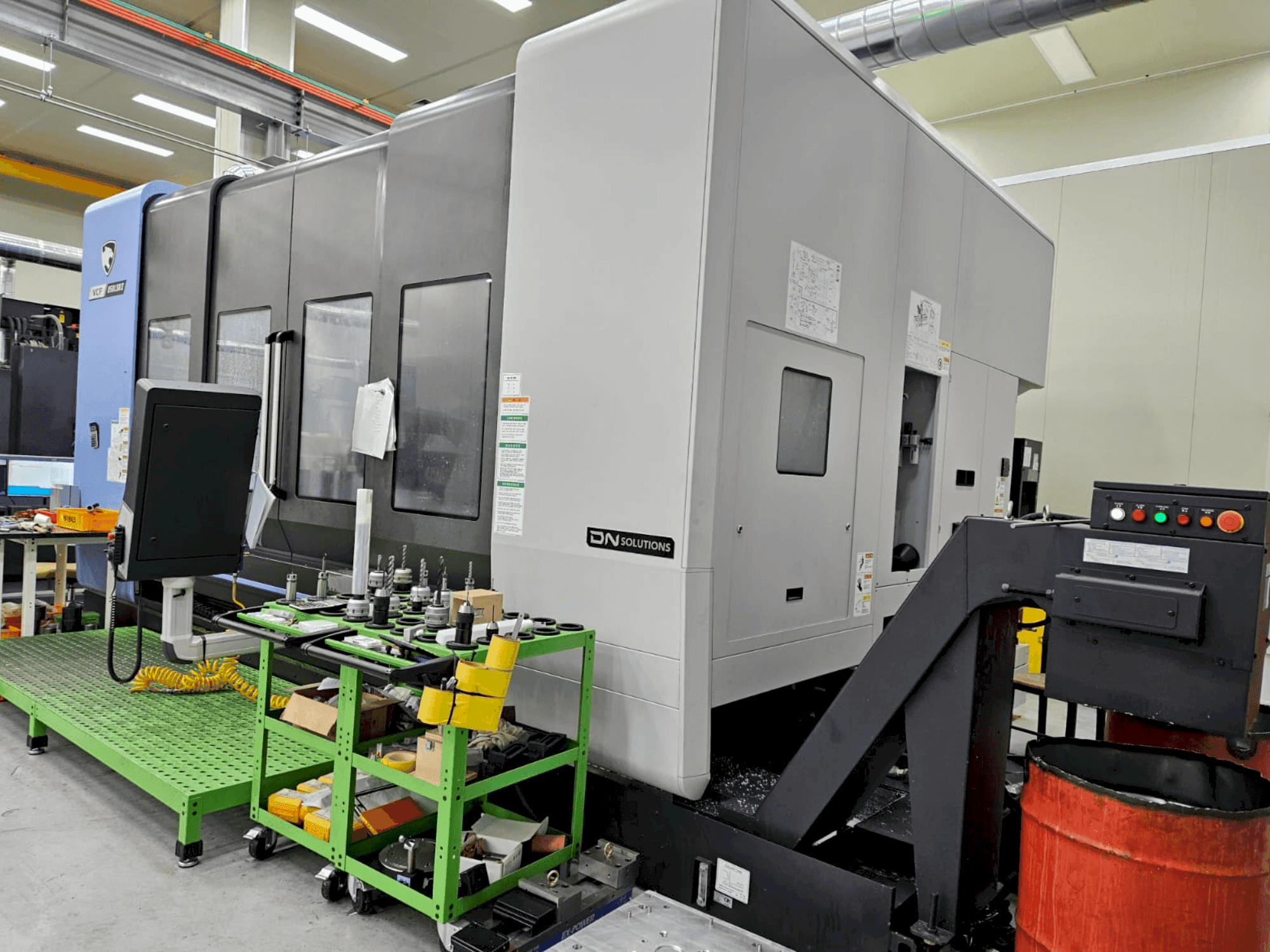

DOOSAN VCF 850LSRII Vertical Machining center

This DOOSAN VCF 850LSRII Vertical Machining center was manufactured in the year 2022 in South Korea. It is equipped with a 3,000 mm X-axis travel and controlly by a FANUC 31iB5 Plus control unit. The machine has 5-axis with a spindle speed of 12000 rpm. It is like new as only operated for 758 cutting hours. The VCF series is a perfect solution for multi-purpose machining for supreme rigidity. Machine has CE Conformity. See photo and video gallery for more impressions.

Overview

brand: DN SOLUTIONS
year: 2022
MODEL: VCF 850LSRII
production hours: 758
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DN SOLUTIONS VCF 850LSRII

General Data

Measurements width: 5440 mm
Measurements depth: 3795 mm
Measurements height: 3253 mm
Machine weight: 24000 kg

Control Unit

Model: 31iB5 Plus
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: AB112LL/15000_22/18.5 KW
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 850 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece weight: 3500 kg

Table

Inner length: 3500 mm
Inner width: 870 mm

Tools

Slots in storage: 30

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Chip conveyor (Right side_hinged type)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Linear scale : x, y, z, b, c
- - 4 axis head tilting unit : 220 degree
- - Rotary table : built in type d800mm
- - Built-in spindle type
- - Spindle head cooling system
- - Ts27r_renishaw
- - Ikc ready: renishaw (rmi-q) + s/w omp60 full set
- - Datum ball_d25
- - Flushing coolant
- - Flood coolant pump : 1. 1 kw_0. 7 mpa
Qualitative Machine Benefits:
- - Ihmi (ez i & machining cycle)
- - Power on time : 2911h
- - Run time : 857h
- - Cut time : 758h
- - Machine has ce conformity

Extra information

- Auto power off // Tool Load Monitoring // Air blower // AICC 200 blocks // Data server 2GB // Program Storage : 10240M(4MB)_1000 EA // Embedded Ethernet // 3D Coordinate Conversion // Bucket // MPG handle // Coolant gun

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
