➤ Used DONAU DANUSYS 1510 For Sale | gindumac.com

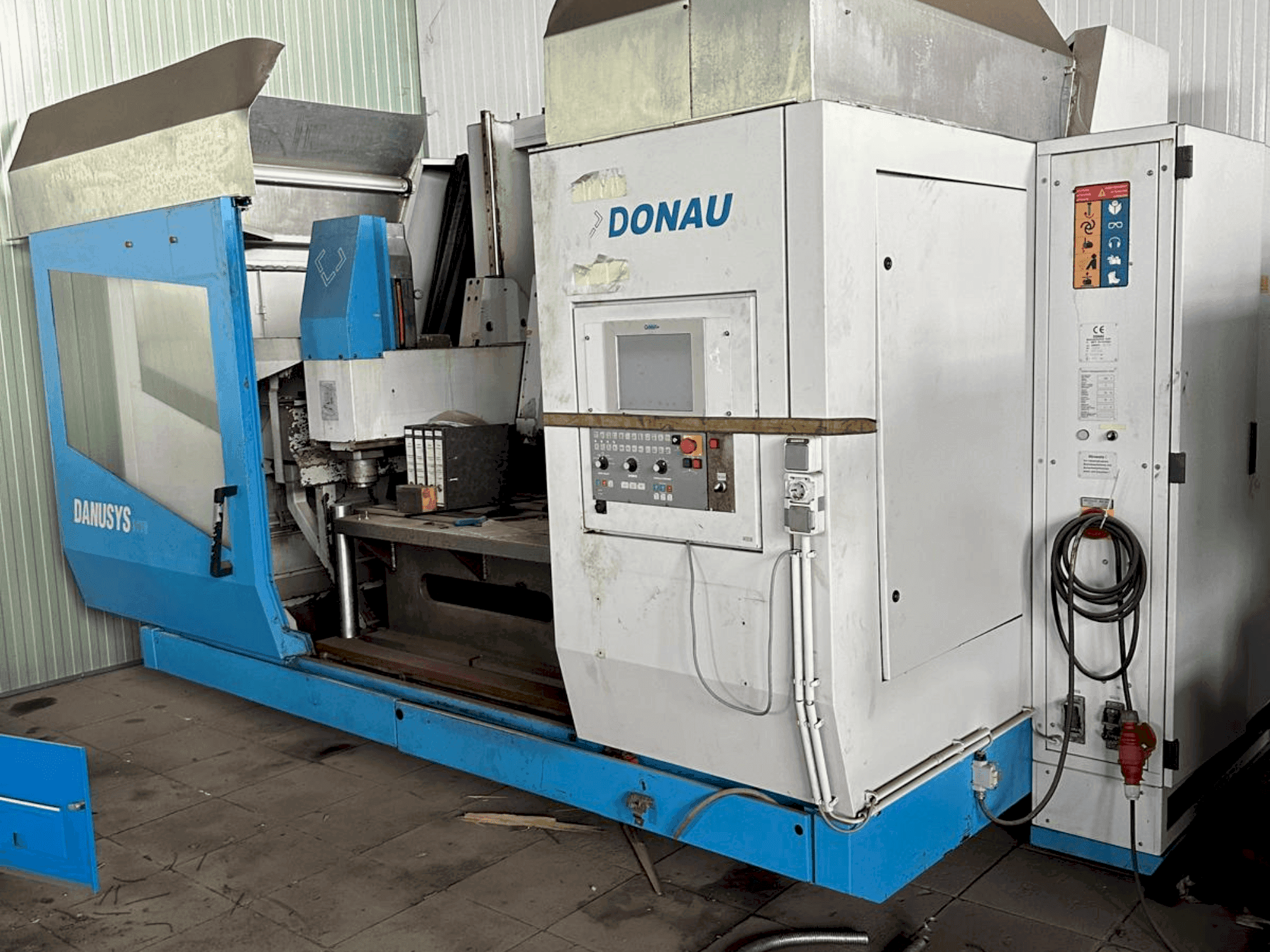

This 3-axis DONAU DANUSYS 1510 vertical machining centre was manufactured in 1999. It features a robust 11 kW power requirement, a spindle speed of 4200 RPM, and a tool magazine with an 8-tool capacity. The machine includes a coolant system and a chip conveyor, enhancing its operational efficiency. Ideal for handling large workpieces with its 1500 x 1000 mm table size. A great opportunity to buy this DONAU DANUSYS 1510 vertical machining centre. Contact us for more information.

Overview

brand: DONAU
year: 1999
MODEL: DANUSYS 1510
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DONAU DANUSYS 1510

General Data

Measurements width: 2200 mm
Measurements depth: 3900 mm
Measurements height: 3270 mm
Machine weight: 6000 kg

Main drive

Number of spindles: 1
Spindle speed range: 4200 rpm 1/MIN
Tool taper: SK
Number of axis: 3

Movement

X-AXIS Movement: 1500 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 1000 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 700 mm
Z-AXIS Rapid traverse: 20 m/min

Media

Chip conveyor: Yes

Additional Equipment

- Coolant system
- Electronic handwheel
- Documentation available

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power requirement: 11 kw
- - Table size: 1500 x 1000 mm
- - Distance from base plate to spindle nose: 670 - 1320 mm
- - Distance from worktable to spindle nose: 180 - 830 mm
- - Bore capacity: 40 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
