DOOSAN - DNM 4500CZ-MIL-DOO-2021-00001

Name: DOOSAN DNM 4500
Brand: DOOSAN
SKU: CZ-MIL-DOO-2021-00001
Price: 85000 EUR
Availability: InStock

85,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

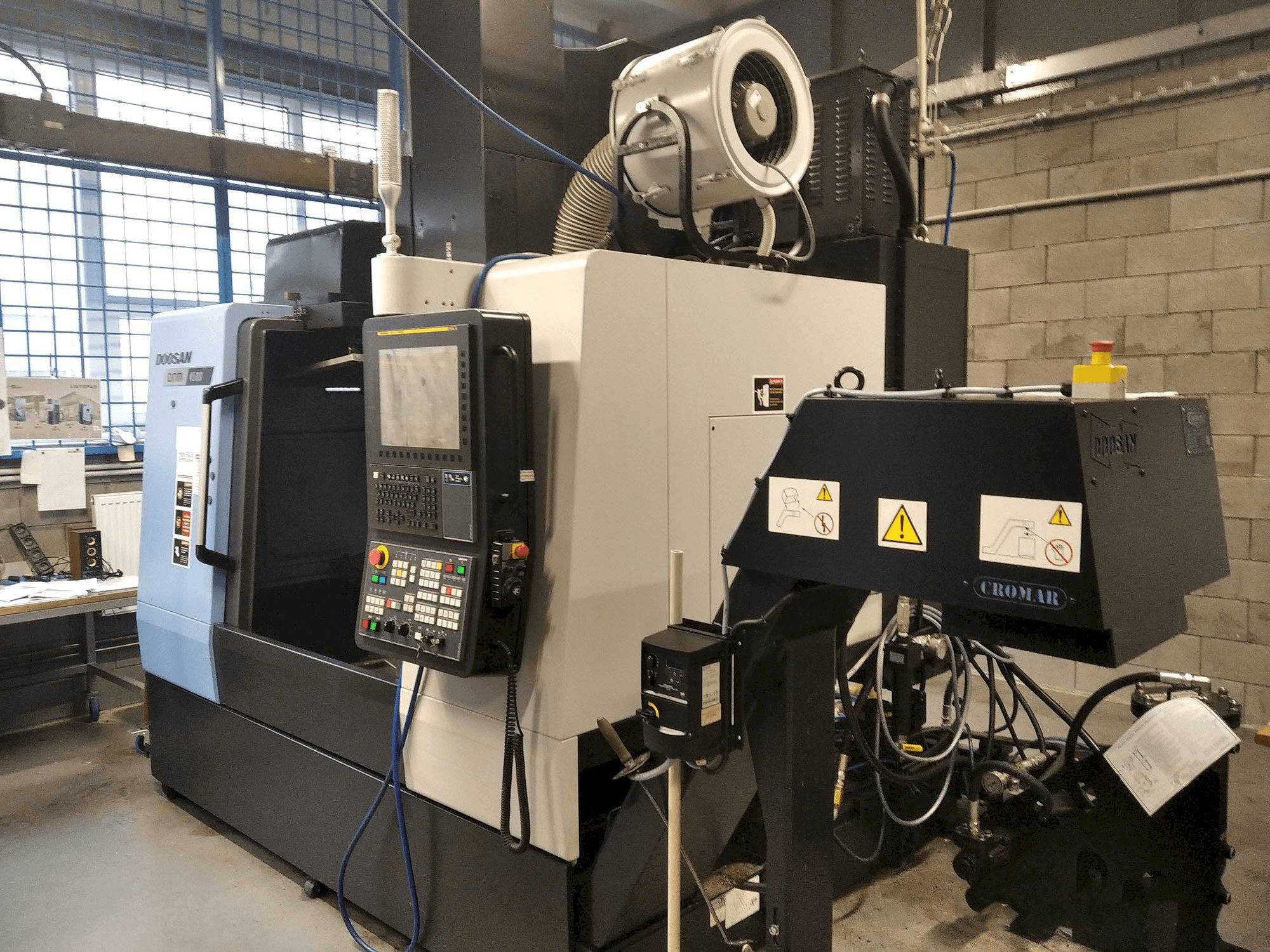

➤ Used Doosan DNM 4500 - Vertical Machining Center

This Doosan DNM 4500 Vertical Machining center was manufactured in the year 2021 in South Korea. It is equipped with a Fanuc i-Series control unit and has 4 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: DOOSAN
year: 2021
MODEL: DNM 4500
production hours: 3441
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN DNM 4500

General Data

Measurements width: 2158 mm
Measurements depth: 2615 mm
Measurements height: 2985 mm
Machine weight: 5000 kg

Control Unit

Brand: FANUC
Model: i Series

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1000 mm
Outer width: 450 mm
TSlots size: 3
Distance between: 125 mm

Tools

Slots in storage: 60
Max weight: 8 kg
Max tool diameter: 80/125 mm
Max tool length: 300 mm
Type of tool holder: ISO 40

Additional Equipment

- Tool magazine with 60 positions

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis table diameter 250 mm
- - Min-max height under spindle 150-660 mm
- - Spindle motor power 11/18. 5 kw
- - Through spindle coolant 30-70 bar
- - Tool laser probe renishaw nc4
- - Workpiece probe renishaw omp-60
- - Cutting: 1032 hours
Qualitative Machine Benefits:
- - Very good condition
- - Rake chip conveyor with built-in tank, with outlet on dx side
- - Mist collector losma
- - Slotting head with pick-up

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
