DOOSAN - DNM 500DE-MIL-DOO-2013-00001

Name: DOOSAN DNM 500
Brand: DOOSAN
SKU: DE-MIL-DOO-2013-00001
Price: 55000 EUR
Availability: InStock

55,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

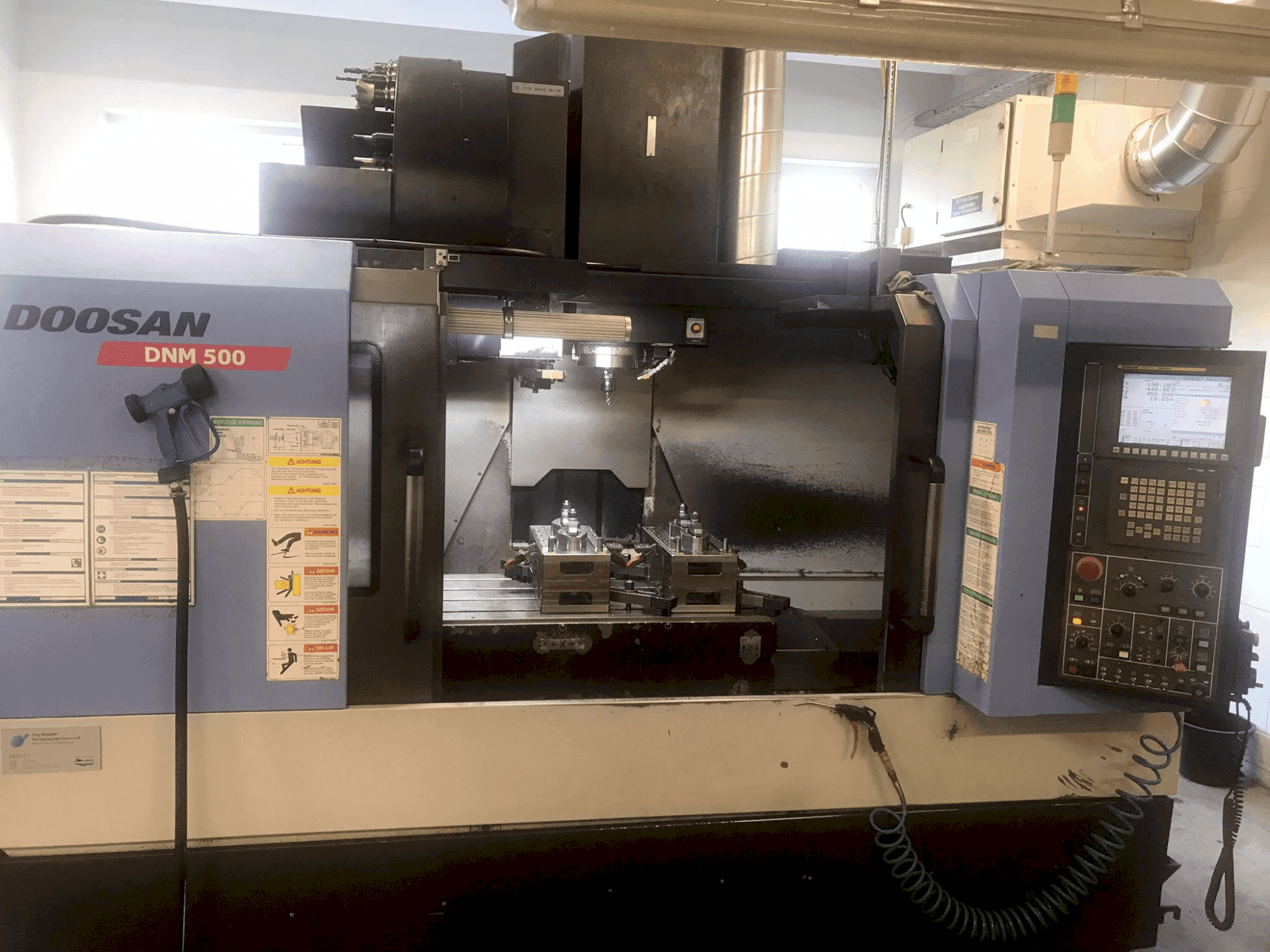

DOOSAN DNM 500 (2012) 4-axis Vertical Machining Centre

This DOOSAN DNM 500 (2012) 4-axis Vertical Machining Centre was manufactured in 2012 in South Korea. It is equipped with a 8,000 rpm spindle, BT40 tool taper, a 4th axis (lehmann rotary table - dividing head) and a FANUC control unit. The table size is 1200 x 540 mm (X-axis 1020 mm / Y-axis 540 mm / Z-axis 510 mm). As additional equipment it comes with chip conveyor and internal cooling (IKZ). The machine is in very good condition due to installation of a new spindle and refurbishment of the rotary table in 2021. The rotating union has also renewed recently in 2024. It has operated 24420 run time hours and 9802 cutting hours.

Overview

brand: DOOSAN
year: 2012
MODEL: DNM 500
production hours: 9802
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: June 2024
control unit brand: FANUC

Technical Information - DOOSAN DNM 500

General Data

Machine weight: 6500 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Tool taper: BT 40
Number of axis: 4

Movement

X-AXIS Movement: 1020 MM
Y-AXIS Movement: 540 MM
Z-AXIS Movement: 510 MM

Table

Outer length: 1200 mm
Outer width: 540 mm

Tools

Slots in storage: 30

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Various BT 40 tool holders (Weldon, collet chucks)
- 4th axis (Lehmann rotary table - dividing head)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - New spindle in 2021
- - Lehmann rotary table refurbished in 2021
- - The rotating union was renewed recently
Qualitative Machine Benefits:
- - Machine is from 12/2012

Extra information

- Run time hours: 24420 // cutting hours: 9802

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
