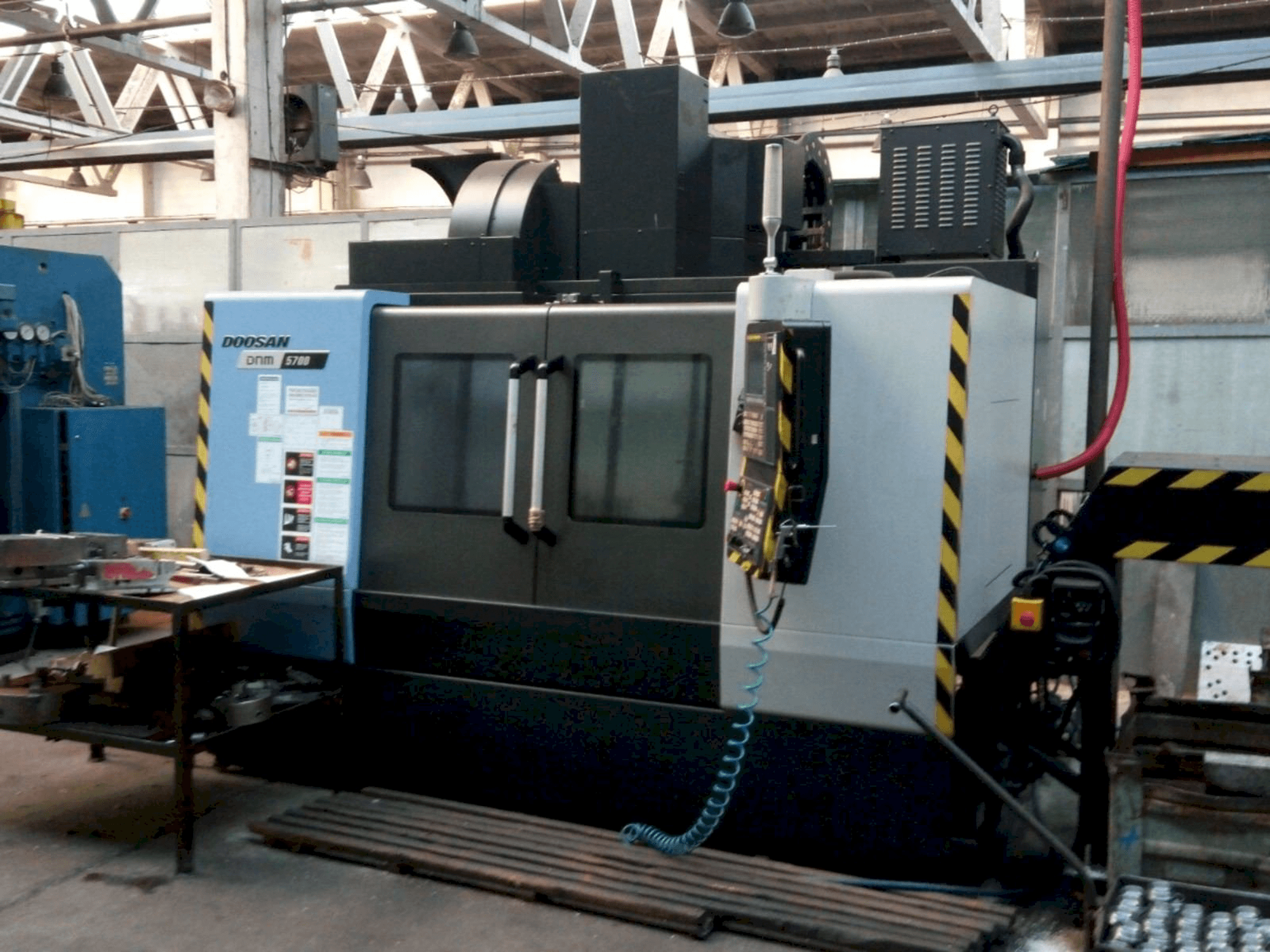

This Doosan DNM 5700 Vertical Machining Center was built in South Korea in the year 2016. It has 2848 hours of working time. It is equipped with a Fanuc i Series control unit. This machine can work with a spindle speed of 8000 rpm. The machine includes a set of tool holders.
Overview
- brand: DOOSAN
- year: 2016
- MODEL: DNM 5700
- production hours: 2848
- application type: Milling
- Location: Slovakia
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - DOOSAN DNM 5700
General Data
- Measurements width: 2413 mm
- Measurements depth: 3110 mm
- Measurements height: 2985 mm
- Machine weight: 6500 kg
Control Unit
- Brand: Fanuc
- Model: i Series
Main drive
- Spindle speed range: 8000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1050 mm
- Y-AXIS Movement: 570 mm
- Z-AXIS Movement: 510 mm
Workpiece
- Workpiece weight: 1000 kg
Table
- Outer length: 1300 mm
- Outer width: 570 mm
Tools
- Slots in storage: 30
- Max weight: 8 kg
- Max tool diameter: 80/125 mm
- Max tool length: 300 mm
- Type of tool holder: ISO 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Set of tool holders
Additional Information
- Technical Machine Benefits:
- - Simultaneous axis operation
- - Distance spindle nose/table surface 150-660 mm
- - Rapid feedrates x/y/z 36/36/30 m/min
- - Spindle motor power (cont. /15 min. ) 11/18. 5 kw
- - High pressure cooling with filter 12 bar
- - Coolant tank 310 l
- - Renishaw ts27r tool probe
- - 3 controlled axis
- Qualitative Machine Benefits:
- - Very good condition, low hours
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
