DOOSAN - DNM 650GB-MIL-DOO-2012-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Doosan DNM 650 Vertical Machining Center

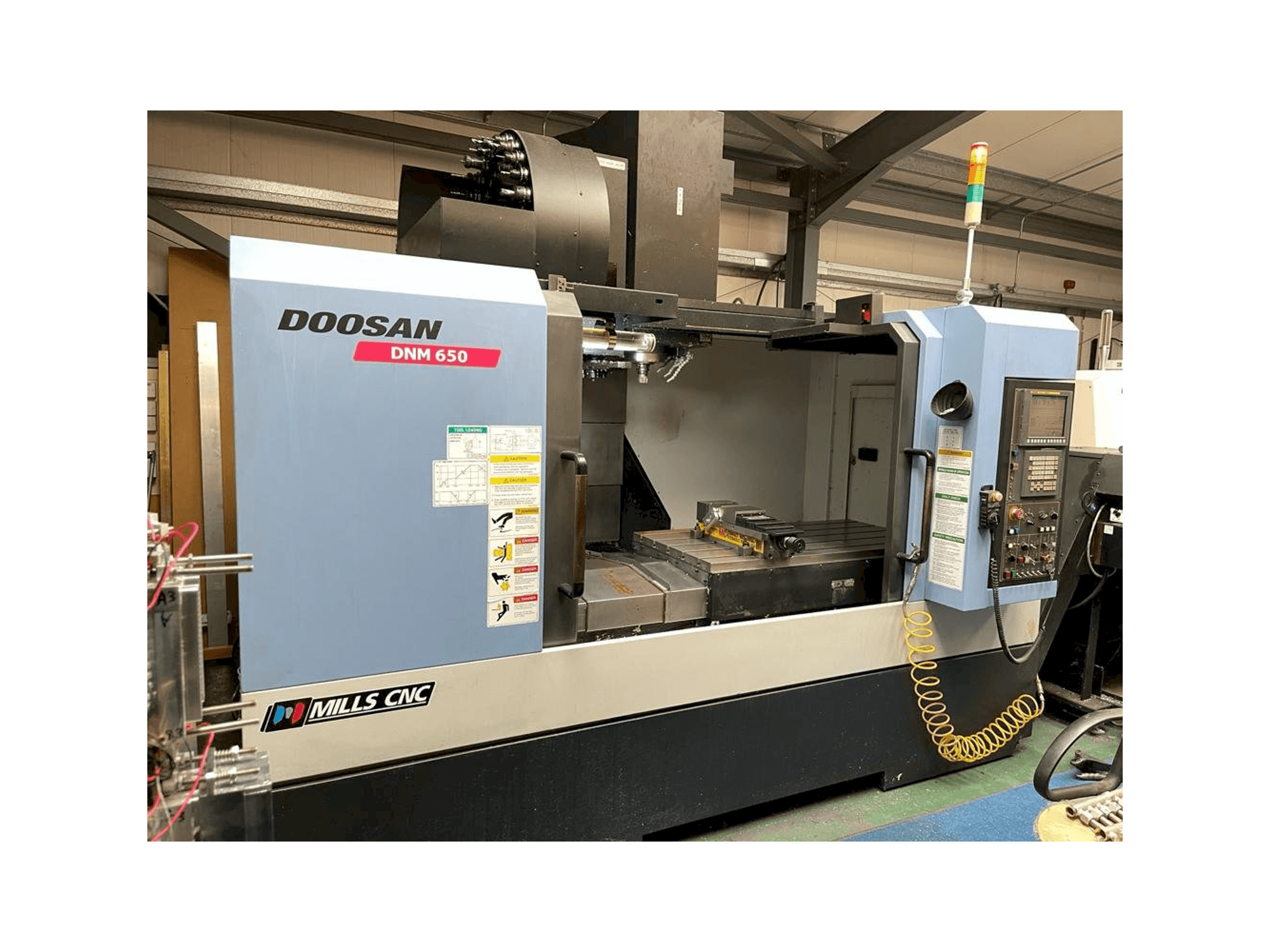

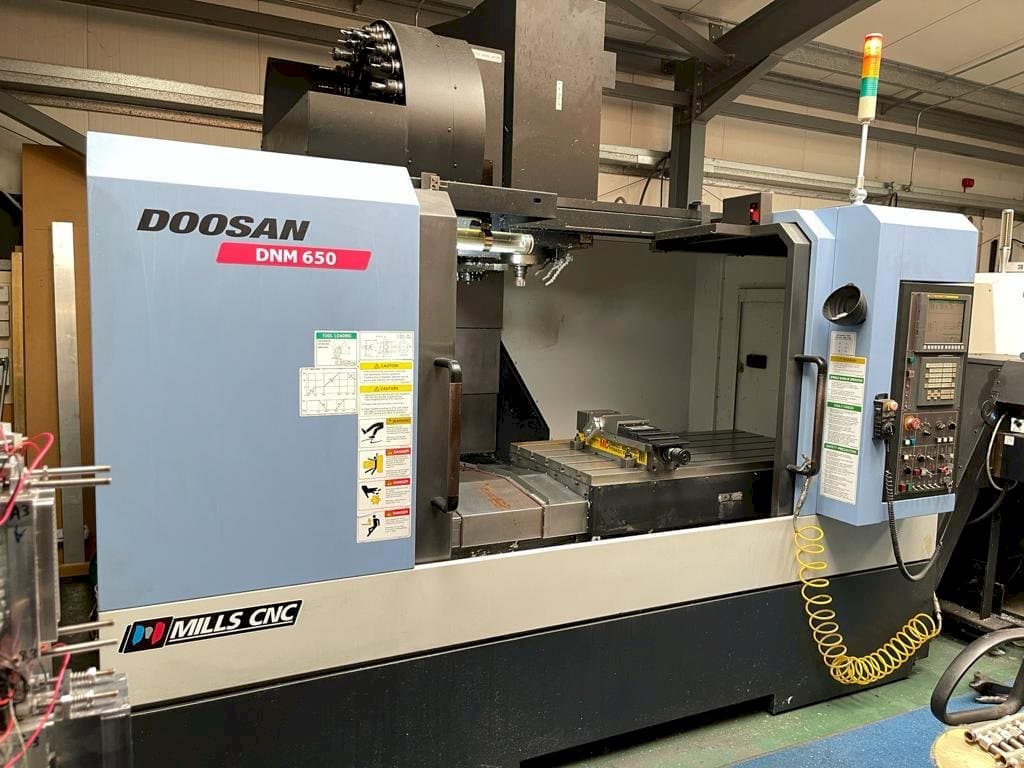

This Doosan DNM 650 Vertical Machining Center was made in the year 2012 in South Korea. This 3 axis machine operates through a FANUC i Series control unit. It has a spindle speed up to 12000 rpm. It is in very good working conditions.
Overview
- brand: DOOSAN
- year: 2012
- MODEL: DNM 650
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - DOOSAN DNM 650
General Data
- Measurements width: 4345 mm
- Measurements depth: 2720 mm
- Measurements height: 2815 mm
- Machine weight: 8500 kg
Control Unit
- Brand: Fanuc
- Model: i Series
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 15 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 1270 mm
- Y-AXIS Movement: 670 mm
- Z-AXIS Movement: 625 mm
Workpiece
- Workpiece weight: 1000 kg
Table
- Outer length: 1300 mm
- Outer width: 670 mm
- Number of tslots: 5
Tools
- Slots in storage: 30
- Max weight: 8 kg
- Max tool diameter: 80 mm
- Max tool length: 300 mm
- Type of tool holder: BT 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Distance from spindle centre to column: 747 mm
- - Spindle centre to column: 747 mm
- - Min - max height under spindle: 150 ~ 775 mm
- - Rapid feedrates xyz: 36 x 36 x 30m/minute
- - Tool change time (chip to chip) 3. 7 seconds
- - Through spindle coolant, coolant
- - Interlocked guards, low volt light, manuals, remote hand wheel
- - Swarf conveyor
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
