- Doosan DNM 6700 XL Vertical Machining center

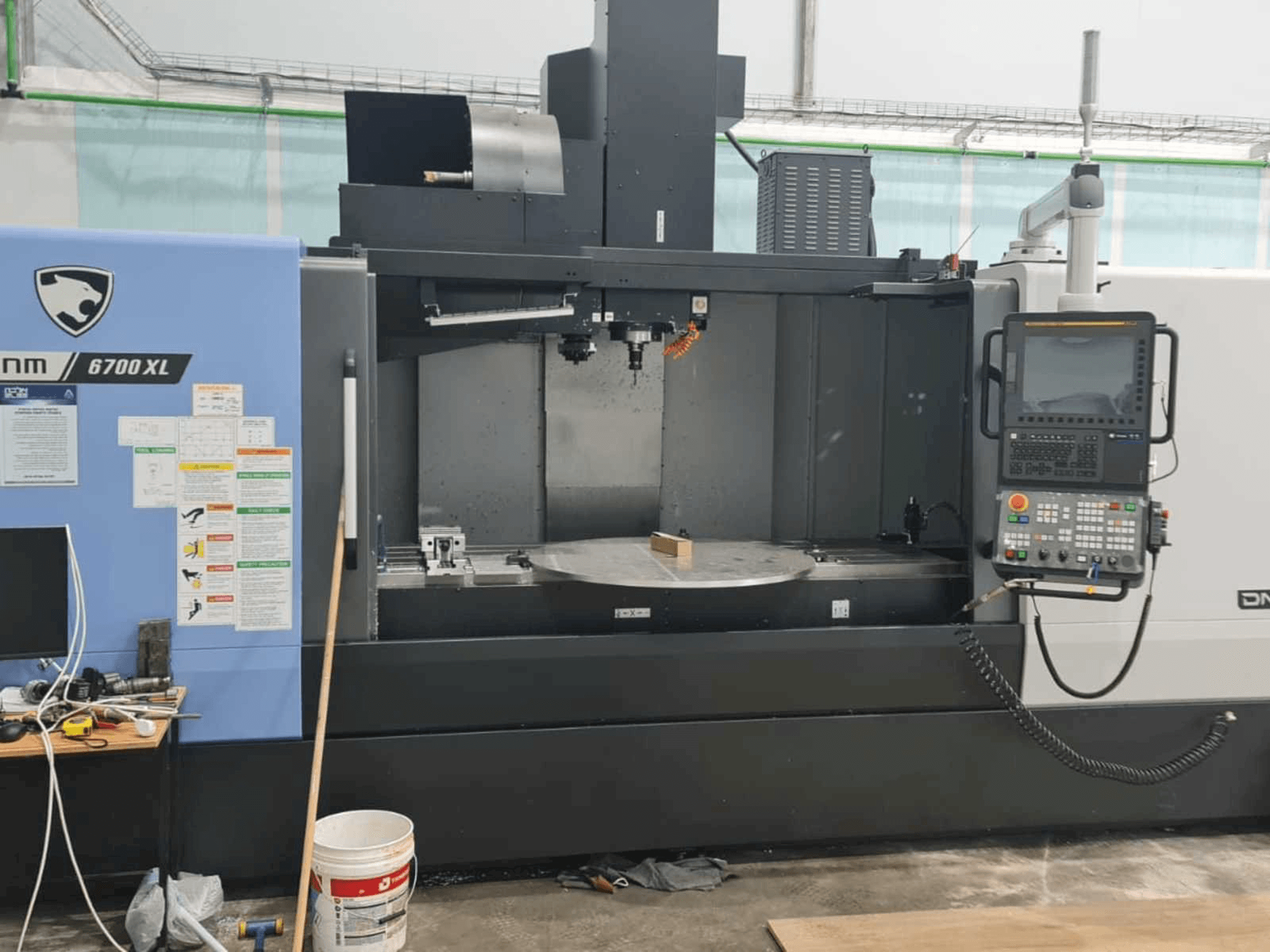

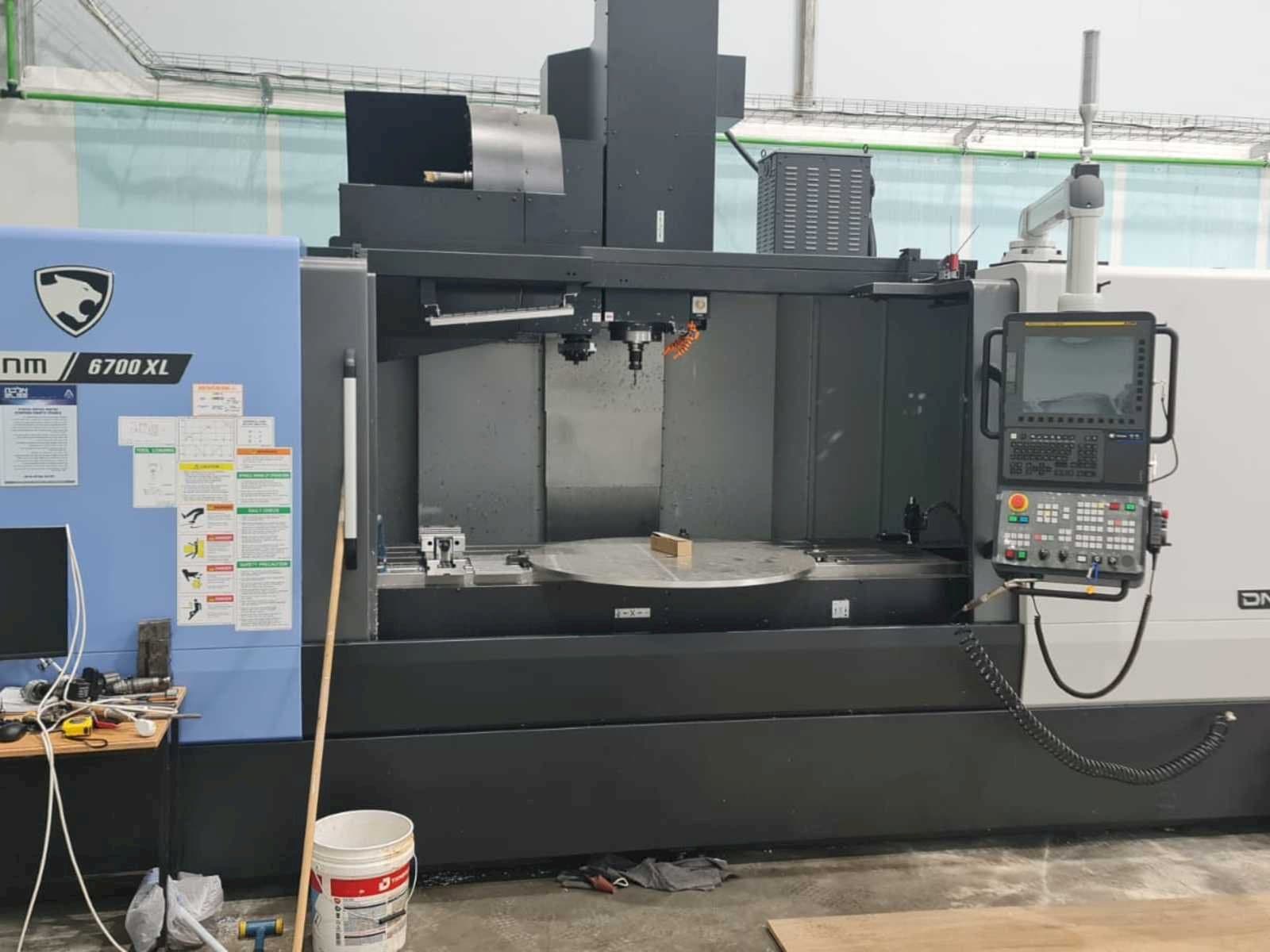

This Doosan DNM 6700 XL Vertical Machining Center was manufactured in the year 2023 in Korea. It is equipped with a FANUC Series 0i Plus control unit. The machine has a spindle speed of 12000 rpm.
Overview
- brand: DOOSAN
- year: 2023
- MODEL: DNM 6700 XL
- application type: Milling
- Location: Israel
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN DNM 6700 XL
General Data
- Measurements width: 4800 mm
- Measurements depth: 2970 mm
- Measurements height: 3120 mm
- Machine weight: 10000 kg
Control Unit
- Brand: FANUC
- Model: Series 0i Plus
Main drive
- Spindle speed range: 12000 1/MIN
Movement
- X-AXIS Movement: 2100 mm
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Movement: 670 mm
- Y-AXIS Rapid traverse: 30 m/min
- Z-AXIS Movement: 625 mm
- Z-AXIS Rapid traverse: 30 m/min
Tools
- Max weight: 8 kg
- Max tool diameter: 80-125 mm
- Max tool length: 300 mm
Additional Information
- Technical Machine Benefits:
- - Table surface : t‐slot (5‐125 x 18h8) mm
- - Table size: 2200x 670 mm
- - Max. Workpiece height : 700 mm
- - Max. Workpiece weight 1300 kg
- - Spindle to table surface 150 ~ 775 mm
- - Power (cont. / short) 11/18. 5 kw
- - Max. Torque (short term) 117. 8 (s3 25%) nm
- - Tool shank: mas403 bt 40
- - Tool storage capacity: 30
- - Cartiridge capacity: l 0. 7
- Qualitative Machine Benefits:
- - Pump motor power: 0. 024 kw
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
