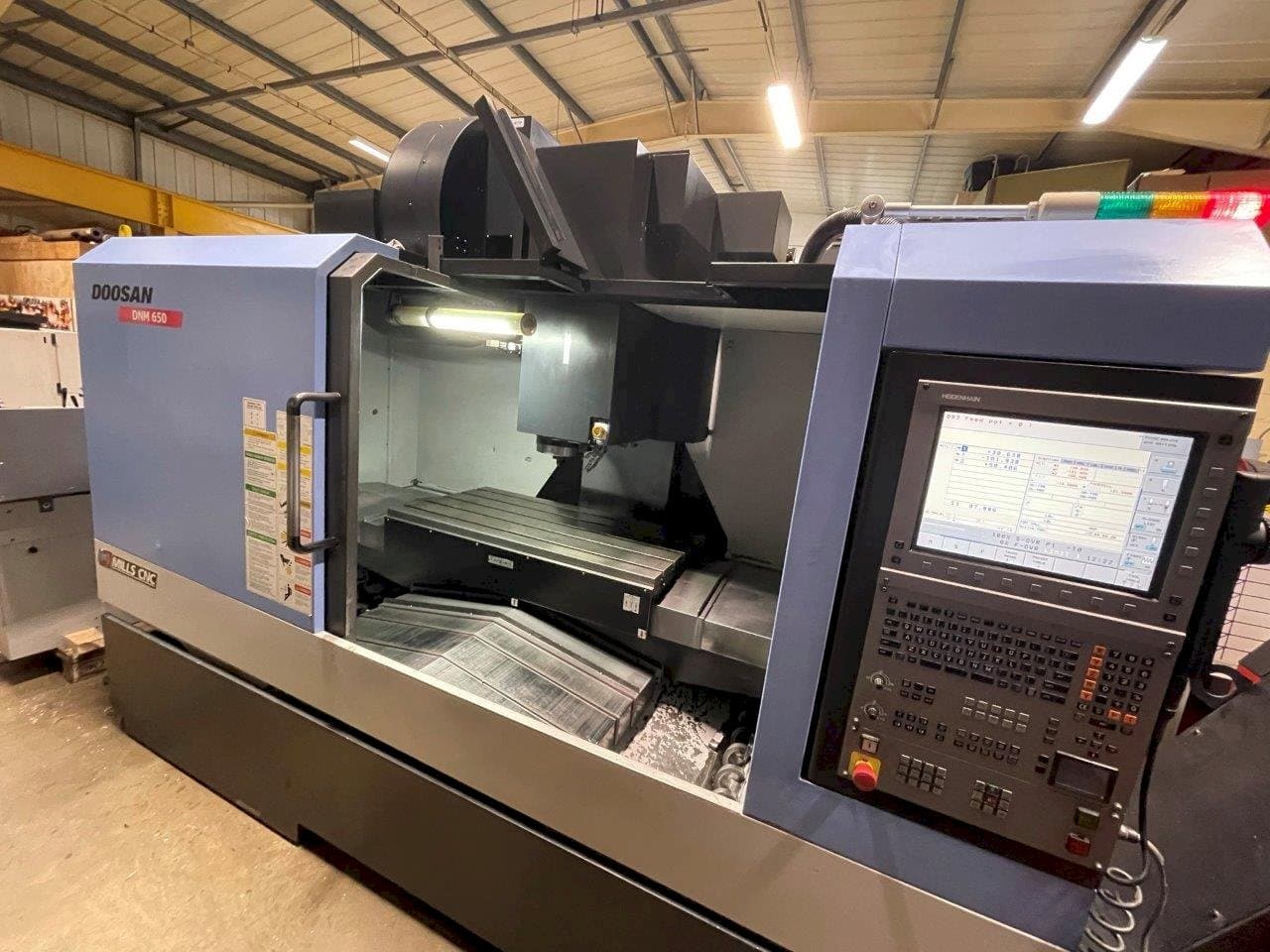

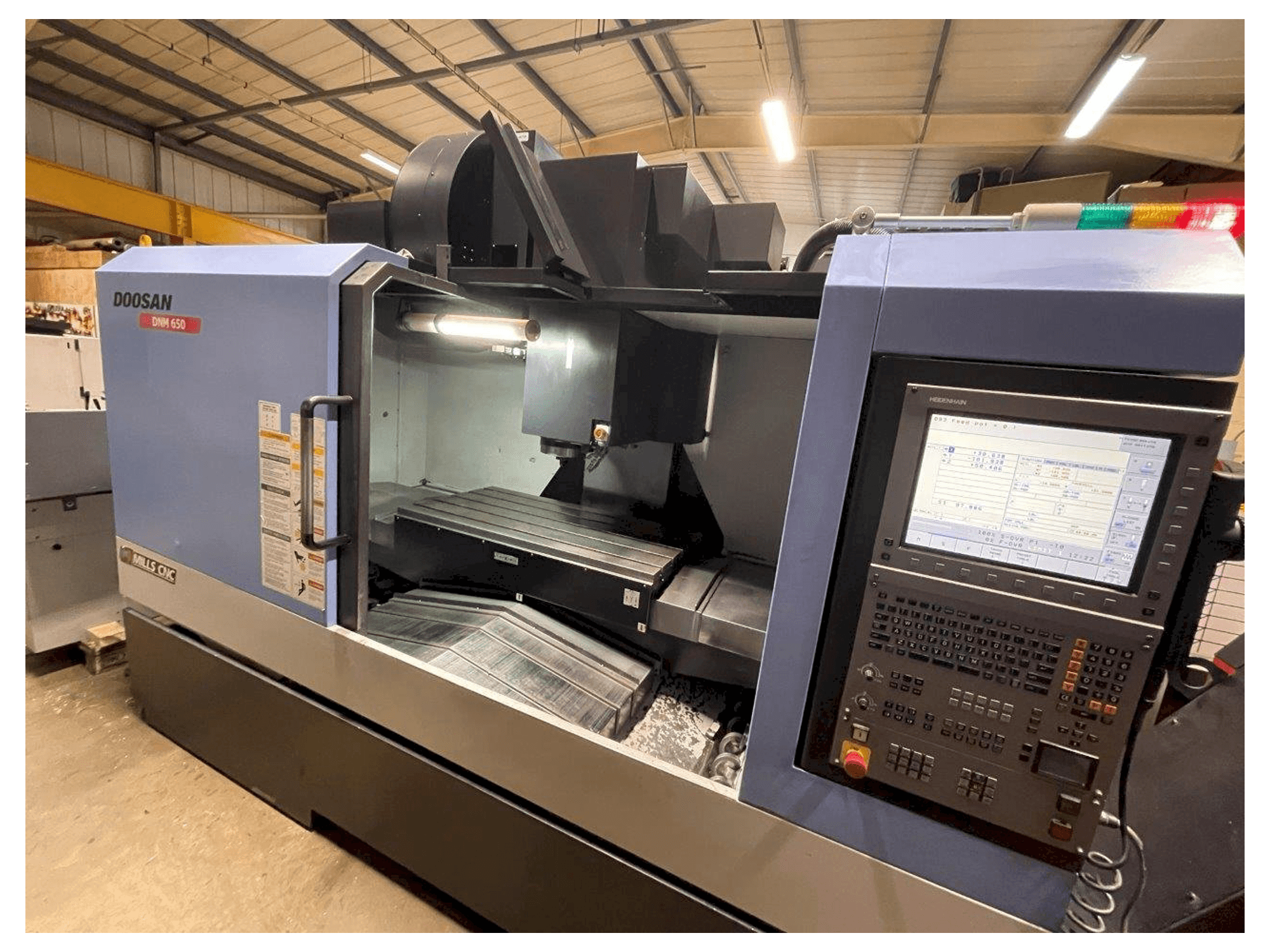

Doosan DNM650 Vertical Machining center

This Doosan DNM650 Vertical Machining center was built in Korea in the year 2012. It has been power on for 32215 hours, of which 14473 are running hours and 13738 are spindle hours. It is equipped with a Heidenhain TNC 530i control unit. This 3 axis machine works with a spindle speed up to 12000 rpm. Includes a coolant through spindle, a swarf conveyor and machine manuals.

Overview

brand: DOOSAN
year: 2012
MODEL: DNM650
production hours: 13738
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DOOSAN DNM650

General Data

Measurements width: 2762 mm
Measurements depth: 3350 mm
Measurements height: 2815 mm
Machine weight: 8500 KG

Control Unit

Model: TNC 530i
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 18.5 kW
Tool taper: CAT40
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
X-AXIS Rapid traverse: 36 mm
Y-AXIS Movement: 670 mm
Y-AXIS Rapid traverse: 36 mm
Z-AXIS Movement: 625 mm
Z-AXIS Rapid traverse: 30 mm

Table

Outer length: 1300 mm
Outer width: 670mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 775 mm
Table load: 1000 KG

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from spindle nose to column: 747 mm
- - Max. Cutting federate: 15000 m/min
- - Automatic tool changer: 30-positions
- - Coolant through spindle
- - Swarf conveyor
Qualitative Machine Benefits:
- - Machine manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
