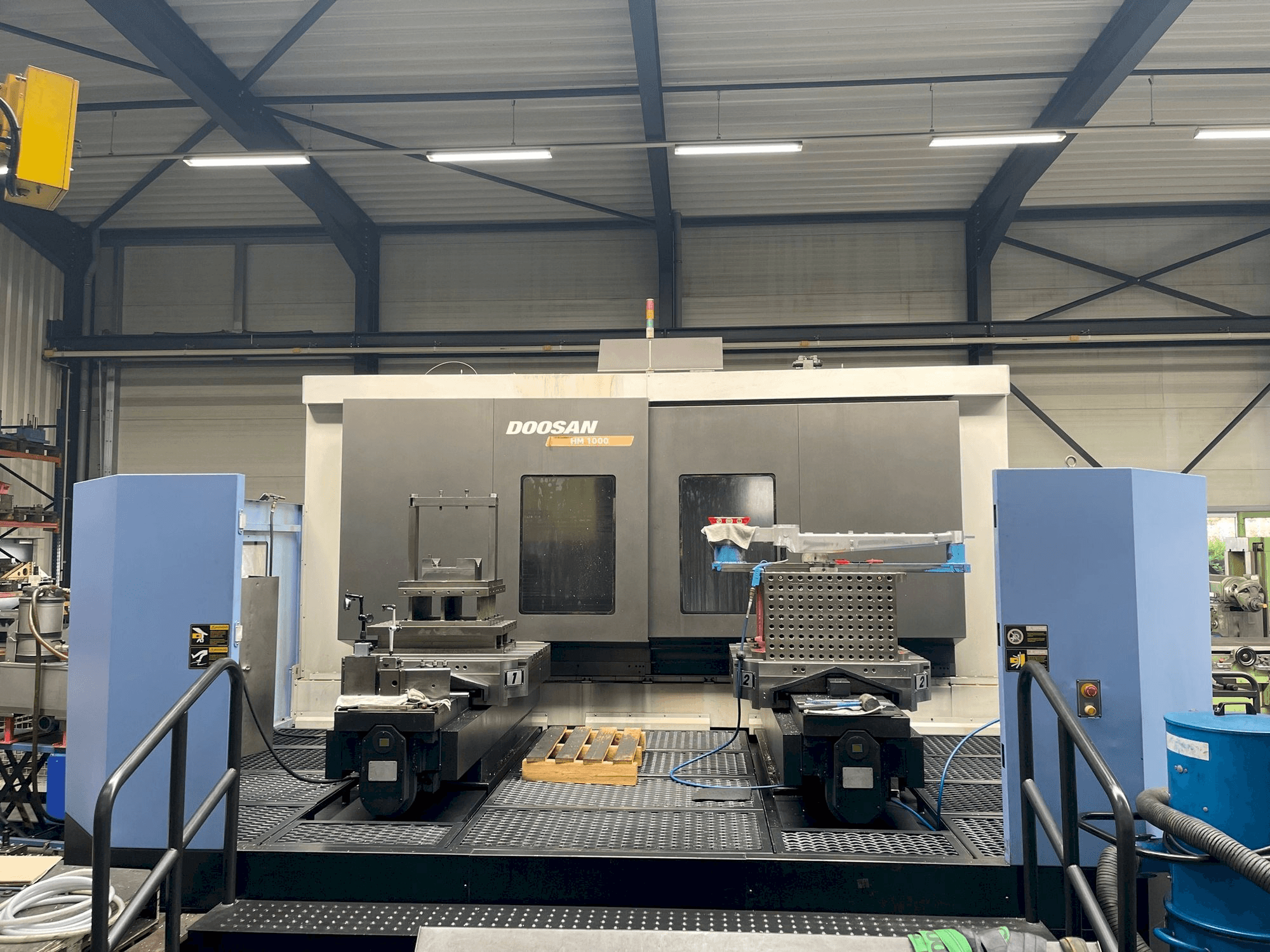

Doosan HM 1000 Horizontal Machining Center

This Doosan HM 1000 Horizontal Machining Center was built in the year 2008. It has a production record of 14000 hours. It is operated through a FANUC Series 31i-Model A control unit. This 4 axis machine comes with a spindle speed up to 6000 rpm. Include 2 pallets, a belt filter system and inspection reports.

Overview

brand: DOOSAN
year: 2008
MODEL: HM 1000
production hours: 14000
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN HM 1000

General Data

Measurements width: 5822 mm
Measurements depth: 9657 mm
Measurements height: 3885 mm
Machine weight: 29000 KG

Control Unit

Model: Series 31i-Model A
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 26 / 22 kW
Number of axis: 4

Movement

Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 1250 mm

Table

Outer length: 1000 mm
Outer width: 1000 mm
Min distance between vertical spindle and table: 75 mm
Max distance between vertical spindle and table: 1325 mm
Table load: 3000 KG

Media

Power consumption: 71 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Renishaw probe
- - Approx. 100 sk50 tool holders
- - Belt filter system
- - 2 pallets
Qualitative Machine Benefits:
- - Inspection reports available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
