➤ Used DOOSAN HM 630 For Sale | gindumac.com

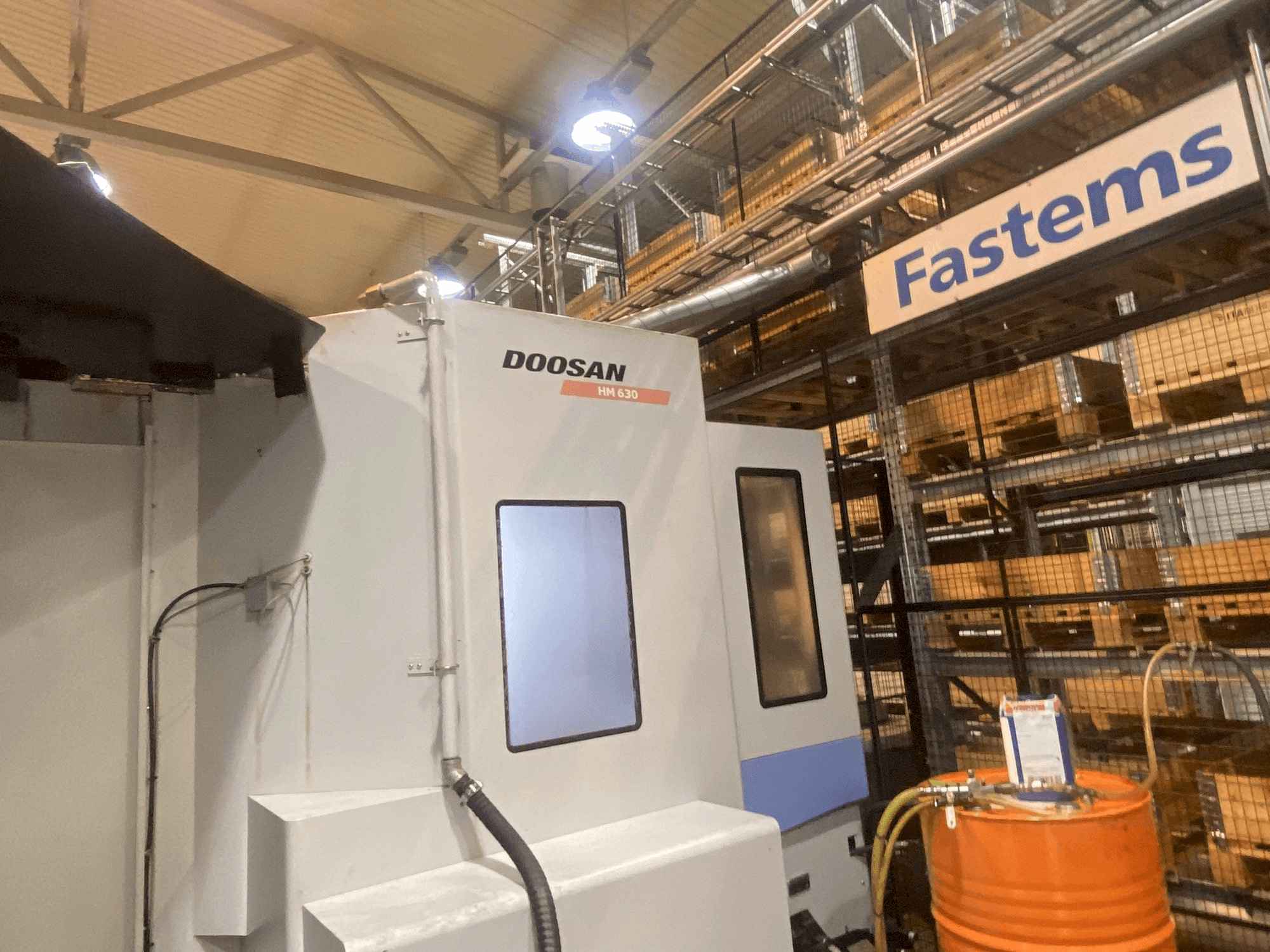

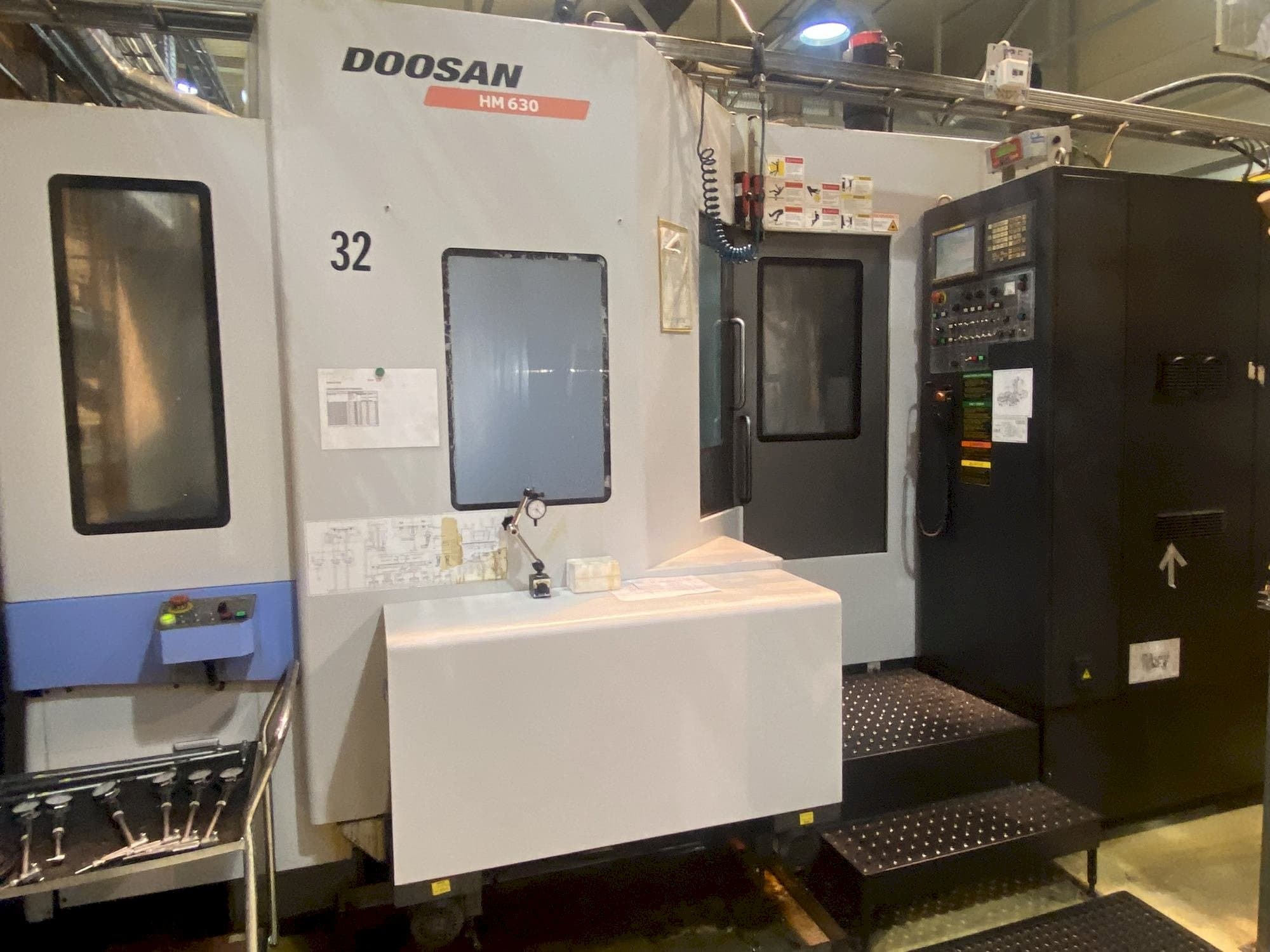

This 4-axis Doosan HM 630 horizontal machining center was manufactured in 2008. It features a Fanuc Series 18i-MB control system, spindle speeds up to 6000 rpm, and spindle power of 65 kW. Equipped with through spindle cooling at 20 bar, a chip conveyor, and cyclone filtering. If you are looking to get high-quality milling capabilities consider the Doosan HM 630 machine we have for sale. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2008
MODEL: HM 630
application type: Milling
Location: Finland
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN HM 630

Control Unit

Brand: FANUC
Model: Series 18i

Main drive

Spindle speed range: 6000 rpm 1/MIN
Spindle motor power: 65 kW
Number of axis: 4

Movement

X-AXIS Movement: 1000 MM
Y-AXIS Movement: 800 MM
Z-AXIS Movement: 850 MM

Media

Chip conveyor: Yes

Additional Equipment

- Cyclone Filtering: Yes
- 28 Palettes: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2006 model: 37168 hours / 2008 model: 29492 hours
- - Through spindle cooling: 20 bar (both models)
- - Number of apc positions: 2006 model: 240 positions / 2008 model: 195 positions

Extra information

- 2 units of Doosan HM 630 for sale, separate or in package. The machines are connected to FMS line. Price is per unit.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
