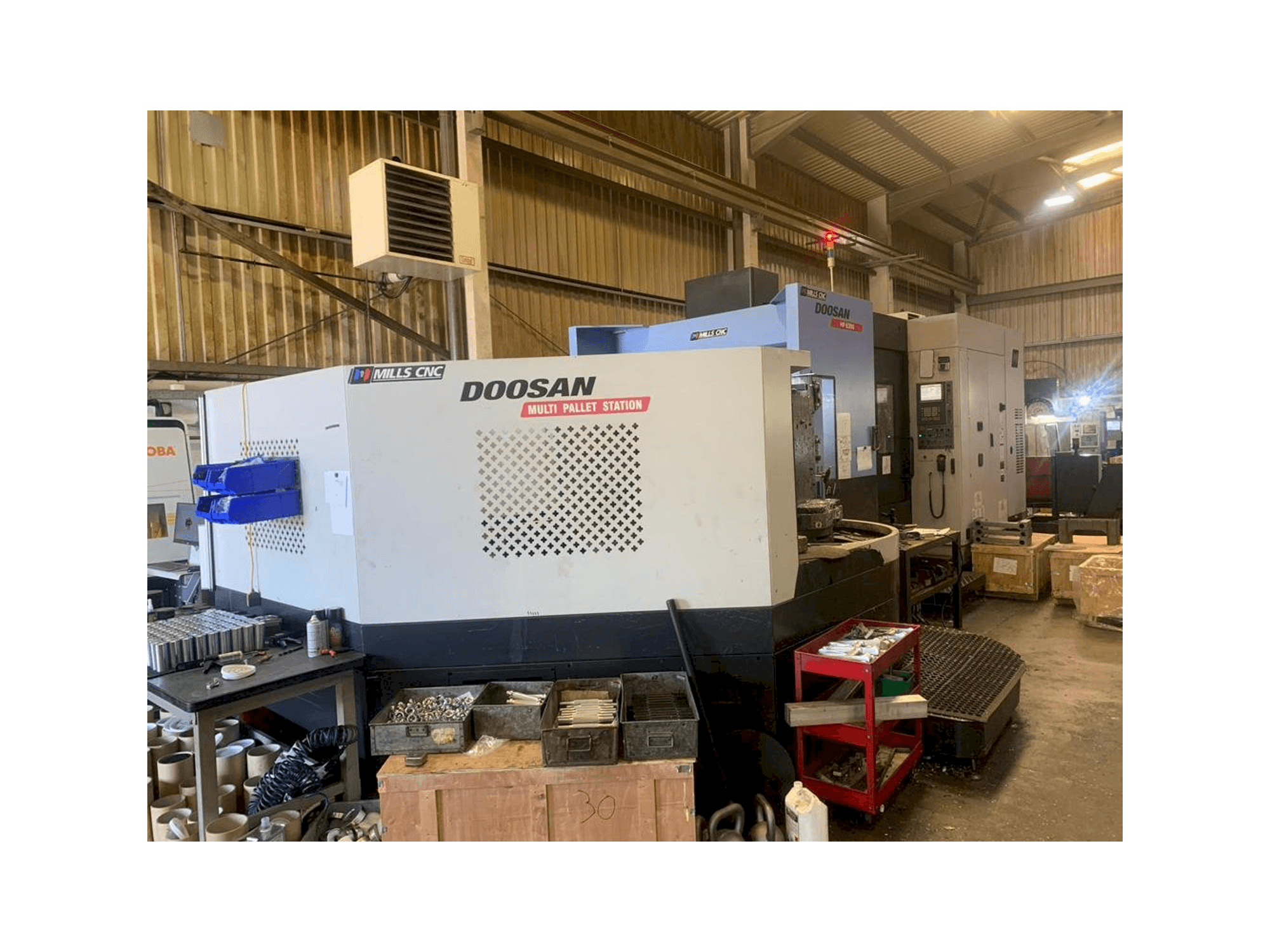

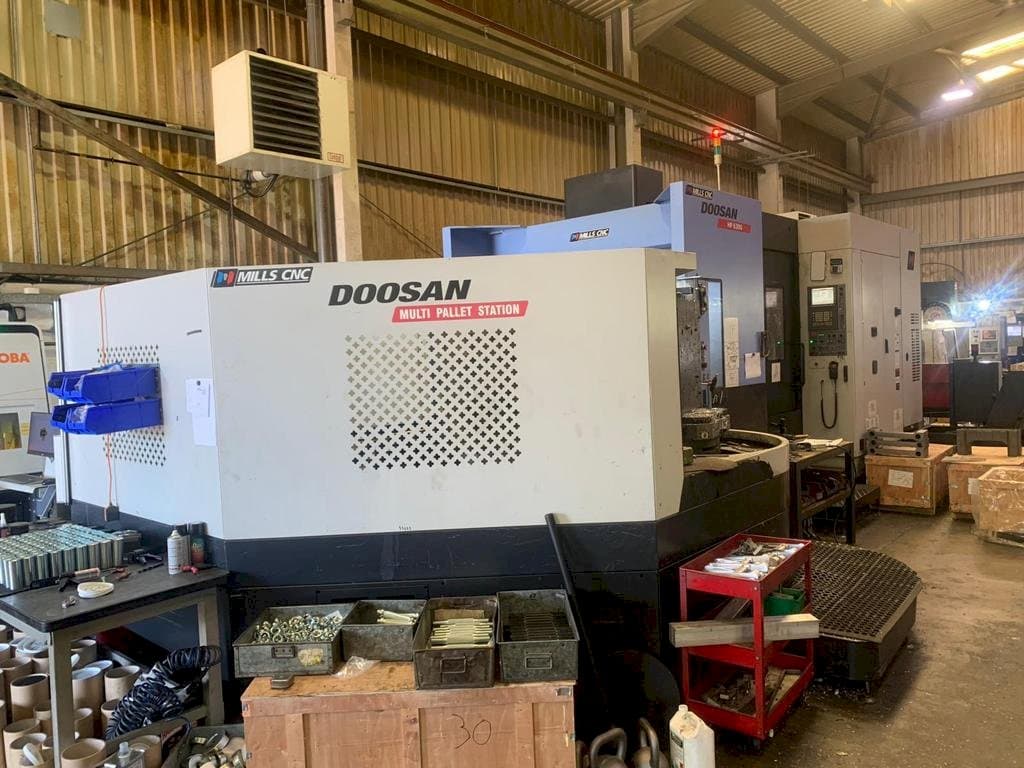

Doosan HP 6300 Horizontal Machining Center

This Doosan HP 6300 Horizontal Machining Center was made in the year 2012 in South Korea. This 4 axis machine operates through a FANUC 31i control unit. It has a spindle speed up to 12000 rpm. It includes 196 slots in storage, 7 pallets and manual book.

Overview

brand: DOOSAN
year: 2012
MODEL: HP 6300
application type: Milling
Location: United Kingdom
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN HP 6300

General Data

Measurements width: 9720 mm
Measurements depth: 4820 mm
Measurements height: 3330 mm
Machine weight: 19500 KG

Control Unit

Model: 31i
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 30 kW
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 850 mm
Z-AXIS Movement: 850 mm

Workpiece

Workpiece weight: 1200 KG

Table

Outer length: 630 mm
Outer width: 630 mm

Tools

Slots in storage: 196
Max weight: 20 KG
Max tool diameter: 125 mm
Max tool length: 450 mm
Type of tool holder: DIN 50

Media

Main electronic connection: 220 V / 60 Hz
Power consumption: 67.25 kVa
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of pallets: 7
- - Cutting feedrate: 24 m/min
- - Rapid feedrates: 48 m/min
- - Distance between table centre to spindle nose: 150 - 1000 mm
- - Distance between table top to spindle centre: 75 - 925 mm
- - B axis movement: 0. 001 degree
- - Through spindle coolant
- - Swarf conveyor
- - Coolant
Qualitative Machine Benefits:
- - Simultaneous axis operation
- - Includes machine manual
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
