- Doosan Mynx 7500/50 Vertical machining center

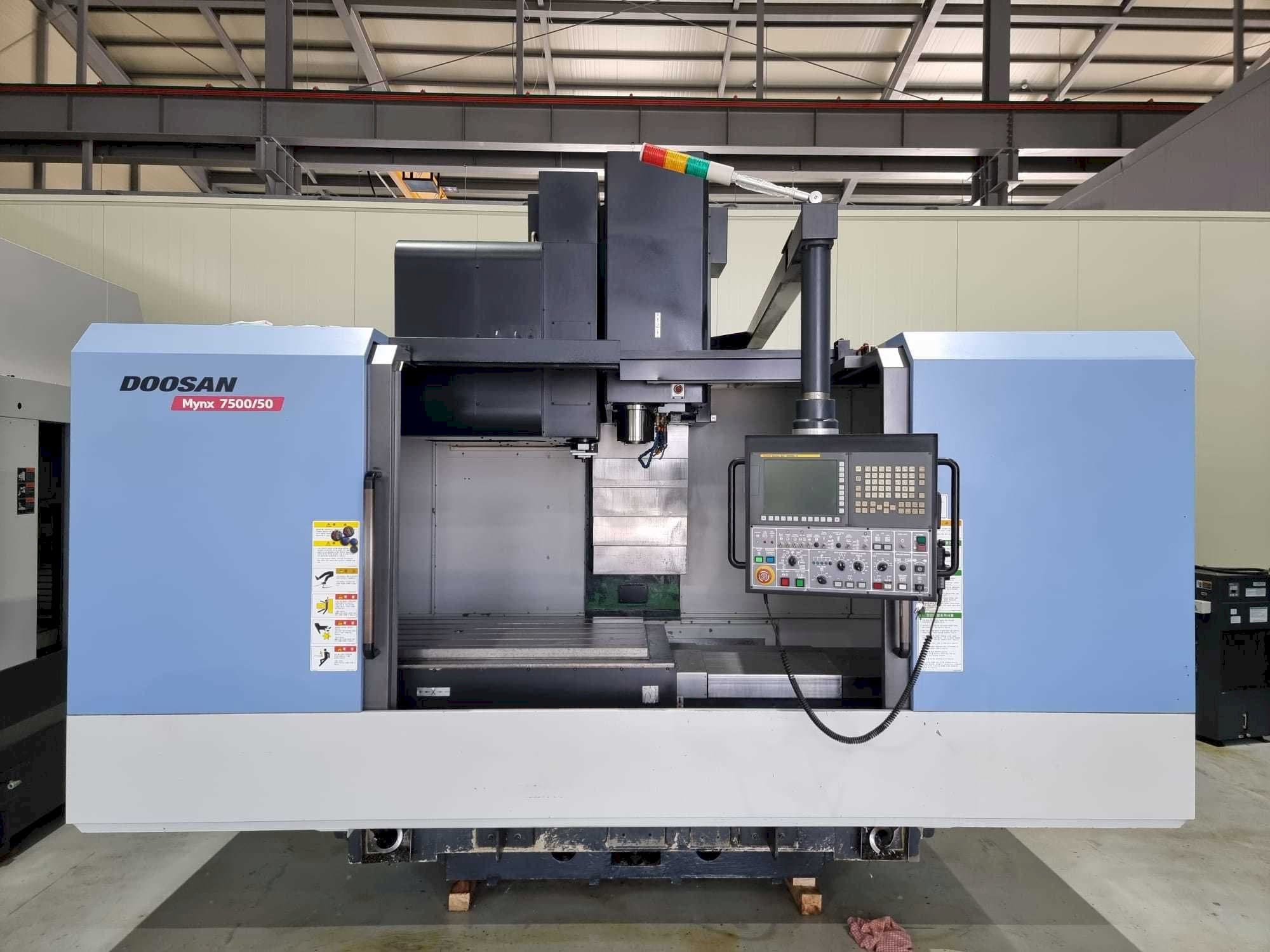

This Doosan Mynx 7500/50 Vertical machining center was built in South Korea in 2012. It is equipped with a FANUC Series 32i-MODEL A control unit. This 3 axis machine operates with a spindle speed up to 8000 rpm. Includes an oil cooler and a data server of 1 GB.
Overview
- brand: DOOSAN
- year: 2012
- MODEL: Mynx 7500/50
- application type: Milling
- Location: South Korea
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN Mynx 7500/50
General Data
- Machine weight: 14000 KG
Control Unit
- Model: Series 32i-MODEL A
- Brand: FANUC
Main drive
- Spindle speed range: 8000 1/MIN
- Tool taper: BT50
- Number of axis: 3
Movement
- X-AXIS Movement: 1525 MM
- Y-AXIS Movement: 770 MM
- Z-AXIS Movement: 625 MM
Table
- Outer length: 1600 MM
- Outer width: 750 MM
Tools
- Slots in storage: 40 EA
Media
- Main electronic connection: 3 x 220V / 60Hz
- Power consumption: 42.87 kVA
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Oil cooler
- - Data server 1gb
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
