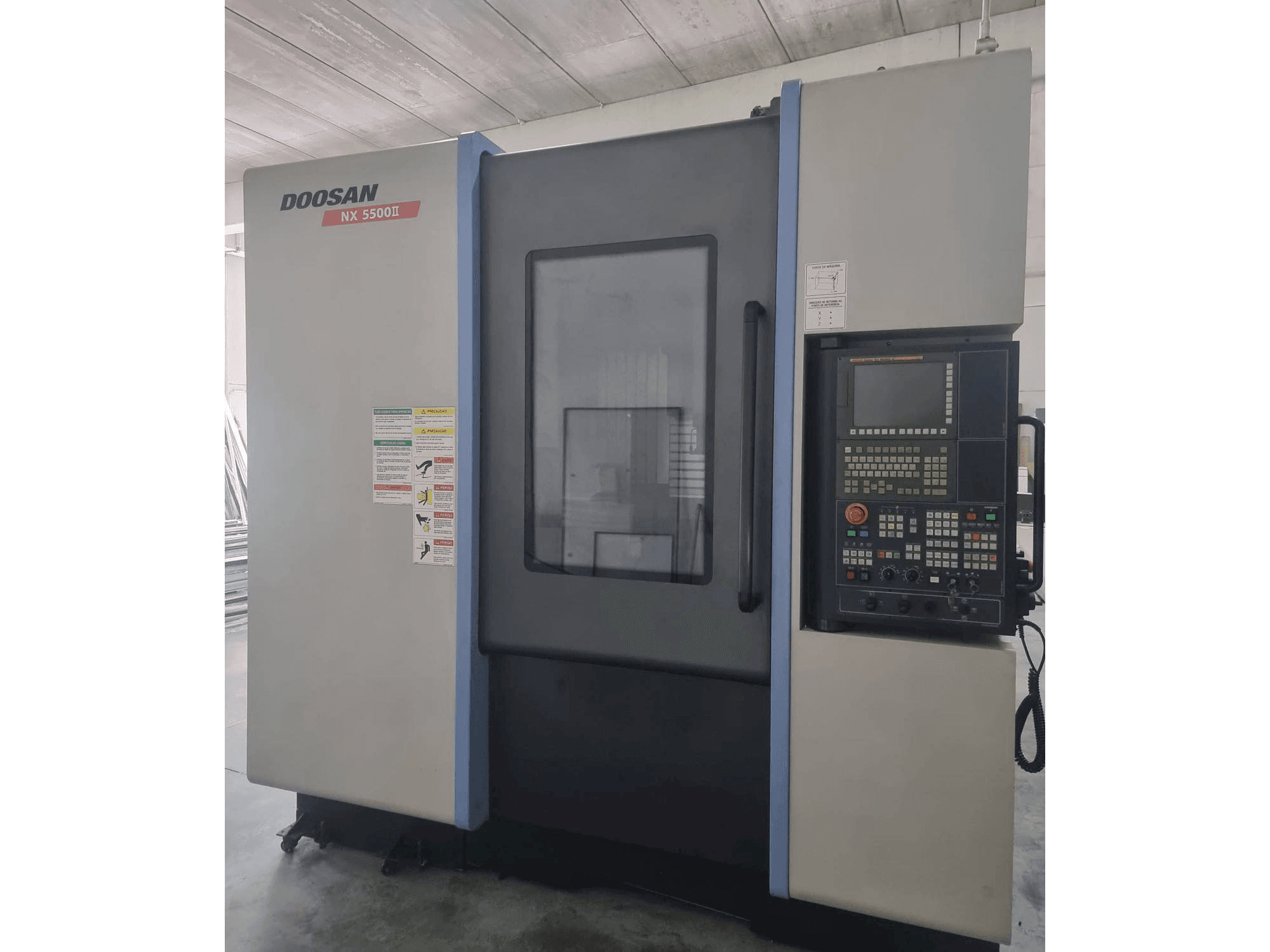

Doosan NX 5500 II Vertical Machining center

This Doosan NX 5500 II Vertical Machining Center was manufactured in the year 2013. It is equipped with a FANUC 31i control unit and has 3 axis. The machines has a spindle speed of 20000 rpm.

Overview

brand: DOOSAN
year: 2013
MODEL: NX 5500 II
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN NX 5500 II

General Data

Measurements width: 2900 mm
Measurements depth: 2530 mm
Measurements height: 3064 mm
Machine weight: 9000 kg

Control Unit

Model: 31i
Brand: FANUC

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 11 kW
Number of axis: 3

Movement

X-AXIS Movement: 900 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 1000 mm
Outer width: 550 mm
Table load: 700 kg

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 220 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool change time: 1,6 s
- - Coolant system
- - Chip conveyor
- - Screw conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
