DOOSAN - T3600 DSI-MIL-DOO-2016-00001

Name: DOOSAN T3600 D
Brand: DOOSAN
SKU: SI-MIL-DOO-2016-00001
Price: 45000 EUR
Availability: InStock

45,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN T3600 D For Sale | gindumac.com

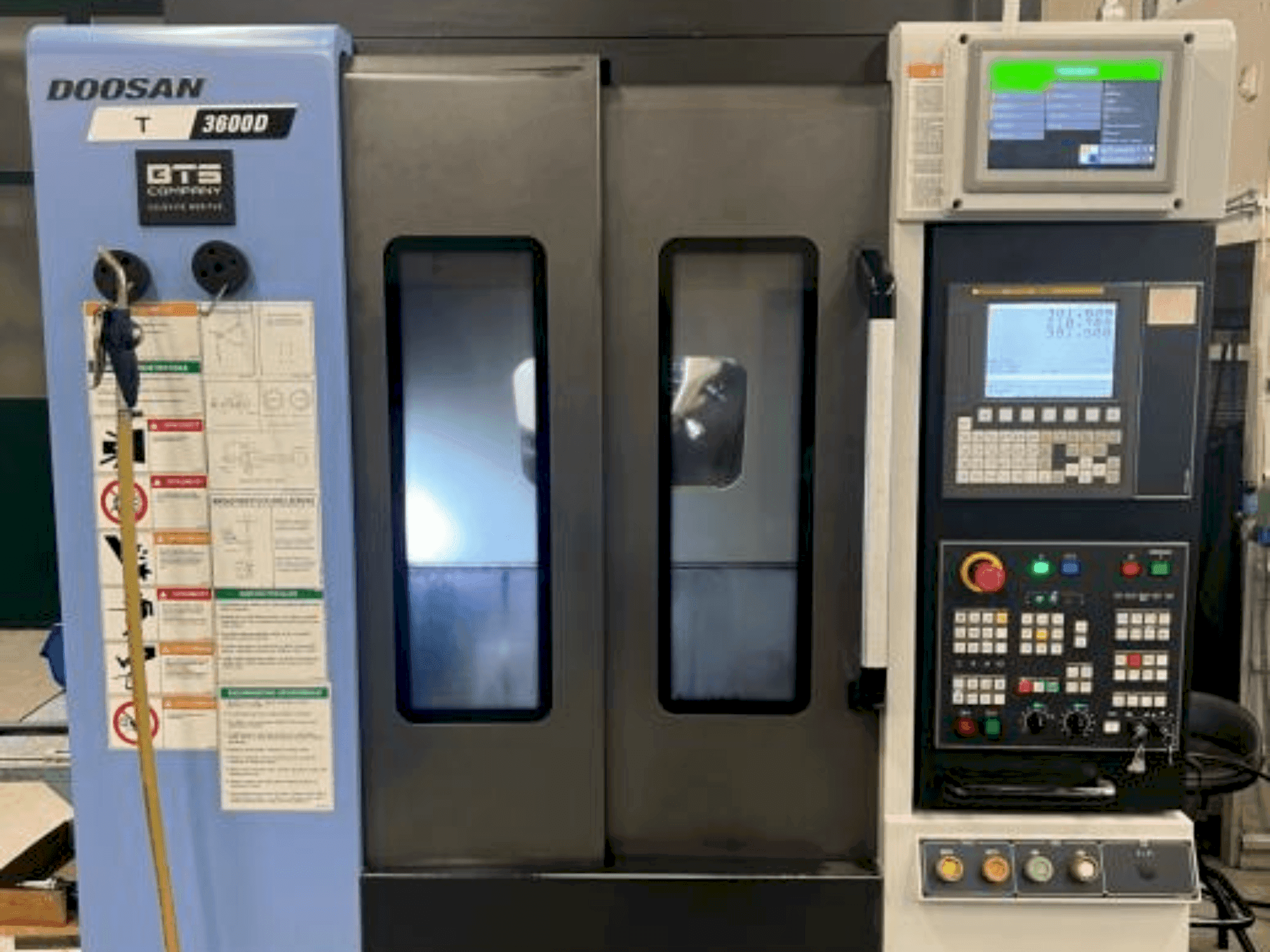

This 3-axis DOOSAN T3600 D vertical machining center was manufactured in 2016. It features a CNC FANUC I series controller, dual rotary table, and is still operational for testing. Key specifications include a max spindle speed of 12,000 rpm, spindle power of 13 kW, and a table capable of handling loads up to 200 kg. Ideal for precision machining, the DOOSAN T3600 D machine we have for sale is in very good condition. Contact us for further details regarding this vertical machining center.

Overview

brand: DOOSAN
year: 2016
MODEL: T3600 D
production hours: 3100
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN T3600 D

General Data

Measurements width: 1729 mm
Measurements depth: 3684 mm
Measurements height: 2507 mm
Machine weight: 5200 kg

Control Unit

Model: I SERIES
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 13 kW
Tool taper: BT30
Number of axis: 3

Movement

X-AXIS Movement: 520 mm
X-AXIS Rapid traverse: 48 m/min
Y-AXIS Movement: 360 mm
Y-AXIS Rapid traverse: 48 m/min
Z-AXIS Movement: 350 mm
Z-AXIS Rapid traverse: 56 m/min

Additional Equipment

- Holder (pin) BT30 - ER 25 … 5 pieces
- Holder (pin) BT30 – Weldon … 2 pieces
- Pulling screws … 10 pieces

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dual rotary table with two pallets
- - Rapid feed rates: x-axis 48 m/min, y-axis 48 m/min, z-axis 56 m/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
