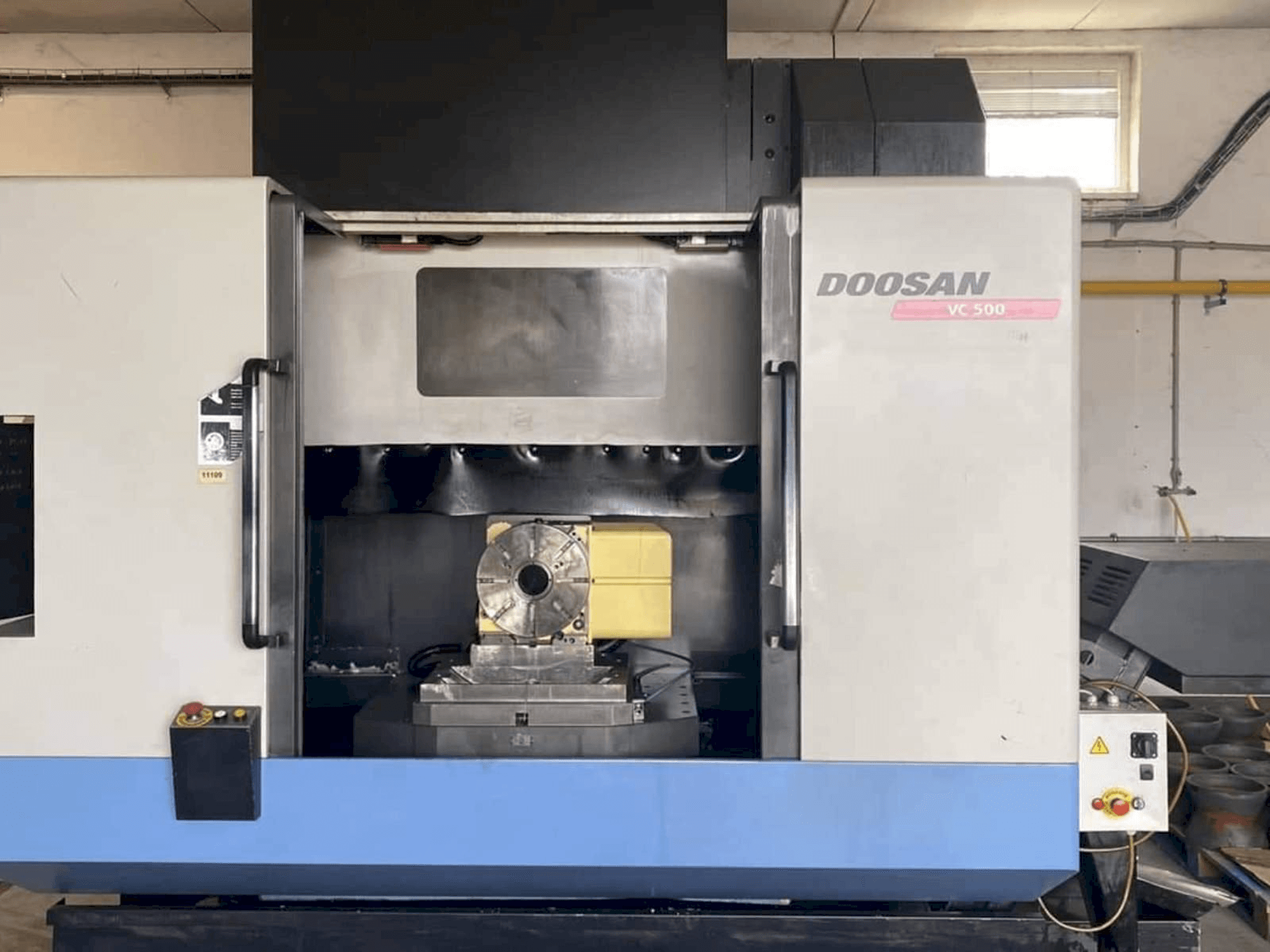

Doosan VC 500 Vertical Machining center

This Doosan VC 500 Vertical Machining Center was manufactured in the year 2008 in South Korea. It is equipped with a Fanuc 18iMA control unit and has 4 axis. The machine has a spindle speed of 10000 rpm, is in very good condition, and is well maintained.

Overview

brand: DOOSAN
year: 2008
MODEL: VC 500
application type: Milling
Location: Slovakia
machine type: Universal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN VC 500

General Data

Machine weight: 9200 kg

Control Unit

Model: 18iMA
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 760 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 570 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 860 mm
Outer width: 570 mm

Tools

Slots in storage: 40
Max weight: 8 kg
Max tool diameter: 80/150 mm
Max tool length: 300 mm
Type of tool holder: ISO 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 pallets
- - Max. Workpiece height 520 mm
- - Min. -max. Height under spindle nose 210-780 mm
- - Feedrate 8000 mm/min.
- - Rapid feedrate x/y/z 40/40/32 m/min.
- - Spindle motor power 11/15 kw
- - Pallet change time 5 s
- - Cooling through spindle 20 bar
- - 4th axis nikken
Qualitative Machine Benefits:
- - Very good condition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
