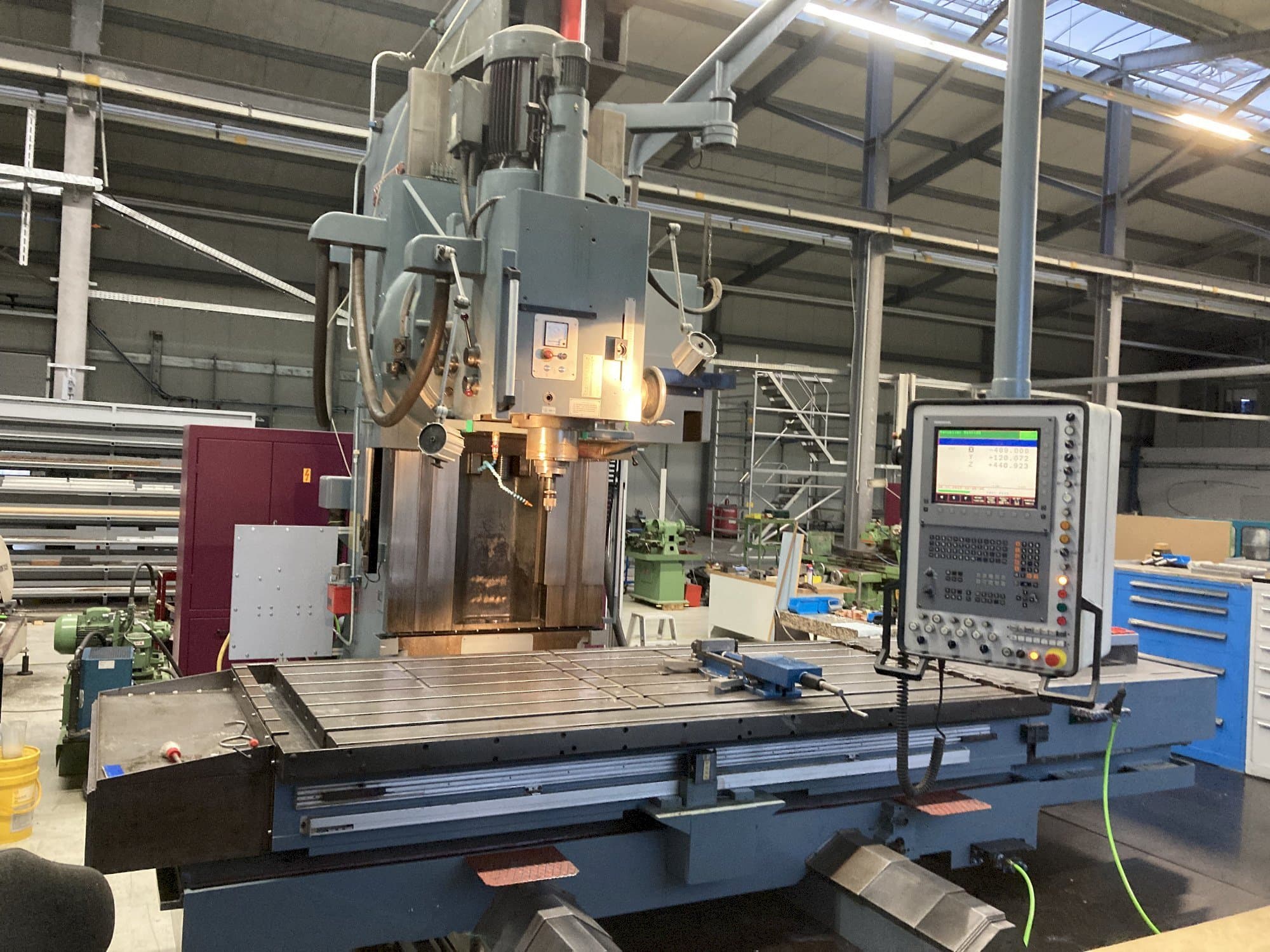

Droop & Rein FS 130 SKE Vertical Machining center

This Droop & Rein FS 130 SKE Vertical Machining center was manufactured in the year 1978. It is equipped with a HEIDENHAIN iTNC 426 control unit and has 3 axis. The machine has a spindle speed of 31.5 – 1600 rpm. The machine was completely overhauled in 2022. See information about overhauling details in PDF (DE) attached. Contact us at any time for further questions.

Overview

brand: Droop & Rein
year: 1978
MODEL: FS 130 SKE
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Droop & Rein FS 130 SKE

General Data

Machine weight: 30000 kg

Control Unit

Model: iTNC 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 31.5 – 1600 1/MIN
Spindle motor power: 30 kW
Number of axis: 3

Movement

X-AXIS Movement: 2300 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 950 mm

Table

Outer length: 3000 mm
Outer width: 1200 mm
Table load: 10000 kg

Tools

Type of tool holder: SK50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Milling spindle diameter 130 mm
- - Axial displacement of the milling spindle: 200 mm
- - Tool holder – automatic
- - Pivoting of the milling spindle head: +/- 45°
- - Maximum distance to table milling spindle head: 1200 mm
- - Clamping table with model table: 4200 x 1200 mm (also ideal as a tool storage area)
- - Feed and rapid traverse: 0 to 4000 mm/min
- - Pedestal
- - 2 new workbenches
- - Clamping tools: screws, clamping claws
Qualitative Machine Benefits:
- - Sanded documents
- - Approx. 130 tool holders in various designs
- - Approx. 10 different knife heads
- - Drilling tool sets
- - Countersink tool sets
- - Various sk-50 long milling cutters
- - Various measuring mandrels and zero point recording tools
- - Various boring tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
