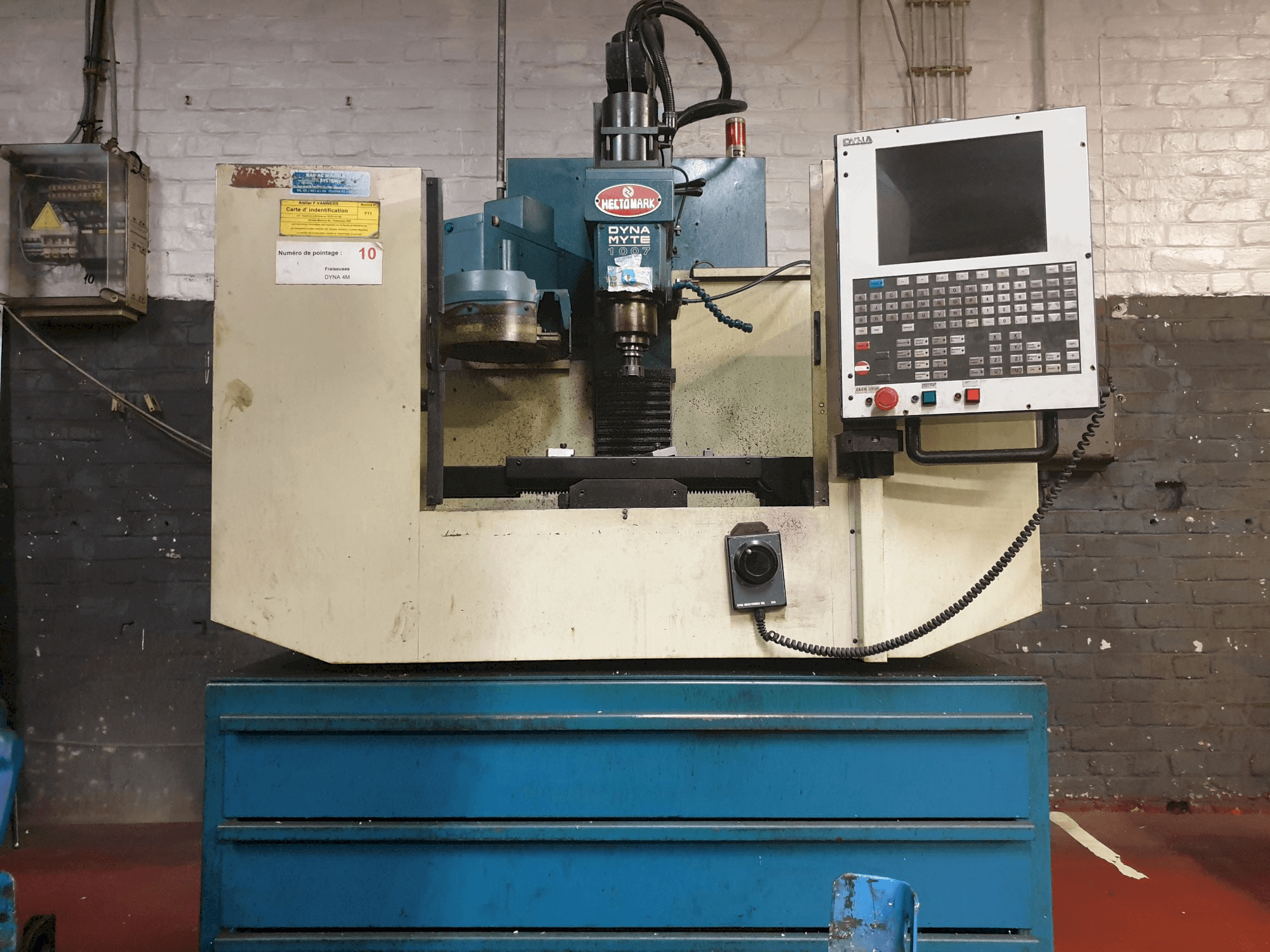

Dyna DM1007 Vertical Machining Center

This Dyna DM1007 Vertical Machining Center from Taiwan was manufactured in 2000 and has a production time of 18400 working hours. Operated through a Dyna 4M CNC Control unit, this machine excels for its high spindle speed. It counts with an automatic tool changer and a built in PC Computer .

Overview

brand: Dyna
year: 2000
MODEL: DM1007
production hours: 18400
application type: Milling
Location: Belgium
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Dyna DM1007

General Data

Measurements width: 1200 mm
Measurements depth: 1100 mm
Measurements height: 1430 mm
Machine weight: 650 kg

Control Unit

Model: 4M CNC
CNC main language: English

Main drive

Number of spindles: 1
Spindle speed range: 3000 - 8000 rpm 1/MIN

Movement

X-AXIS Movement: 250 mm
Y-AXIS Movement: 175 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece weight: 60 kg

Table

Outer length: 450 mm
Outer width: 180 mm

Tools

Slots in storage: 6
Max weight: 2 kg
Max tool diameter: 50 mm
Max tool length: 150 mm
Type of tool holder: BT-30

Media

Main electronic connection: 220 V
Power consumption: 5 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
