- ELB SCHLIFF SWBD-30 VA II surface grinder machine

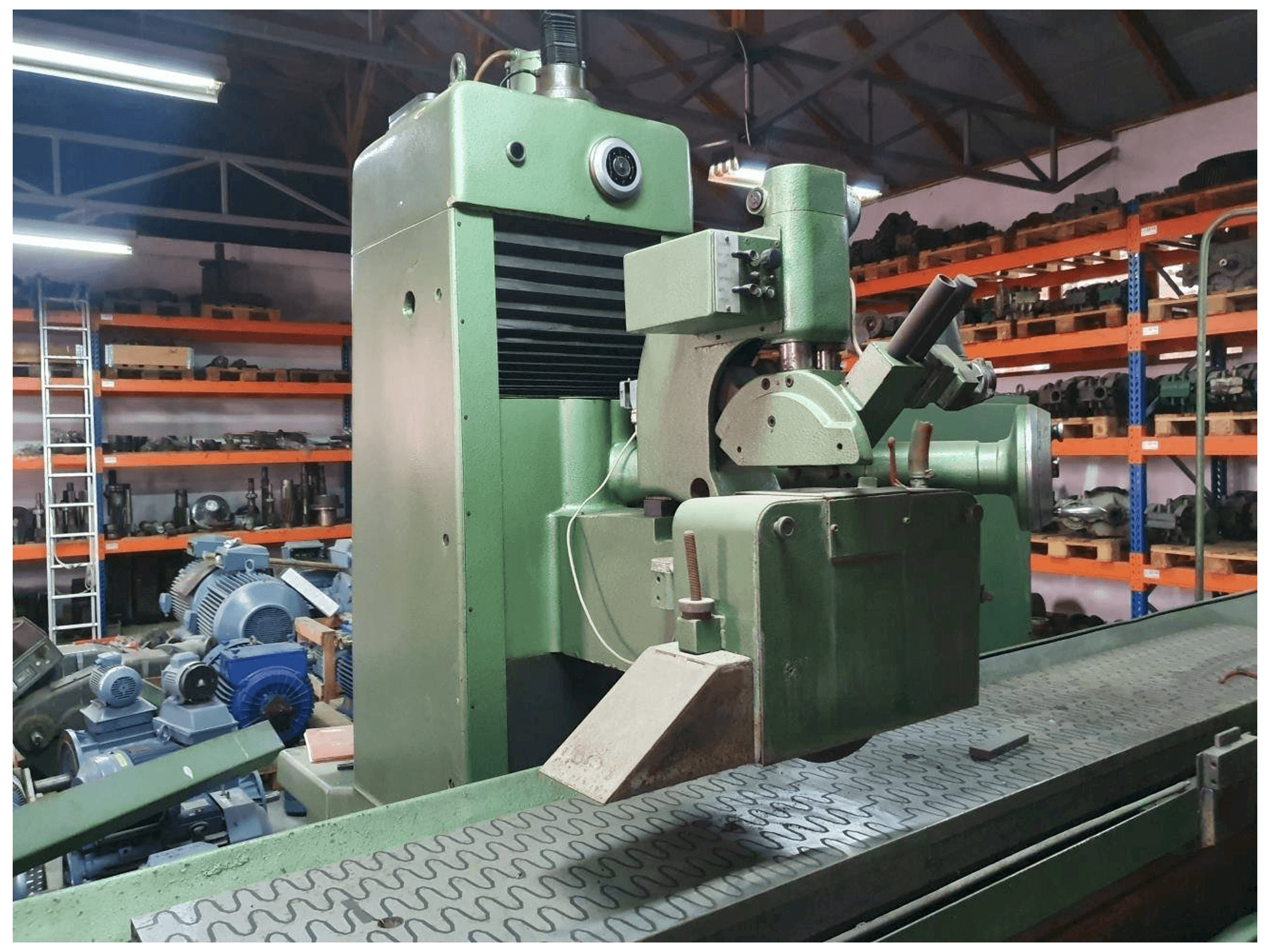

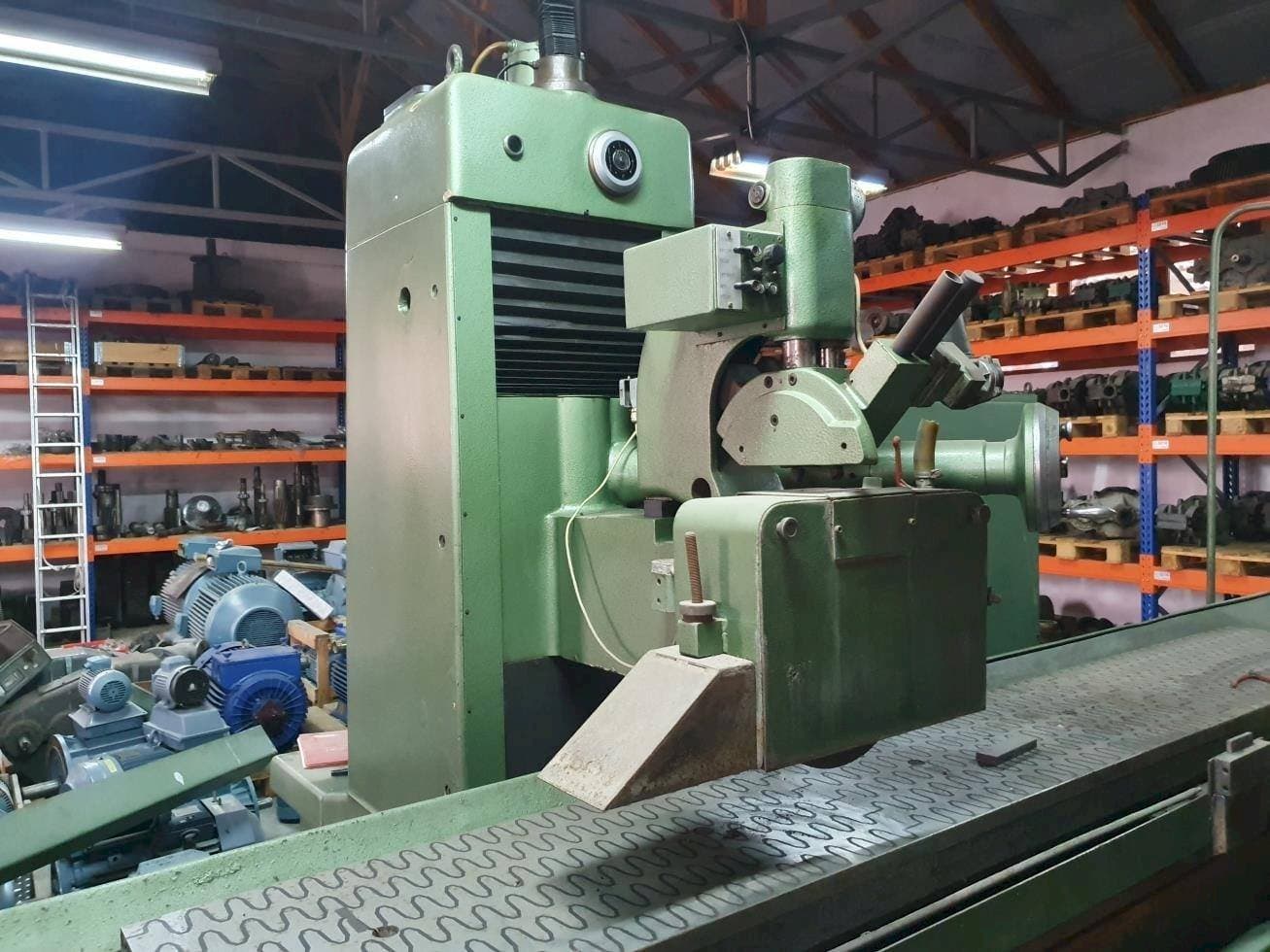

This ELB SCHLIFF SWBD-30 VA II surface grinder machine was made in the year 1970 and was renewed in 2002. The machine has a max grinding length of 3000 mm, a max grinding width of 500 mm, and an electro-automatic magnetic pole switch in electromagnetic plates.
Overview
- brand: ELB
- year: 1970
- MODEL: SCHLIFF SWBD-30 VA II
- application type: Grinding
- Location: Poland
- machine type: Grinding Machine
- availability: Sold
Technical Information - ELB SCHLIFF SWBD-30 VA II
General Data
- Measurements width: 9000 mm
- Measurements depth: 2450 mm
- Measurements height: 2700 mm
- Machine weight: 12500 kg
Table
- Table load: 2000 kg
Additional Information
- Technical Machine Benefits:
- - Electromagnetic table dimensions (w x l): 450 x 3000 mm
- - Max grinding length: 3000 mm
- - Max grinding width: 500 mm
- - Max grinding height with new grinding wheel: 450 mm
- - Max grinding height with worn grinding wheel: 540 mm
- - Area of electromagnetic clamping plates: 1000 x 450 mm
- - Number of electromagnetic clamping plates: 3 pcs.
- - Dimensions of grinding wheels: ⌀ 450 x 203 x 80 mm
- - Vertical travel of headstock slide: 465 mm
- - Horizontal travel of headstock column slide: 500 mm
- Qualitative Machine Benefits:
- - Cross travel of headstock slide: 500 mm
- - Longitudinal travel of table: 3000 mm
- - Number of t-slots: 3
- - T-slot spacing: 125 mm, width of t-slots: 16h7
- - Electro-automatic magnetic pole switch in electromagnetic plates
- - Arbor for balancing grinding wheels
- - Holder for grinding wheels
- - Thermoregulation of coolant and lubricating oil
- - Pump capacity for cooling: 100 l/min
- - Swing fields p=24 mm
- - The machine went through a major overhaul performed in 2002
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
