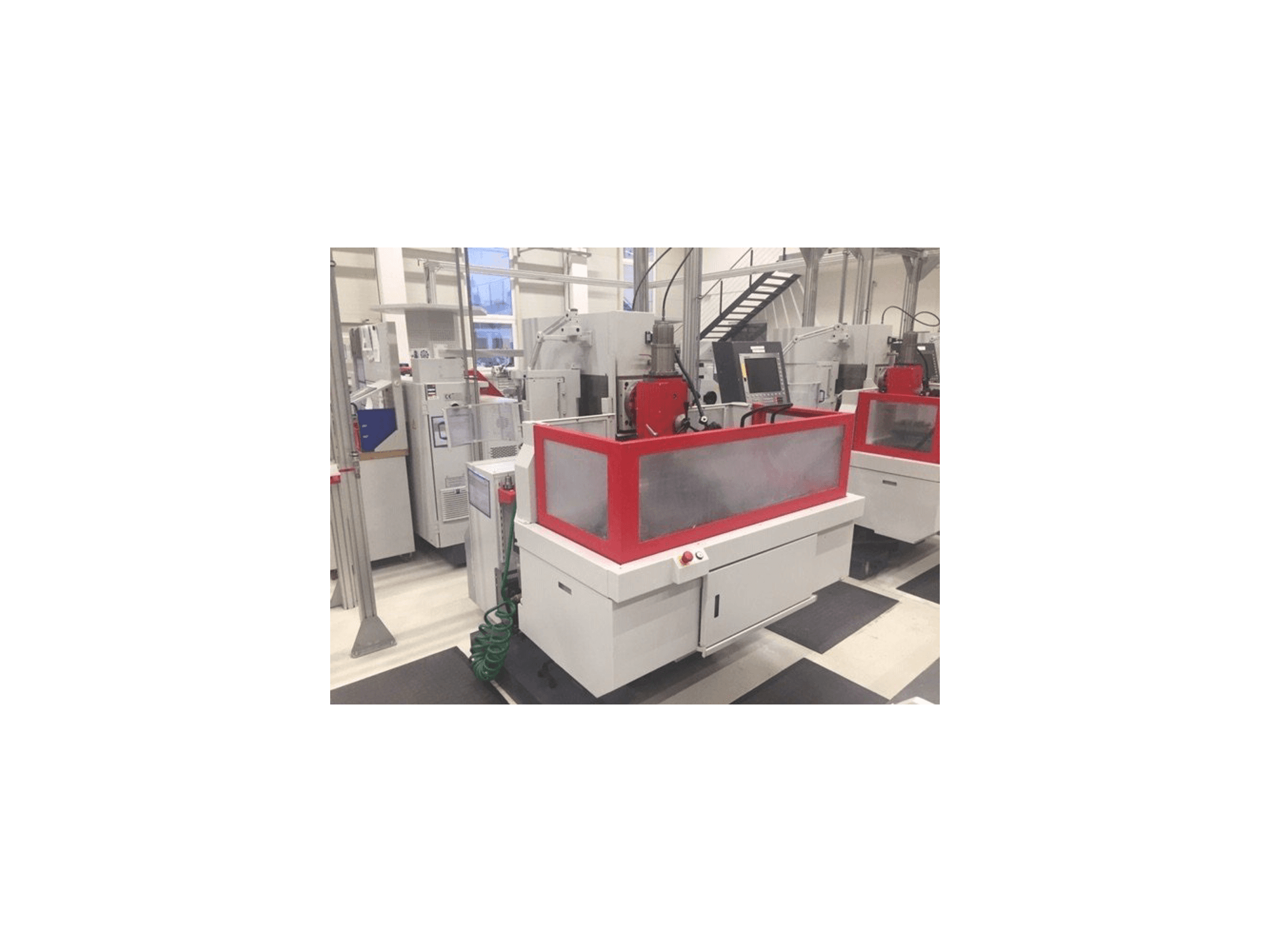

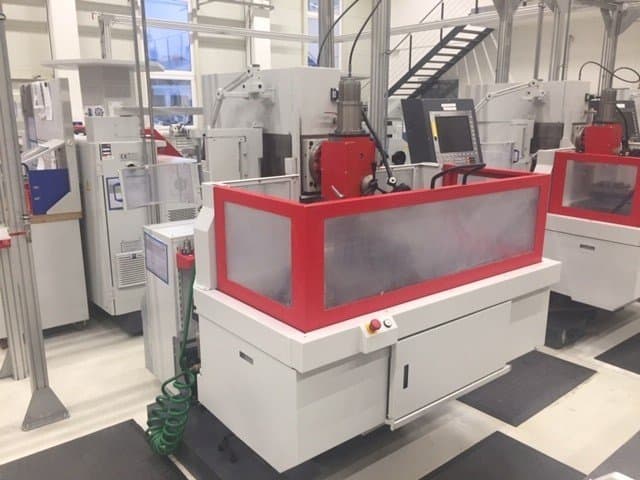

EMCO Emcomat FB-450 MC Milling Machine

This EMCO Emcomat FB-450 MC Milling Machine was built in the year 2016 in Austria and has been working for only 2500 hours. Operated through a HEIDENHAIN TNC 620 Control unit, this machine can work with a spindle speed range between 10 and 5000 rpm. It presents excellent conditions.

Overview

brand: EMCO
year: 2016
MODEL: Emcomat FB-450 MC
production hours: 2500
application type: Milling
Location: Austria
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - EMCO Emcomat FB-450 MC

General Data

Measurements width: 2030 mm
Measurements depth: 1980 mm
Measurements height: 1990 mm
Machine weight: 2300 kg

Control Unit

Model: TNC 620
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10 to 5000 1/MIN

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 800 mm
Outer width: 400 mm
Number of tslots: 8

Tools

Type of tool holder: SK40 DIN 69871

Media

Main electronic connection: 3x400 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Linear guidance
- - Very stable casted basement
- - Cooling sytem
Qualitative Machine Benefits:
- - Very little working time
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
