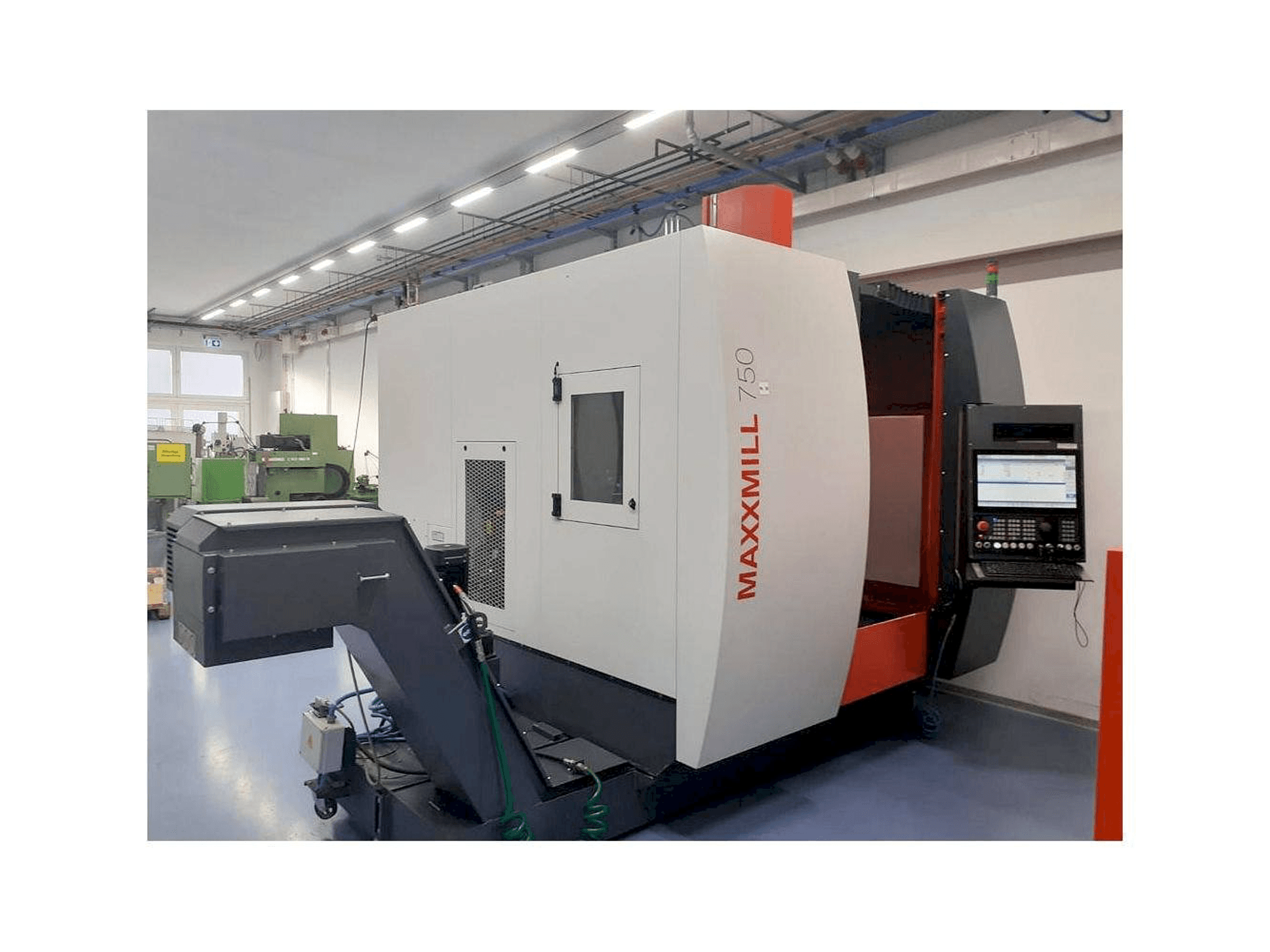

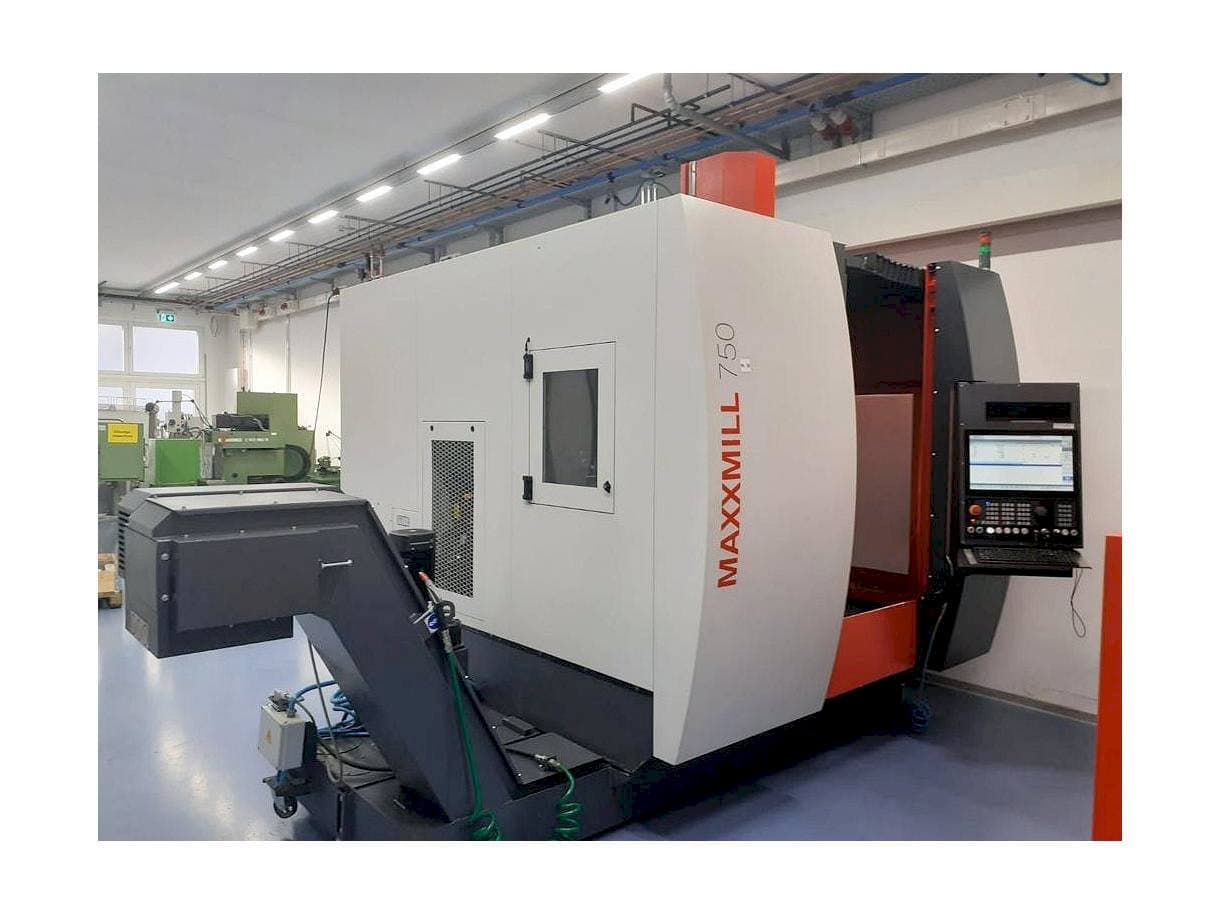

Emco Maxxmill 750 Vertical Machining center

This Emco Maxxmill 750 Vertical Machining Center was manufactured in the year 2018 in Italy. It is equipped with a SIEMENS SHOPMILL control unit and has a 3+2 axis. The machine has a spindle speed of 15000 rpm, is in very good condition, and is well maintained.

Overview

brand: EMCO
year: 2018
MODEL: Maxxmill 750
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - EMCO Maxxmill 750

General Data

Measurements width: 4177 mm
Measurements depth: 3500 mm
Measurements height: 3060 mm
Machine weight: 7900 kg

Control Unit

Model: SHOPMILL
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 3+2

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 750 mm
Outer width: 600 mm

Tools

Slots in storage: 40
Max weight: 8 kg
Max tool diameter: 80/125 mm
Max tool length: 250 mm
Type of tool holder: DIN 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B axis +/- 100 degress
- - C axis 360 degrees (0. 001 degree increment)
- - Min - max height under spindle 175 - 675mm
- - Rapid feed rates 30m/minute
- - Spindle motor power 20kw
- - Swarf conveyor, coolant, interlocked guards, low volt light
Qualitative Machine Benefits:
- - Very good condition with low hours!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
